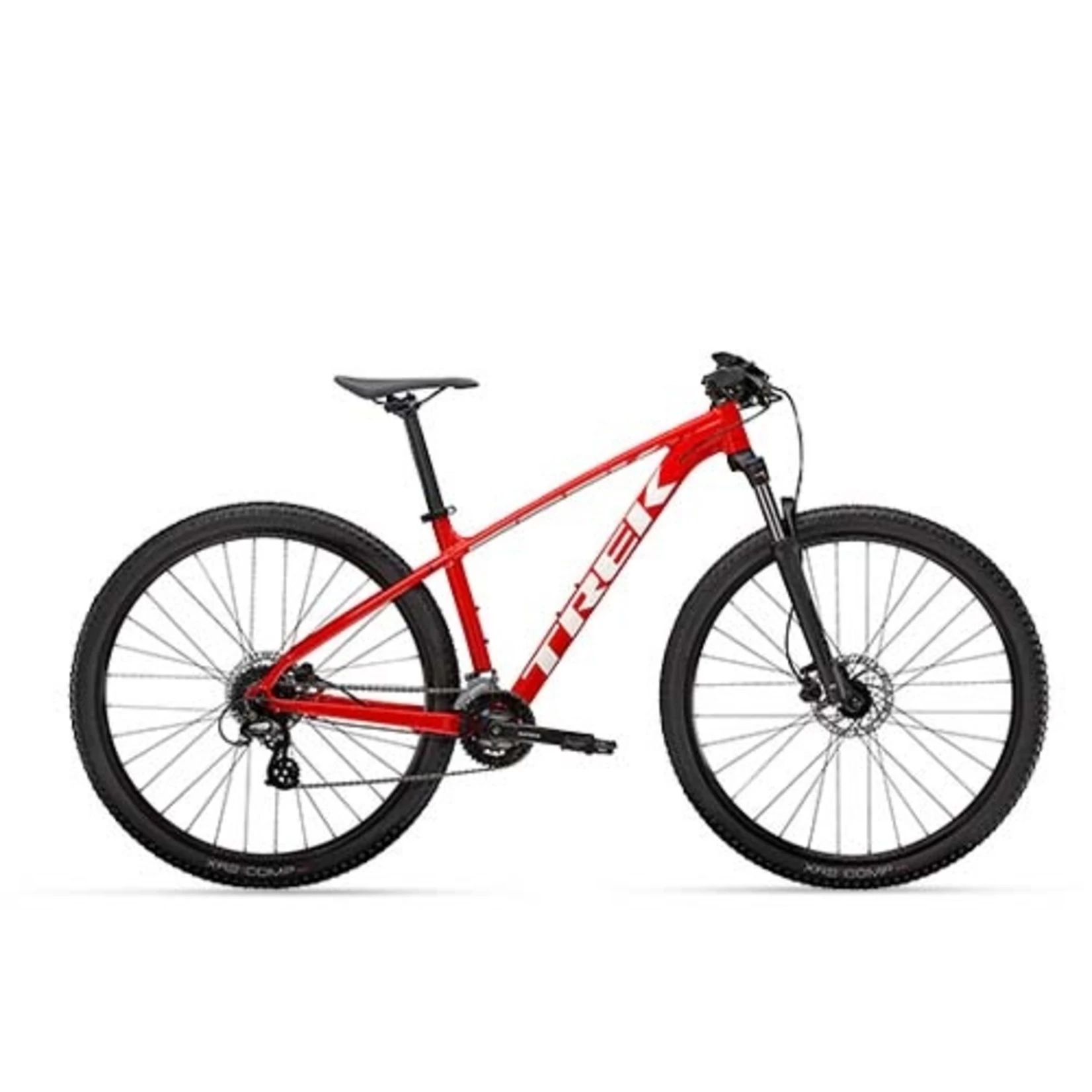

2022 TREK MARLIN 5 RADIOACTIVE RED
Original price was: $348.00.$95.99Current price is: $95.99.
- 100% Quality Promise
- Quick responses, top-notch service.
- Sustainable materials, for a better tomorrow.
- Quality You Can Count On
ABOUT:
Marlin 5 is a trail-worthy daily rider that’s perfectly suited for everyday adventures, on and off the trail. A suspension fork, 2×8 drivetrain, and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
It’s right for you if…
You’re new to the trail and you’re looking for a real mountain bike that doubles as a commuter—and you want it all at an exceptional value.
The tech you get

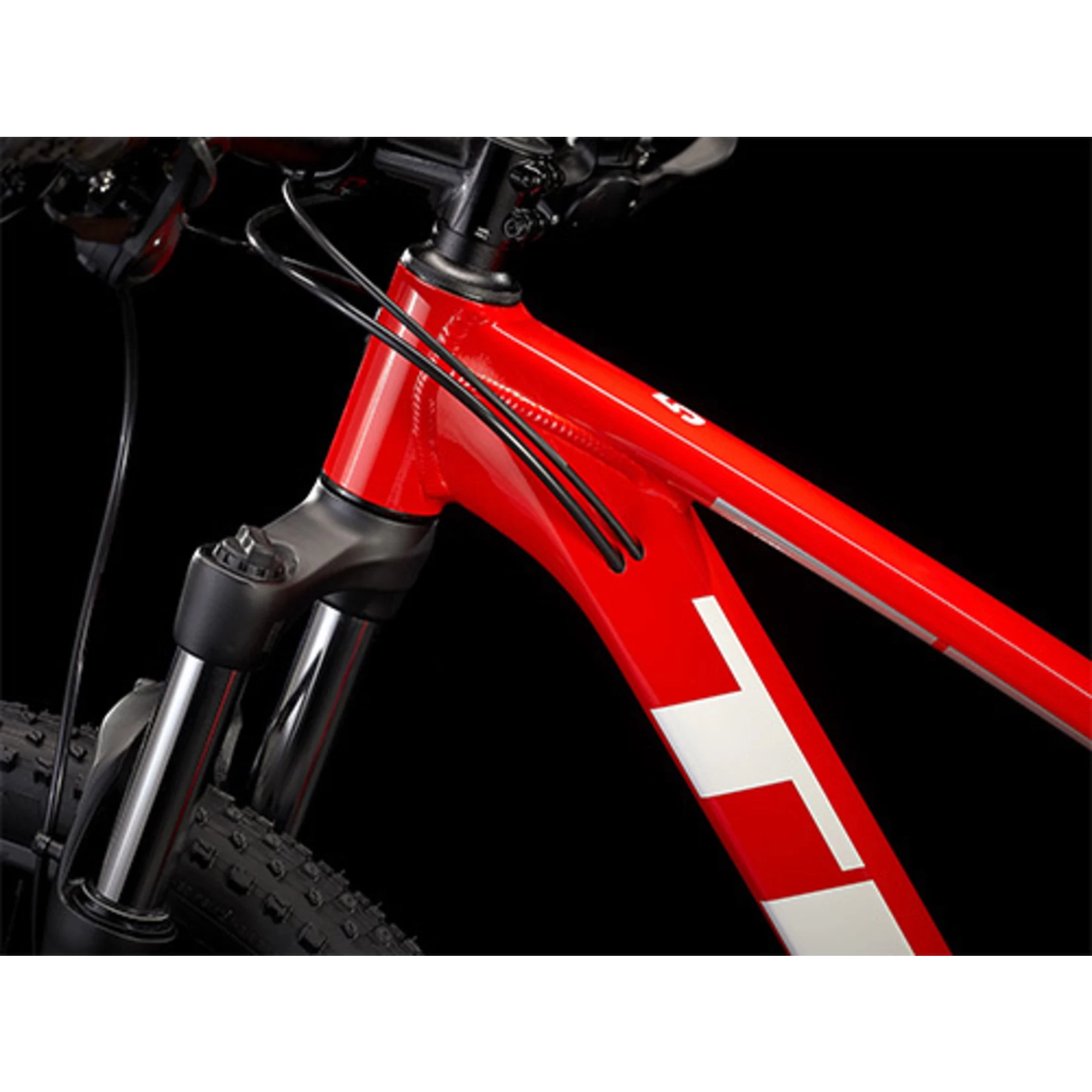

A lightweight aluminum frame with internal routing to protect your cables and add to the bike’s sleek look, 2×8 drivetrain, a wide range of gearing so you always have the right gear for your terrain, powerful hydraulic disc brakes, and a terrain-smoothing suspension fork with a lockout.
The final word
Marlin 5 is a great ride for all your adventures. But it’s also versatile, and Marlin 5 is a popular ride on college campuses because the rack and kickstand mounts make it easy to accessorize and haul a load.
Why you’ll love it
- It’s a real mountain bike that’s also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface
- Smaller frame sizes (XXS, XS, and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
- Marlin models in XXS through S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount

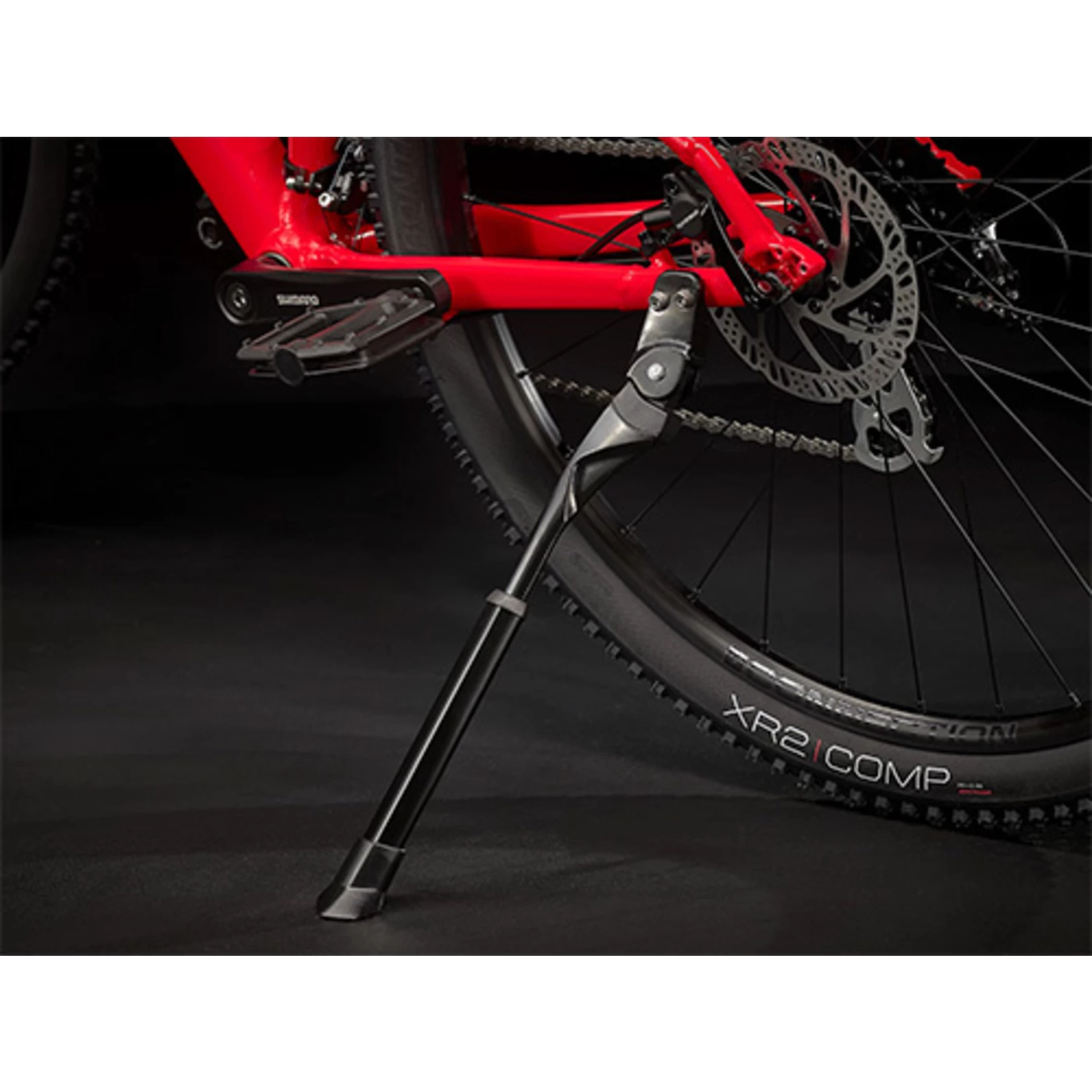

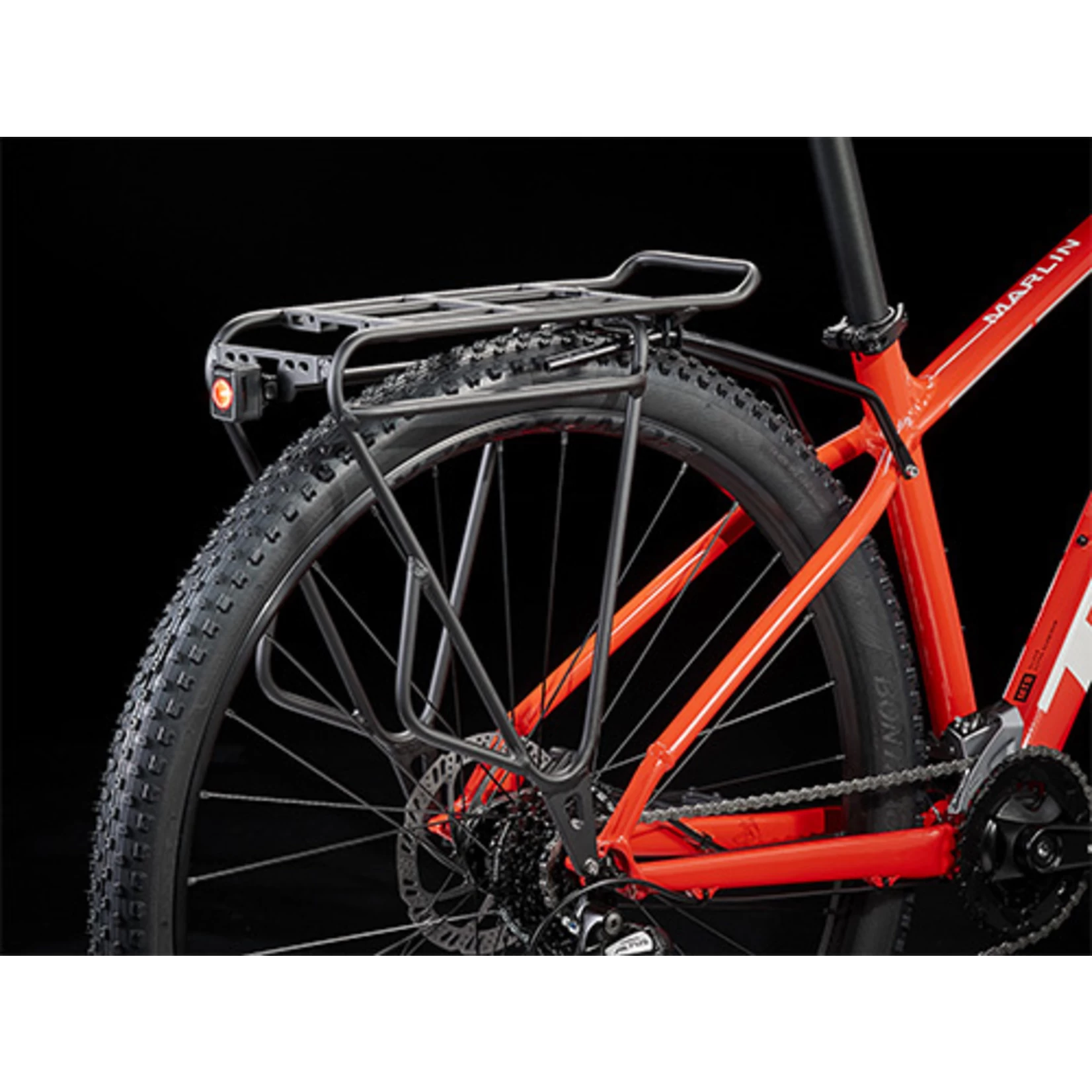

- Rack and kickstand mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
- Like every model in the Marlin family, it’s backed by Trek’s lifetime warranty
Â
Frameset
| Frame | Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|---|---|

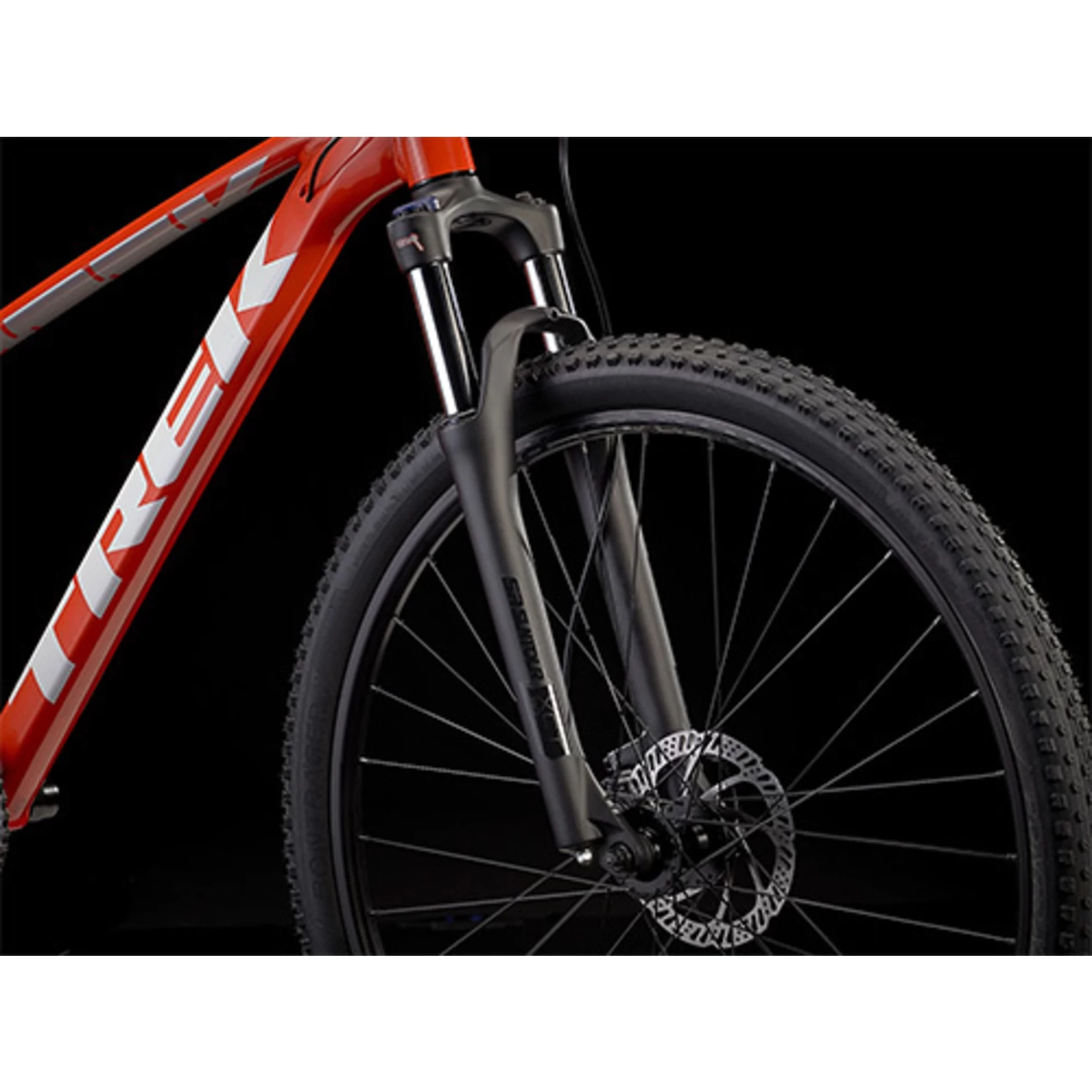

| *Fork | Size:Â XXS SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel, 26” wheel |
| Size:Â XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5” wheel, 100mm QR, 80mm travel | |
| Size:Â S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5” wheel, 100mm QR, 100mm travel | |
| Size:Â M , ML , L , XL , XXL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29” wheel, 100mm QR, 100mm travel | |
| Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Â
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR |
| *Rim | Size:Â XXS Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, schrader valve |
| Size:Â XS , S , M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve | |
| Spokes | 14g stainless steel |

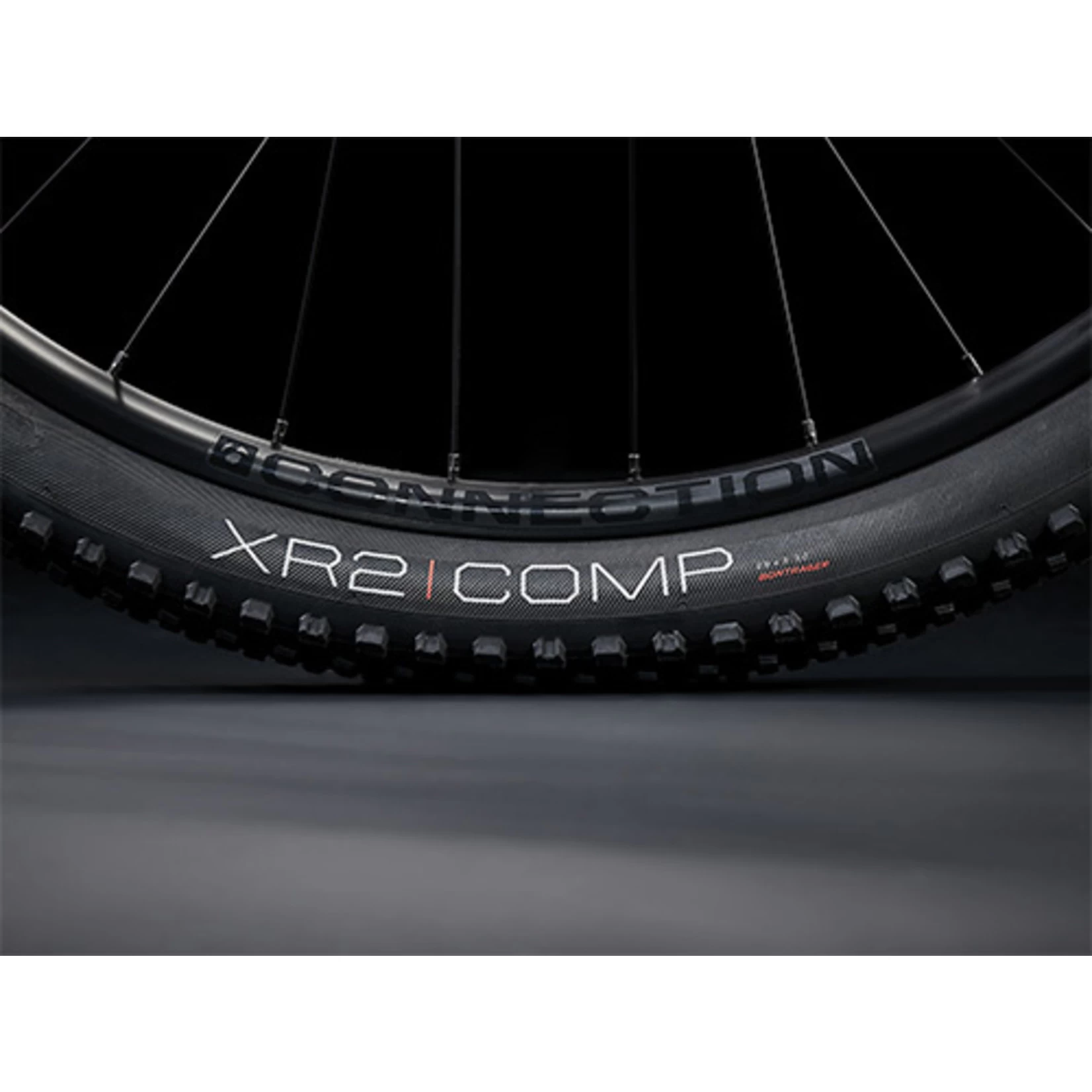

| *Tire | Size:Â XXS Bontrager XR2 Comp, wire bead, 30 tpi, 26×2.20” |
| Size:Â XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20” | |
| Size:Â M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20” | |
| Max tire size | Frame: 29×2.20″ (XS & S: 27.5×2.4″) Fork: See manufacturer |
Â
Drivetrain
| Shifter | Shimano Altus M315, 8 speed |
|---|---|
| Front derailleur | Shimano Altus M315, 34.9mm clamp, top swing, dual pull |

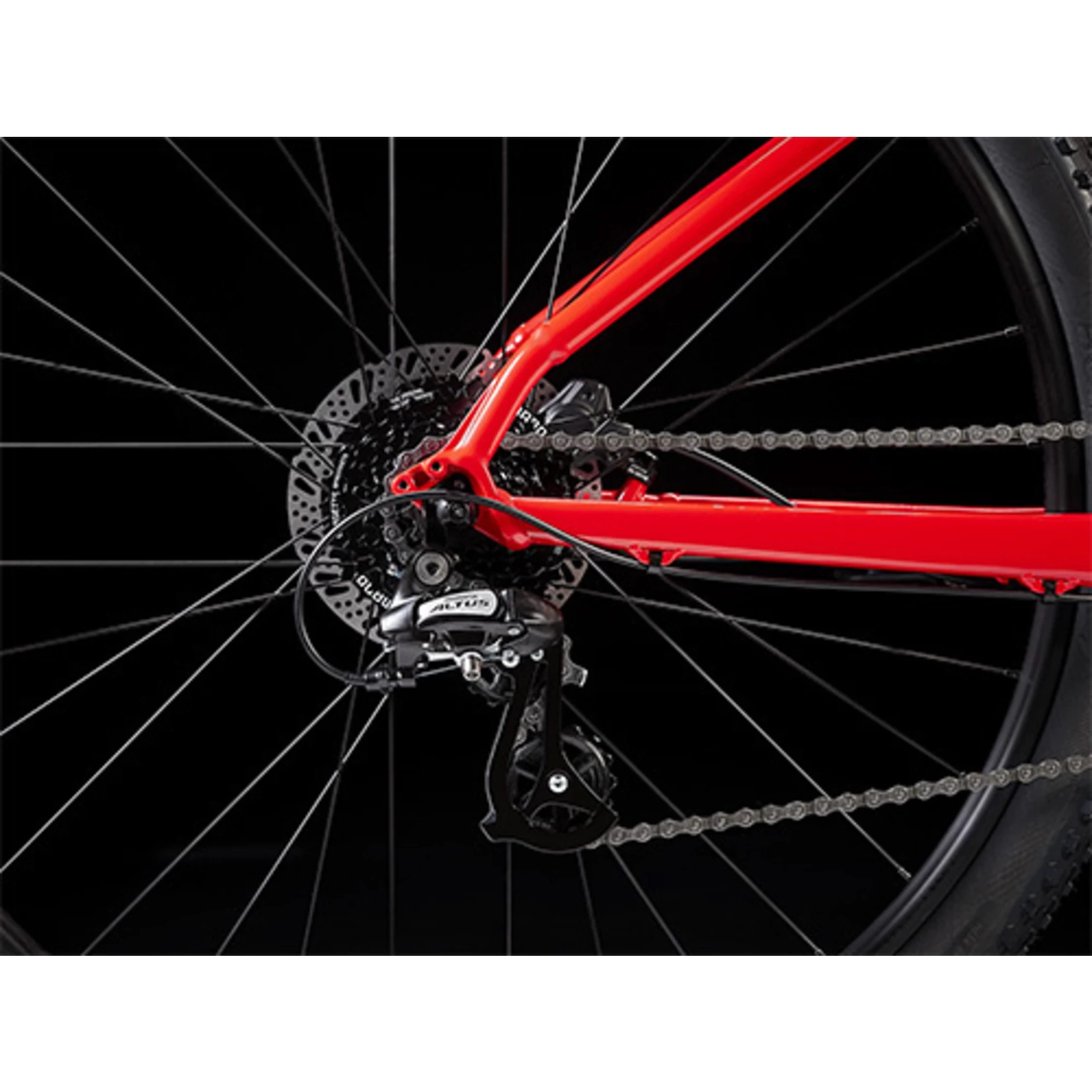

| Rear derailleur | Shimano Altus M310 |

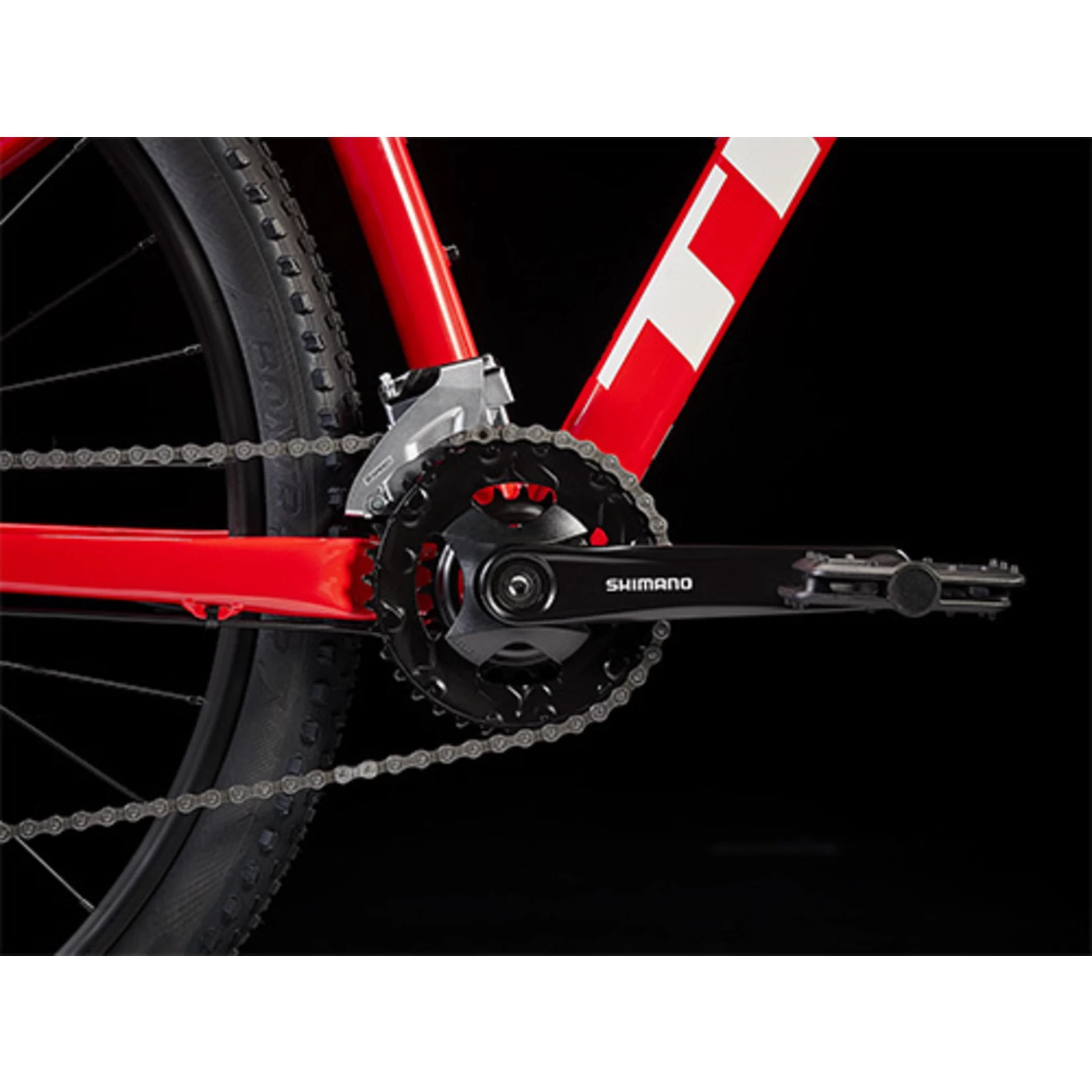

| *Crank | Size:Â XXS Prowheel TM-CY10, 36/22, 160mm length |
| Size:Â XS , S , M Shimano M315, 36/22, 170mm length | |
| Size:Â ML , L , XL , XXL Shimano M315, 36/22, 175mm length | |
| Bottom bracket | Sealed cartridge, 73mm |
| Cassette | Shimano HG200, 12-32, 8 speed |
| Chain | KMC Z8.3, 8 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 1x/2x: 34T, 3x: 42T |
Â
Components
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost | Size:Â XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length |
| Size:Â XS , S , M Bontrager alloy, 31.6mm, 12mm offset, 330mm length | |
| Size:Â ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length | |

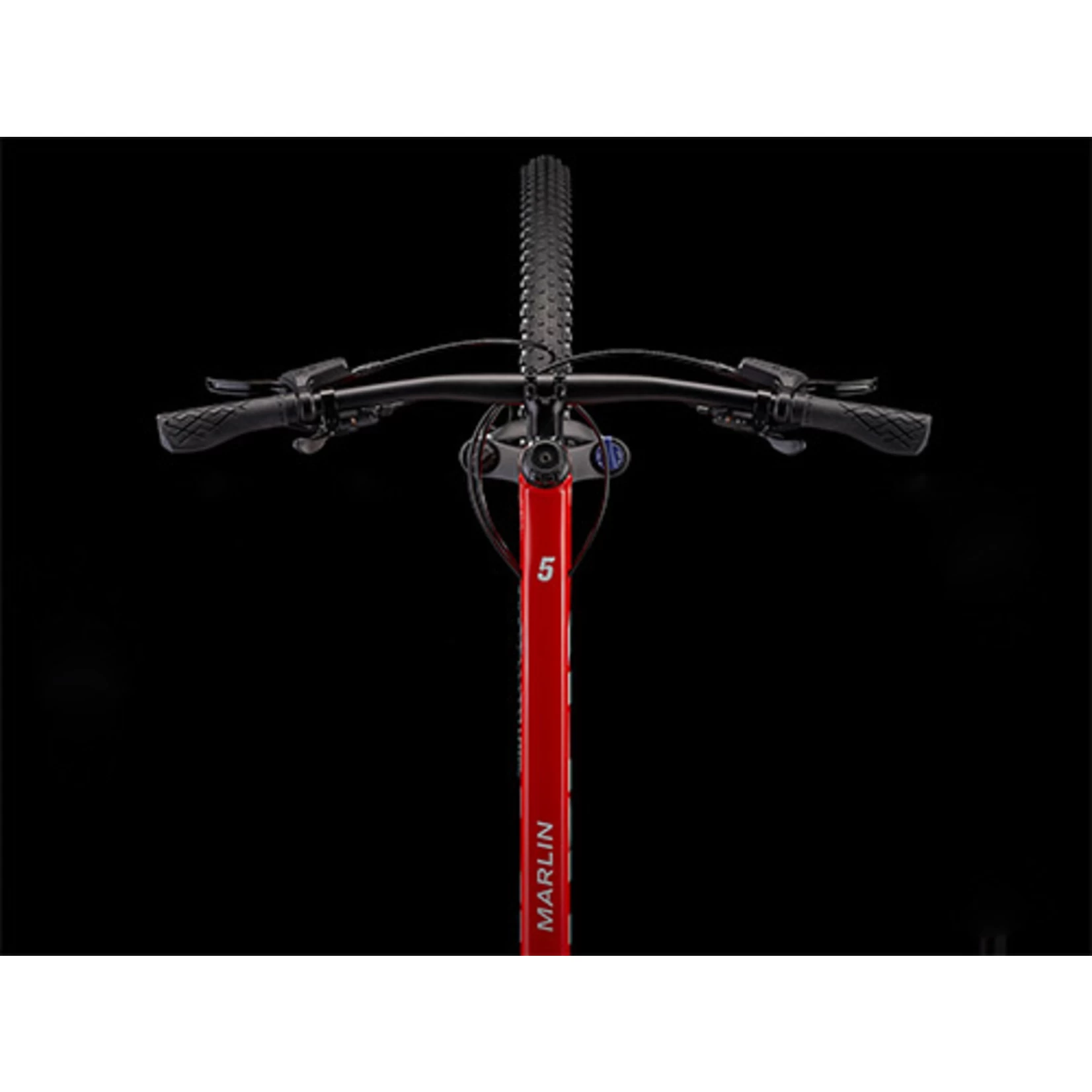

| *Handlebar | Size:Â XXS , XS Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Size:Â S , M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width | |
| Grips | Bontrager XR Endurance Comp, lock-on |
| *Stem | Size:Â XXS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length |
| Size:Â XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length | |
| Size:Â S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length | |
| Size:Â M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length | |
| Size:Â ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length | |
| Size:Â XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length | |
| Headset | Semi-integrated, 1-1/8” |

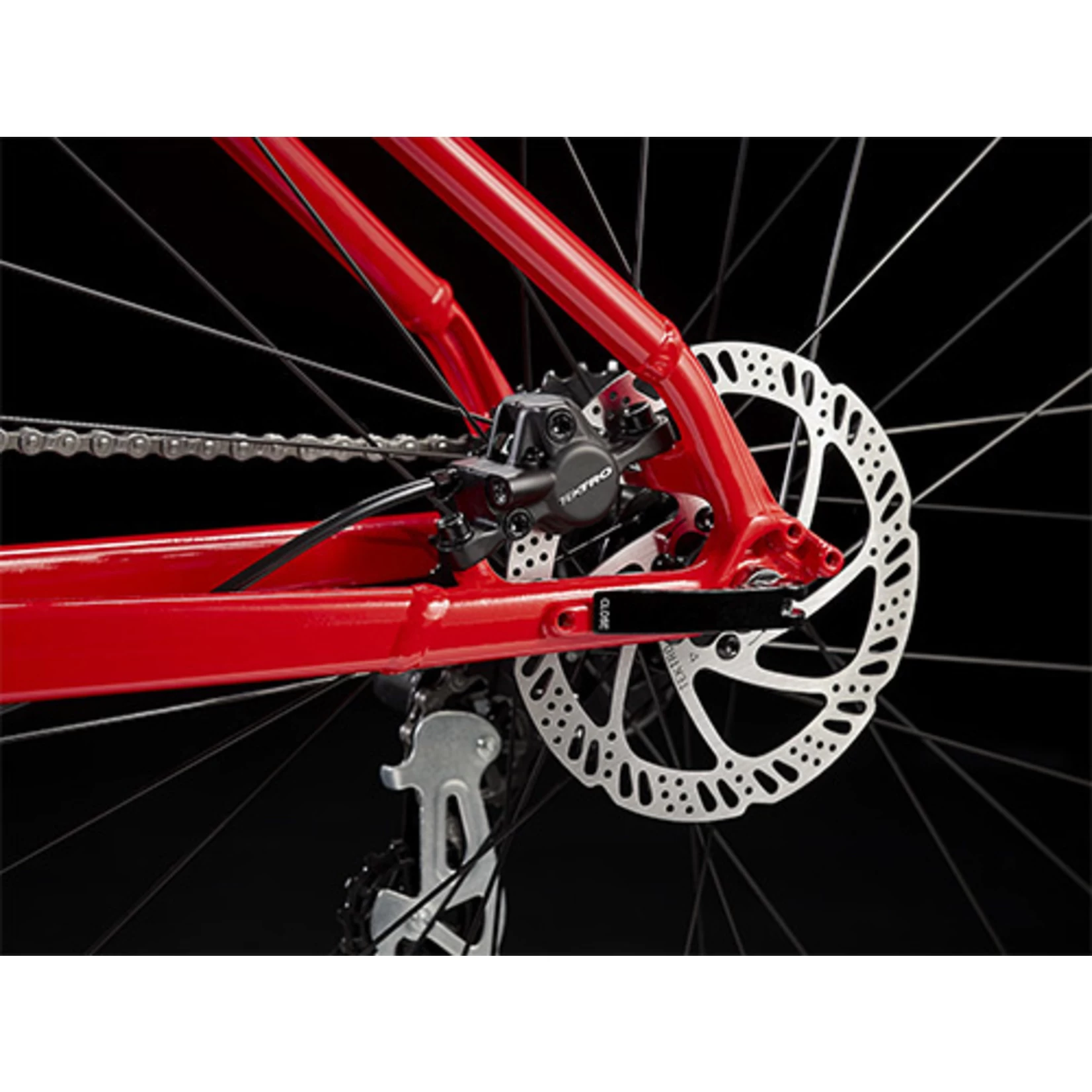

| Brake | Tektro HD-M275 hydraulic disc |
Â
Weight
| Weight | M – 13.97 kg / 30.81 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Size | MEDIUM, LARGE, X-LARGE |
|---|
