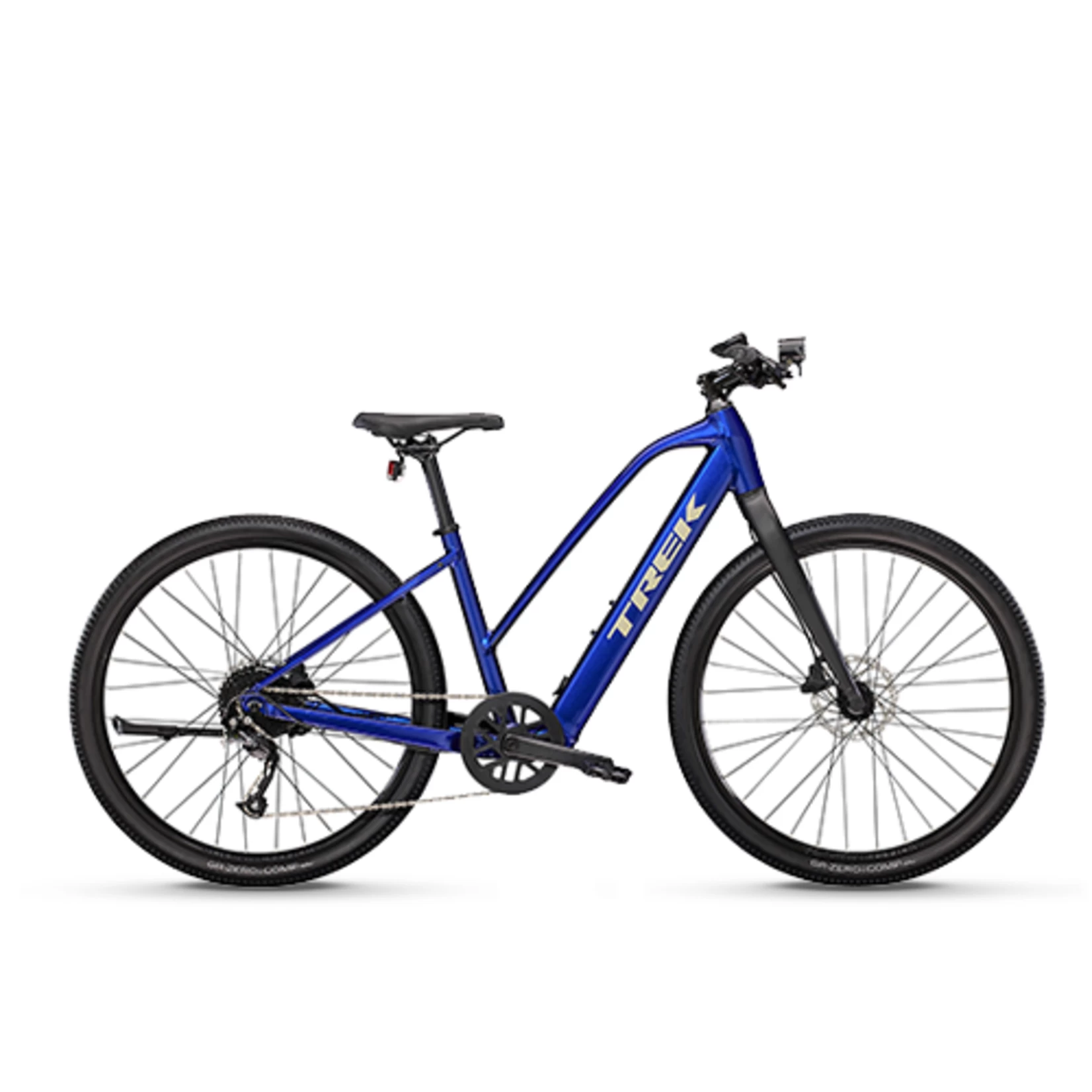

2023 DUAL SPORT+ 2 STAGGER

The Dual Sport+ 2 Stagger is a lightweight and capable hybrid electric bike that’s designed for adventure on the road and light trails. It has an intuitive and natural feeling pedal-assist system that makes exploring your surroundings more fun and cruising up hills a breeze. Plus, stiff wheels and wide tyres give you confidence on varied terrain.

You want a lightweight, simple-to-use hybrid e-bike that brings a capable boost to daily errands and rides as well as weekend adventures.

A lightweight aluminium frame with a stagger design that’s easier to hop on and off, Trek’s proprietary pedal-assist system with a hub motor (250 W, 40 Nm) that assists up to 20 mph (25 km/h in Europe) and a 250 Wh battery for a range of up to 55 kilometres per charge. Plus, stiff 650b wheels and wide 50c tyres for capability and comfort on varied terrain, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery and a kickstand.

All the capability and confidence of Dual Sport, with an electric boost that helps you do more! The Dual Sport+ lets you haul groceries uphill with ease and adventure further than you thought possible.

This is our lightest hybrid e-bike, making it easier to manoeuvre while parking and less of a pain to carry up stairs
The pedal-assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
Stiff wheels and wide tyres give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
It’s easy to accessorise with mudguards and a rear rack to carry everything you need
Double your range with a 250 Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame

SPECIFICATIONS:

FRAMESET

FRAME Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing
FORK DS+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

WHEELS

HUB FRONT Formula DC-20, alloy, 6-bolt, 5×100 mm QR
HUB REAR G2 hub drive
RIM Bontrager Connection, double-wall, 32-hole, 20mm width, presta valve
SPOKES 14g stainless
TIRE Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50c
MAX TIRE SIZE 27.5×2.0″ with or without fenders

DRIVETRAIN

SHIFTER Shimano Altus M2010, 9-speed
REAR DERAILLEUR Shimano Altus M2000, long cage
CRANK Size: S, M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length
BOTTOM BRACKET Torque sensor, T47 threaded, 122.5 mm spindle
CASSETTE Shimano HG200, 11-36, 9-speed
CHAIN KMC X9
PEDALS Bontrager City pedals
MAX. CHAINRING SIZE 42T

COMPONENTS

SADDLE Bontrager Sport Women’s
SEATPOST Size: S, M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
HANDLEBAR Size: S, M
Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Size: L
Bontrager alloy, 31.8mm, 15mm rise, 690mm width
GRIPS Bontrager XR Endurance Comp, lock-on
STEM Size: S, M
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: L
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 100mm length
BRAKE ROTOR Shimano RT26, 6-bolt,160mm
BRAKE Shimano hydraulic disc, MT200 lever, UR300 caliper

ACCESSORIES

BATTERY 250 Wh
CHARGER 2A, 42V output, 100V-240V AC input
CONTROLLER Bluetooth display
LIGHT Size: S, M, L
Herrmans MR4-E Frontlight, 40LUX, 120 lumen LED. 6-12 VDC. Without Bracket. With 50mm Power-in cable. Without Power-out cable. With Reflector (white)
KICKSTAND Alloy, rear mount

WEIGHT

WEIGHT M – 17.28 kg / 38.1 lbs
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
