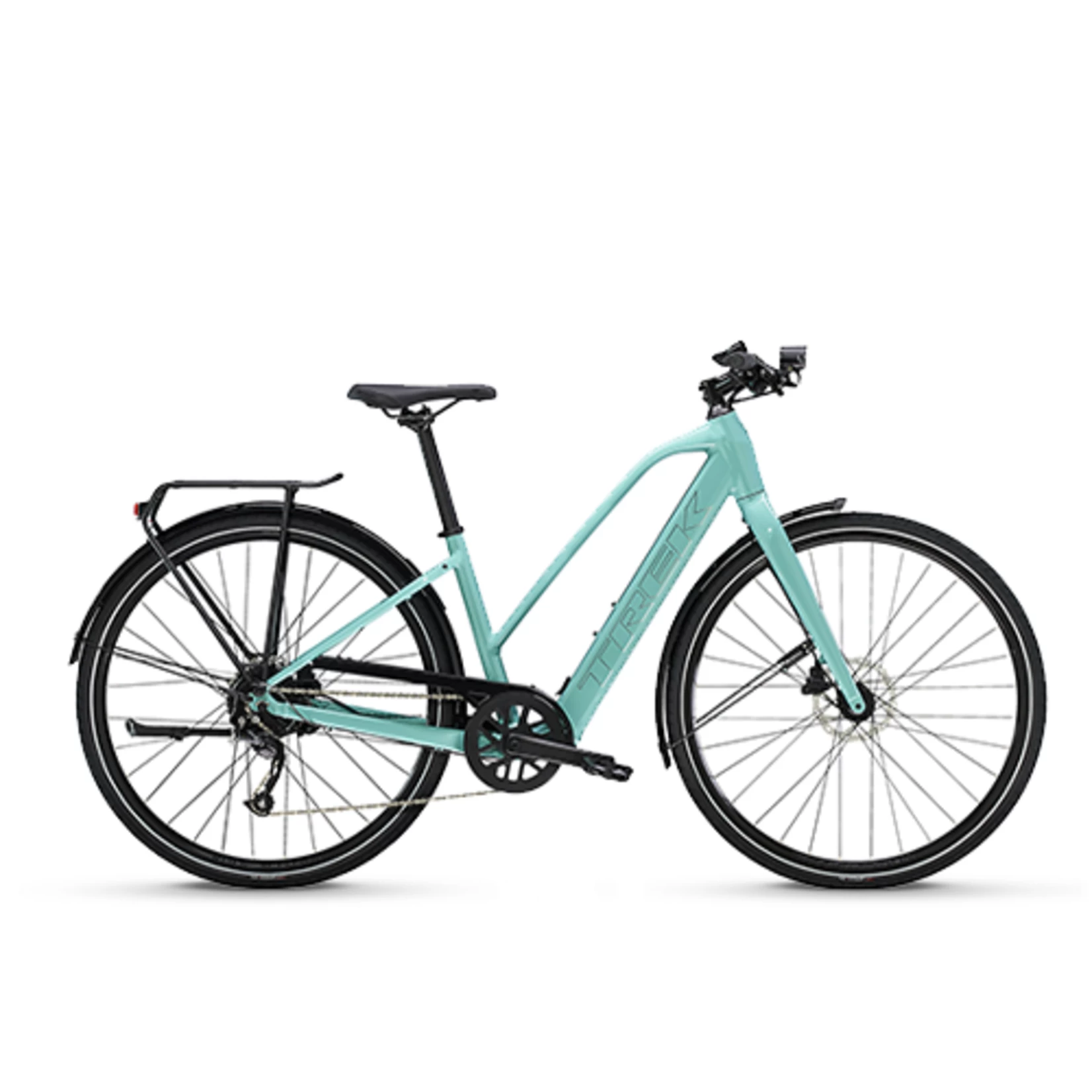

Name: 2023 FX+ 2 STAGGER BLUE SAGE
SKU: SKU-000-503LKbi
Availability: InStock

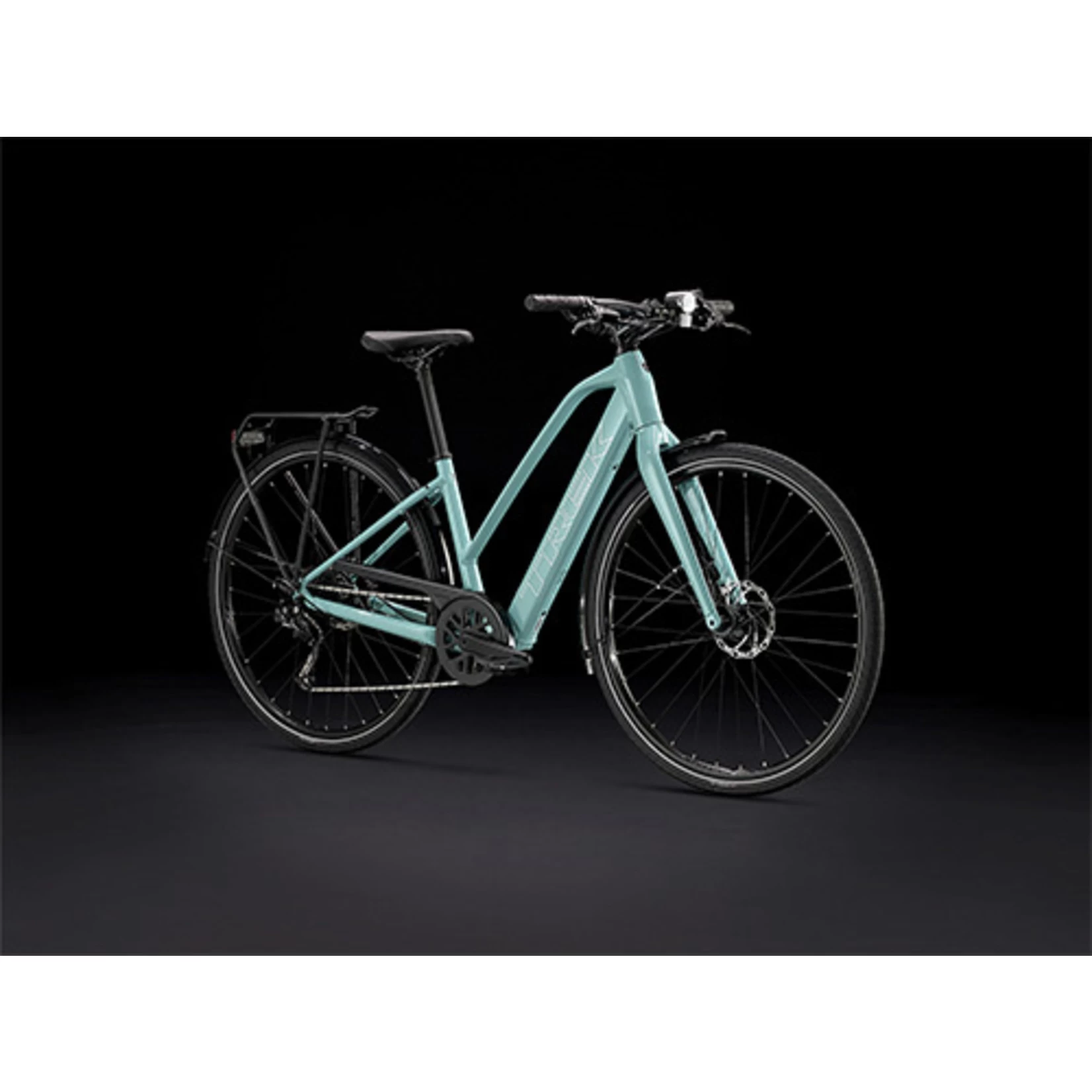

FX+ 2 Stagger is a lightweight city electric bike that’s designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and fenders add even more versatility to this bike.

You want a lightweight, simple to use city e-bike that brings a capable boost to daily errands, commutes, and joyrides around your city.

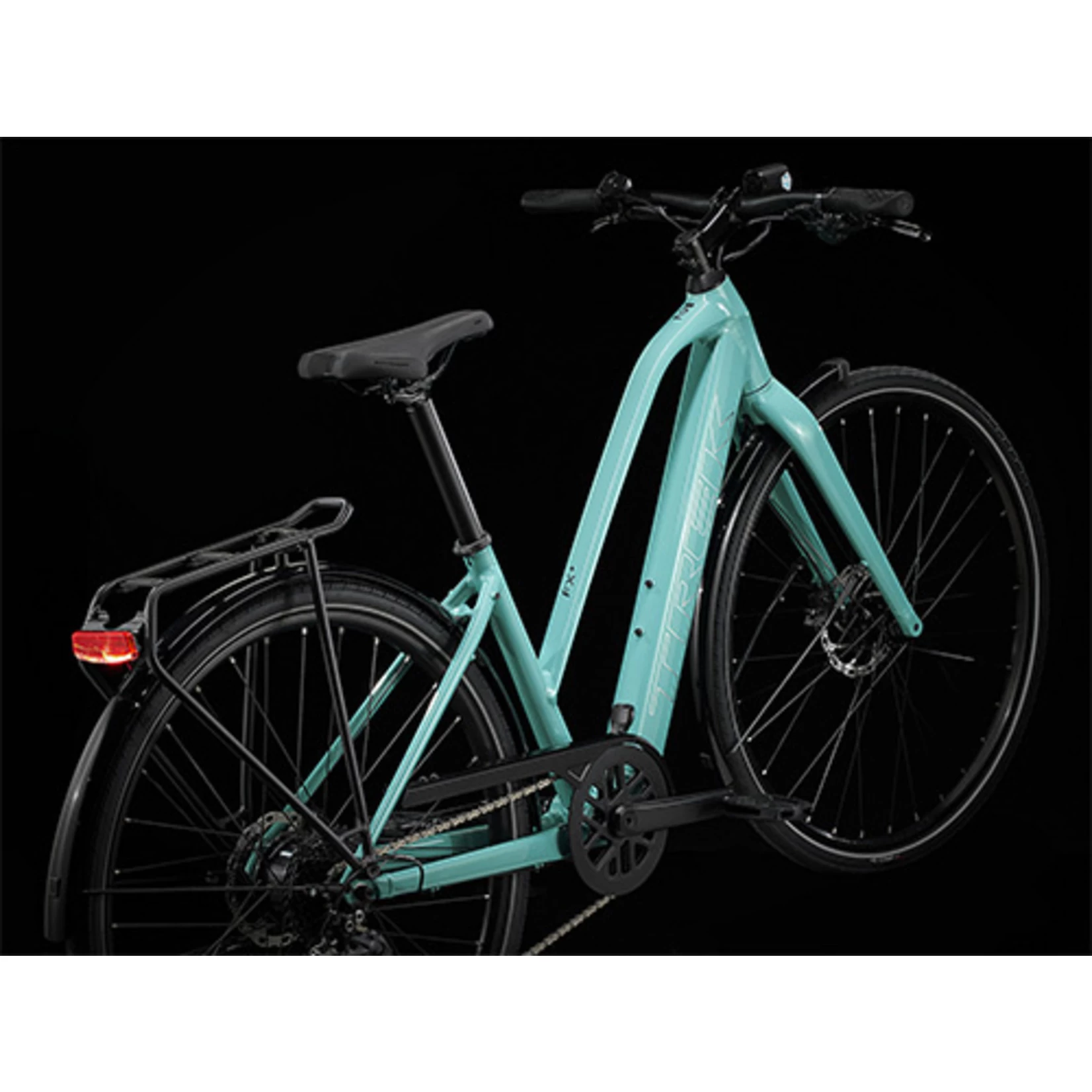

A lightweight aluminum frame with a stagger design that makes it easier to hop on and off, Trek’s proprietary pedal assist system with a hub motor (250W, 40Nm) that assists up to 20 mph and a 250Wh battery for a range of up to 35 miles per charge. Plus, fast 700c wheels, fast-rolling yet stable 40c tires with reflective sidewalls, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, a MIK-compatible rear rack, fenders, and a kickstand.

All the versatility and confidence of FX, with an electric boost that helps you do more and go farther! FX+ also comes with ride-ready accessories like a rack and fenders that make it easier to commute and run errands.

This is our lightest city e-bike, making it easier to maneuver while parking and less of a pain to carry up stairs

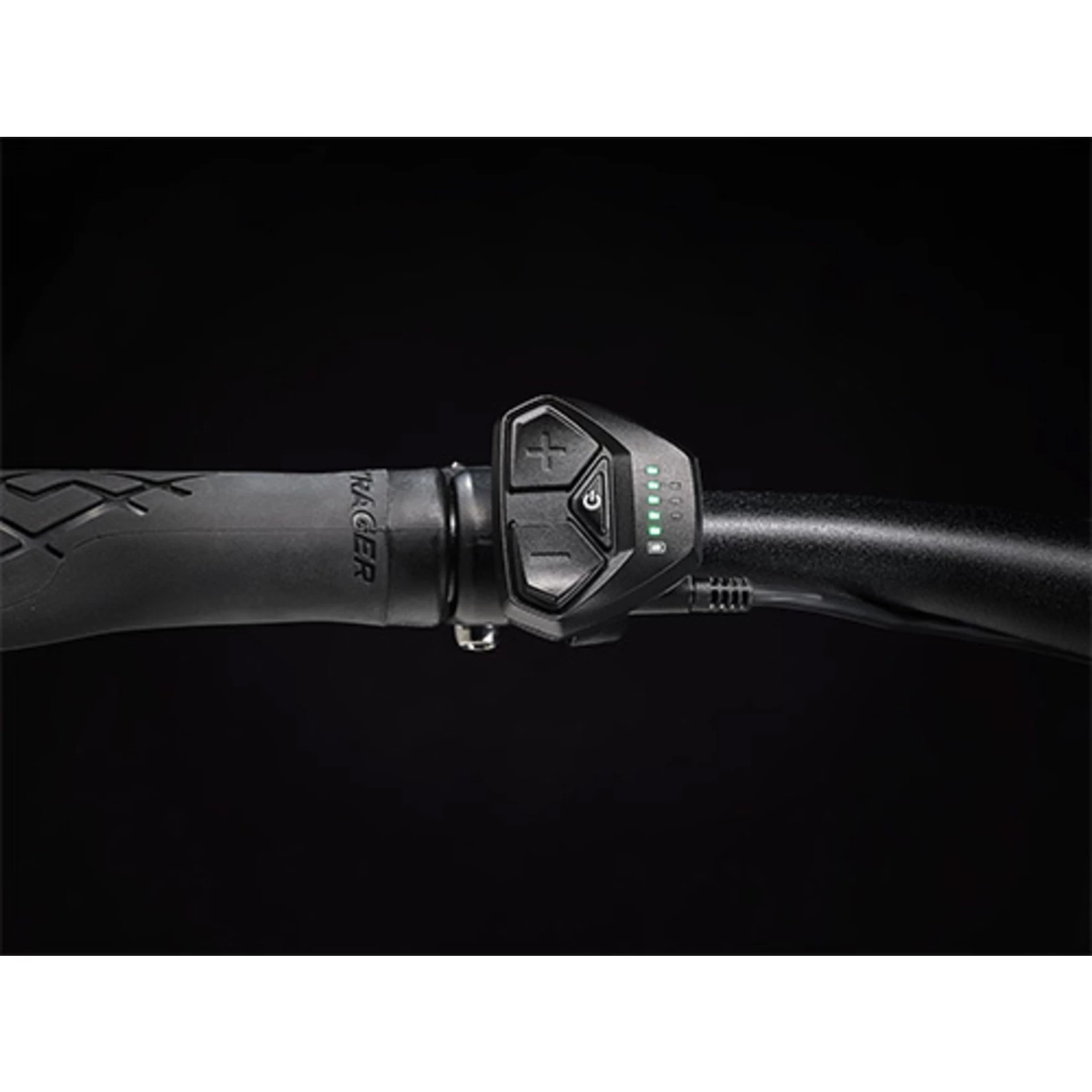

The pedal assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
It really is ready to roll, with included accessories like fenders, lights, and a MIK-compatible rear rack
Double your range with a 250Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame

SPECIFICATIONS

FRAMESET

FRAME Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing
FORK FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

WHEELS

HUB FRONT Formula DC-20, alloy, 6-bolt, 5x100mm QR

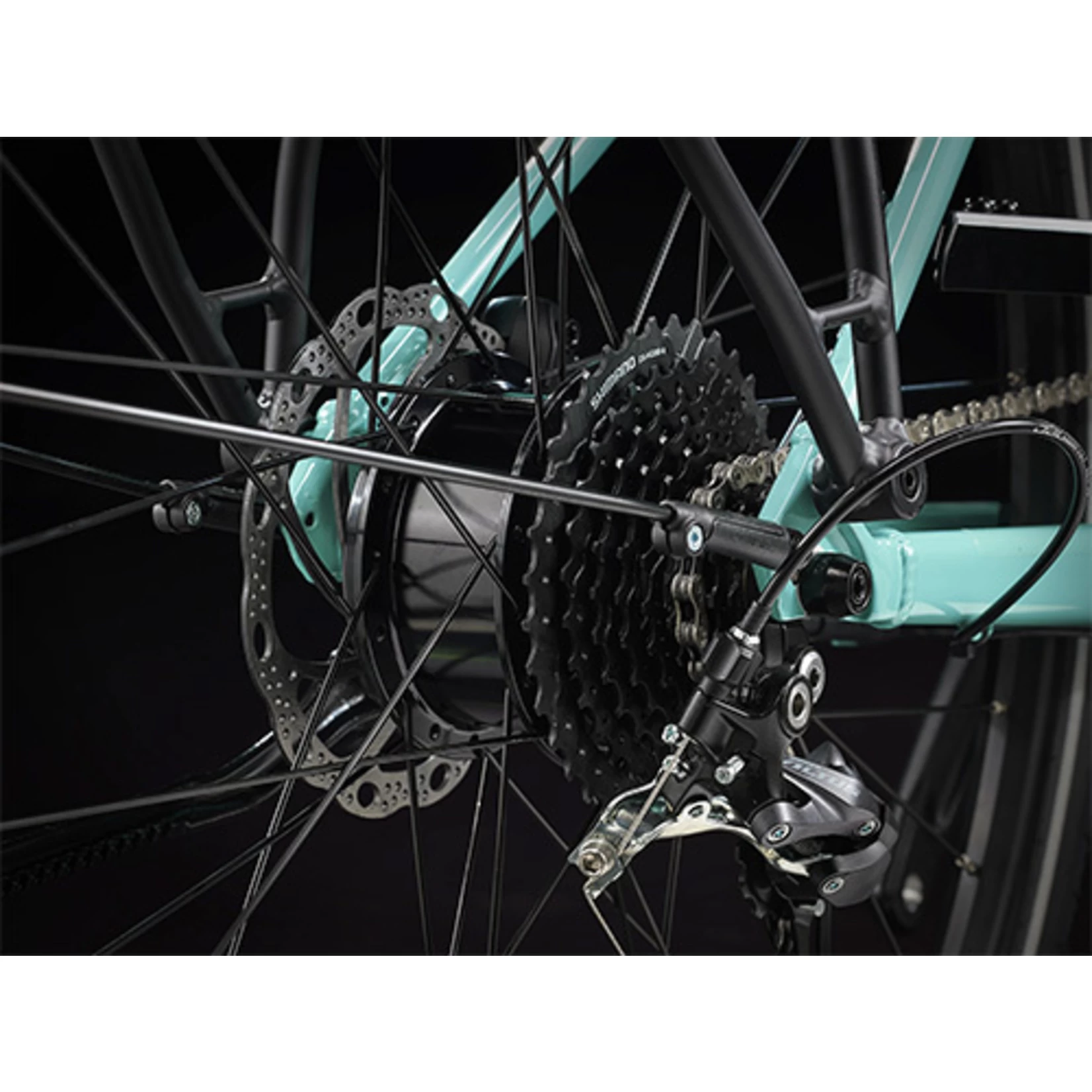

HUB REAR G2 hub drive
RIM Bontrager Connection, double-wall, 32-hole, Schrader valve
TIRE Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c
MAX TIRE SIZE 50c without fenders, 45c with fenders

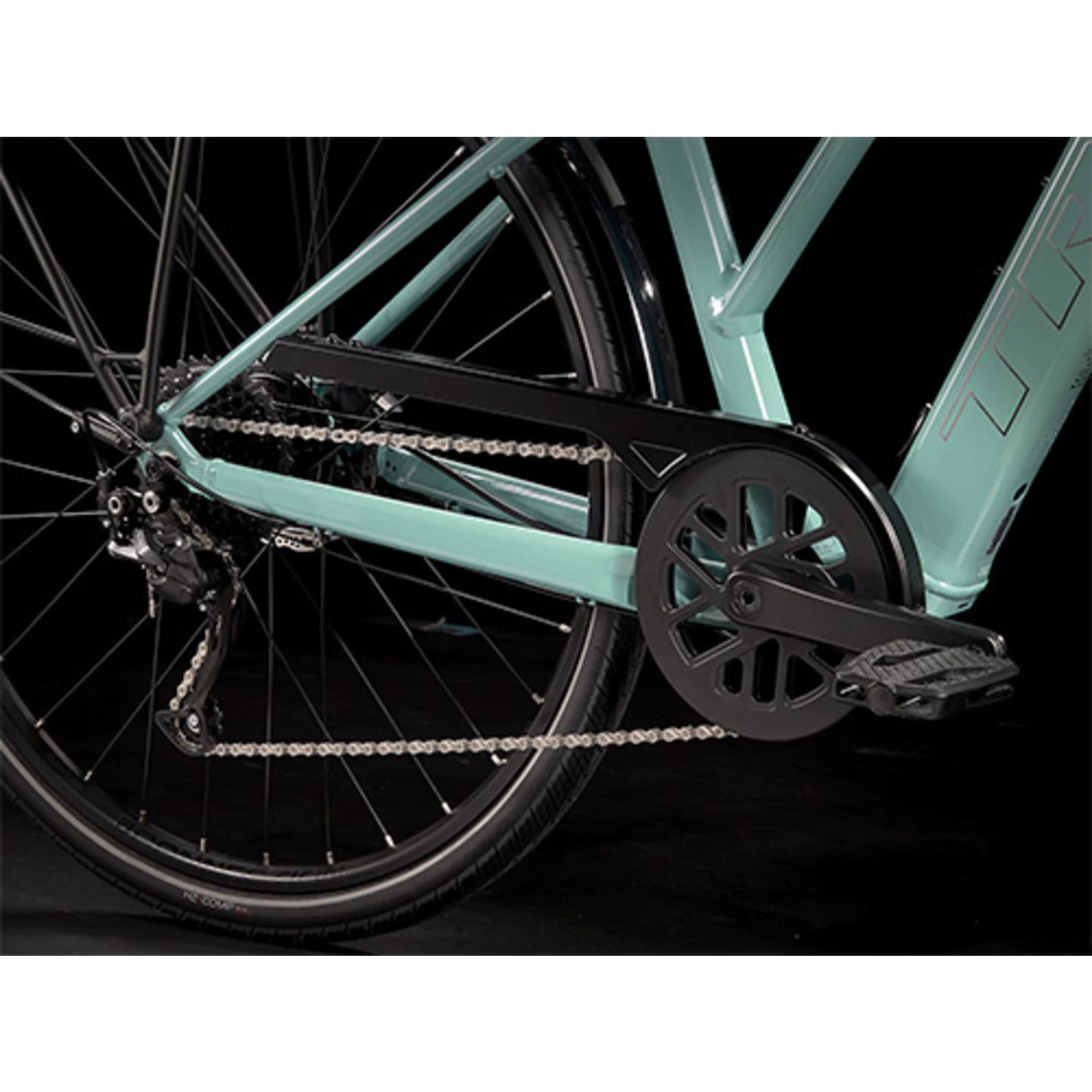

DRIVETRAIN

SHIFTER Shimano Altus M2010, 9 speed
REAR DERAILLEUR Shimano Altus M2000, long cage
CRANK Size: S, M
ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length
Size: L, XL
ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length
BOTTOM BRACKET Torque sensor, T47 threaded, 122.5mm spindle
CASSETTE Shimano HG200, 11-36, 9 speed
CHAIN KMC X9
PEDALS Bontrager City pedals
MAX. CHAINRING SIZE 42T

COMPONENTS

SADDLE Bontrager Sport Womens
SEATPOST Size: S, M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: L, XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
HANDLEBAR Size: S, M
Bontrager alloy, 31.8mm, 15mm rise, 660mm width
Size: L, XL
Bontrager alloy, 31.8mm, 15mm rise, 690mm width
GRIPS Bontrager XR Endurance Comp, lock-on
STEM Size: S, M
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: L, XL
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 100mm length
Headset Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom

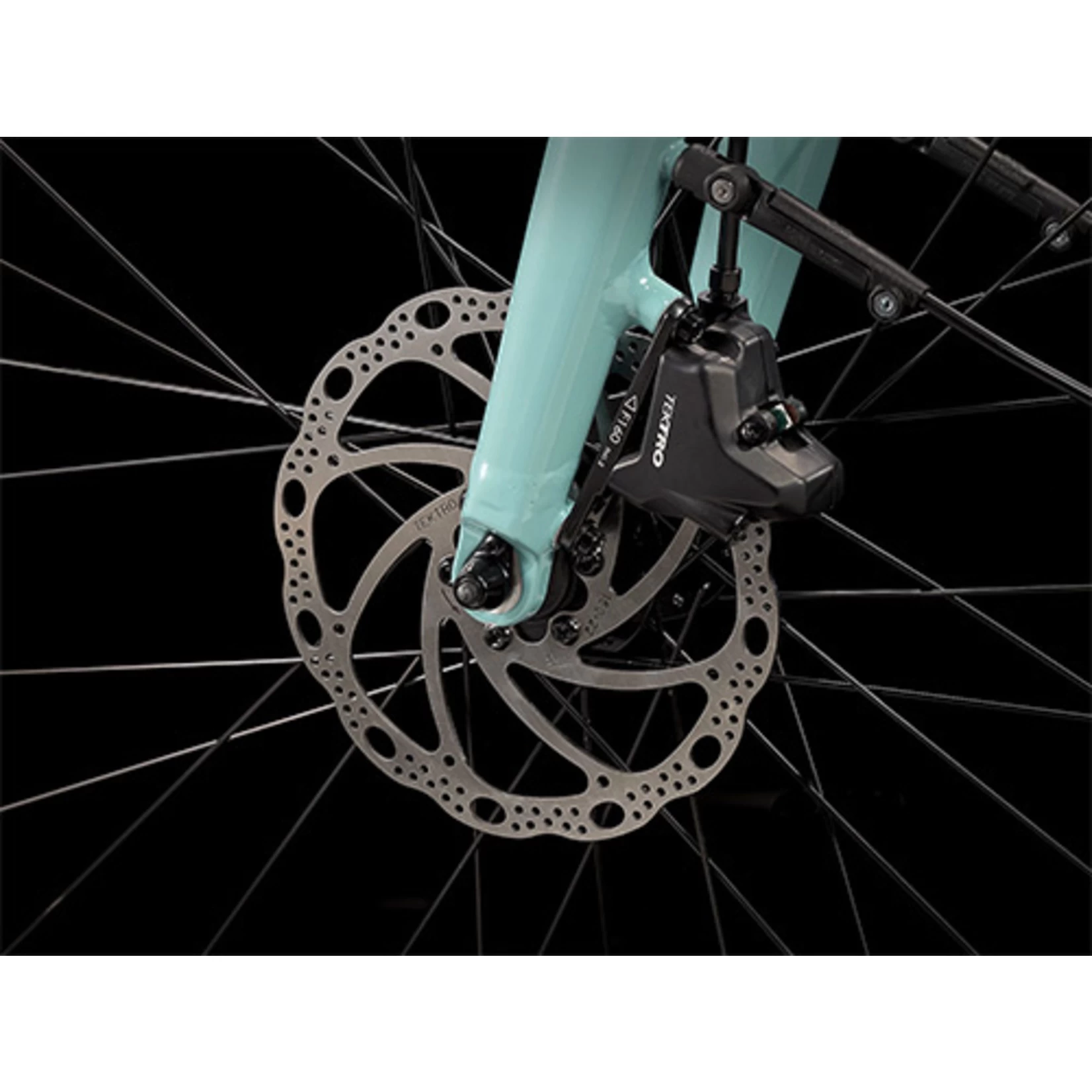

BRAKE Shimano hydraulic disc, MT200 lever, UR300 caliper
BRAKE ROTOR Shimano RT26, 6-bolt,160mm
ROTOR SIZE Max brake rotor size: 160mm

ACCESSORIES

BATTERY 250Wh
CHARGER 2A, 42V output, 100V-240V AC input
CONTROLLER Bluetooth display
LIGHT Size: S, M, L, XL

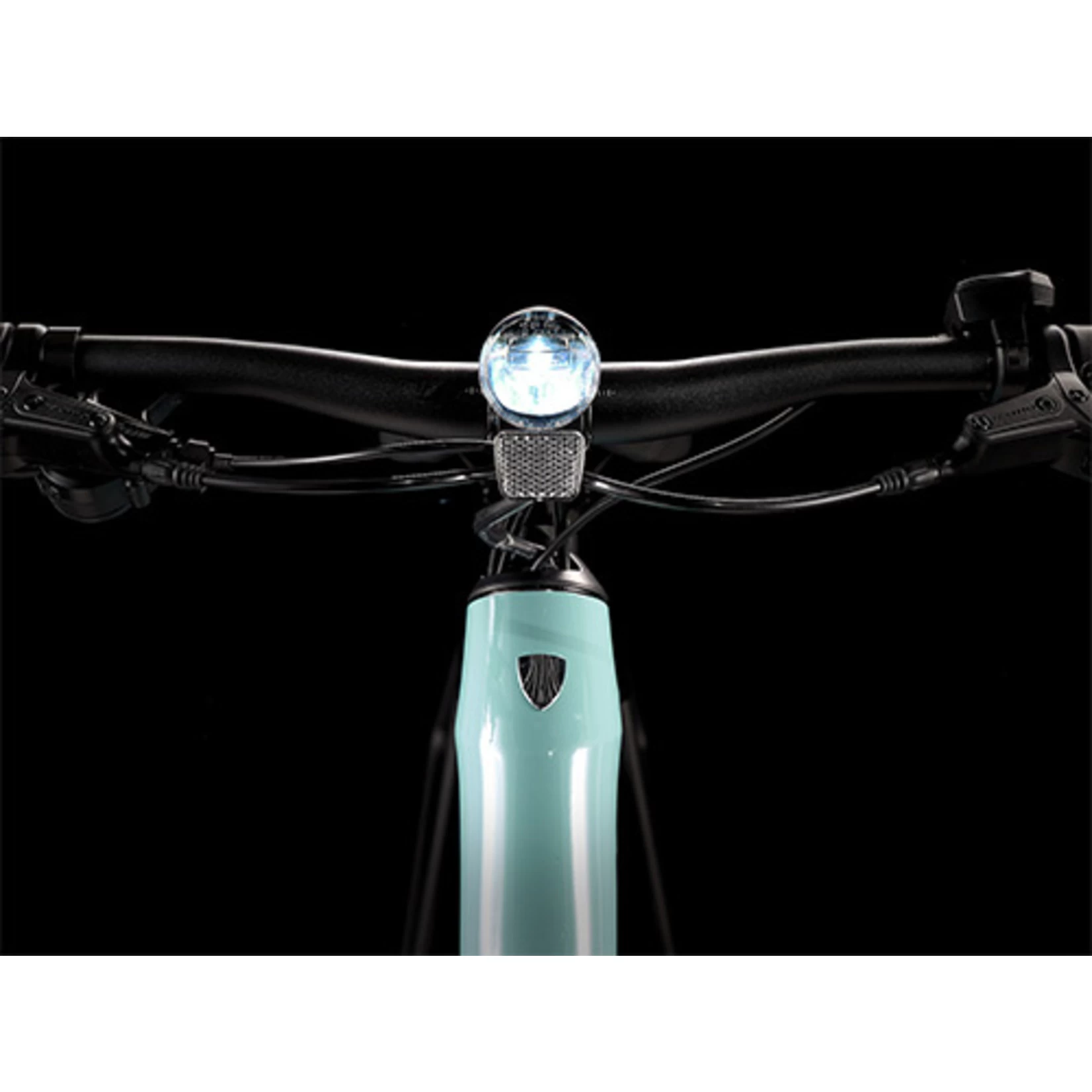

Herrmans MR4-E Frontlight, 40LUX, 120 lumen LED. 6-12 VDC. Without Bracket. With 50mm Power-in cable. Without Power-out cable. With Reflector (white)
Size: S, M, L, XL
Spanninga Solo, Rear
KICKSTAND Alloy, rear mount

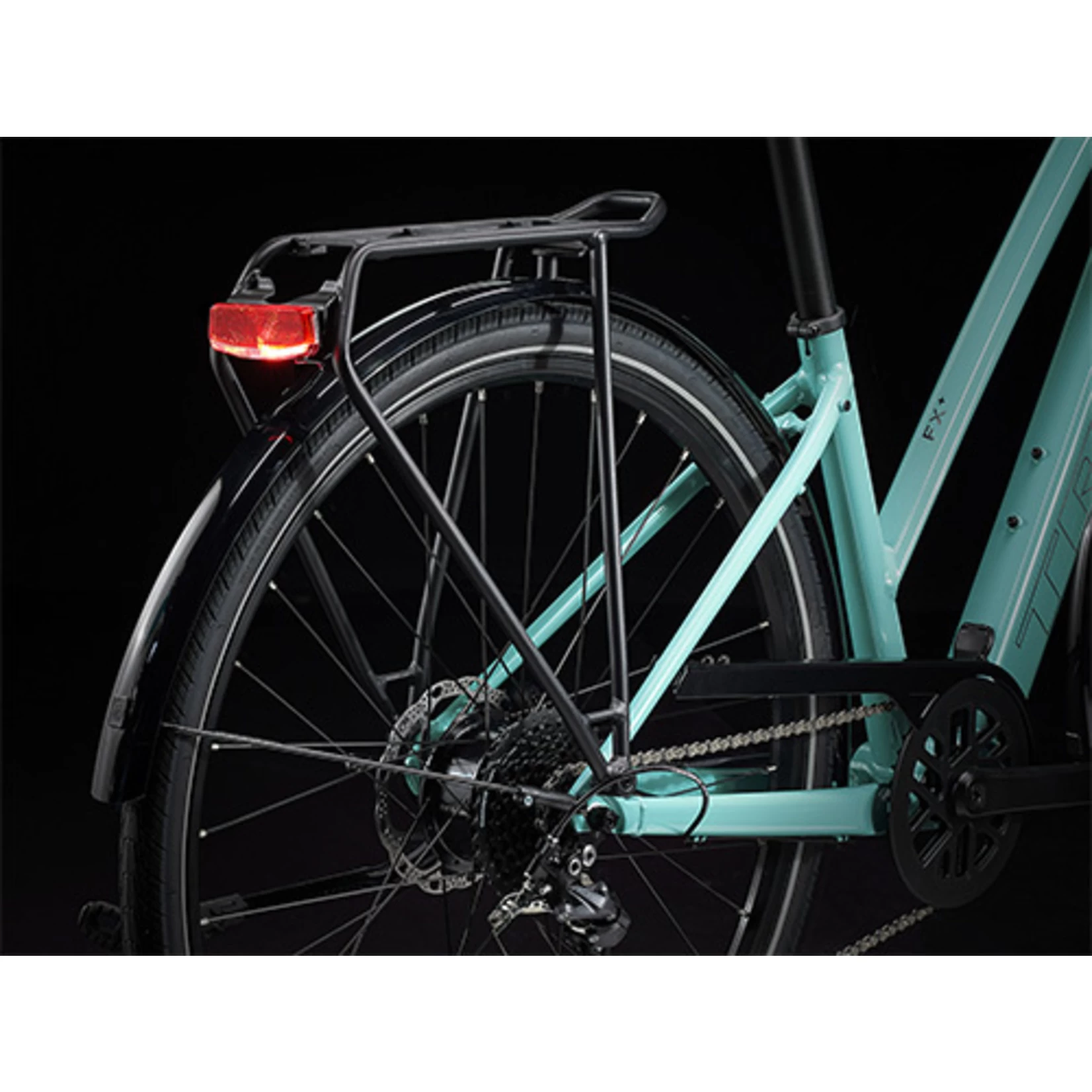

CARGO RACK MIK Compatible alloy rear rack
FENDER SKS plastic

WEIGHT

WEIGHT M – 18.20 kg / 40.13 lbs
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
