Name: 2023 TREK PROCALIBER 9.6 VOLT/RAW CARBON
SKU: SKU-000-676LKbi
Availability: InStock

PRODUCT DESCRIPTION:

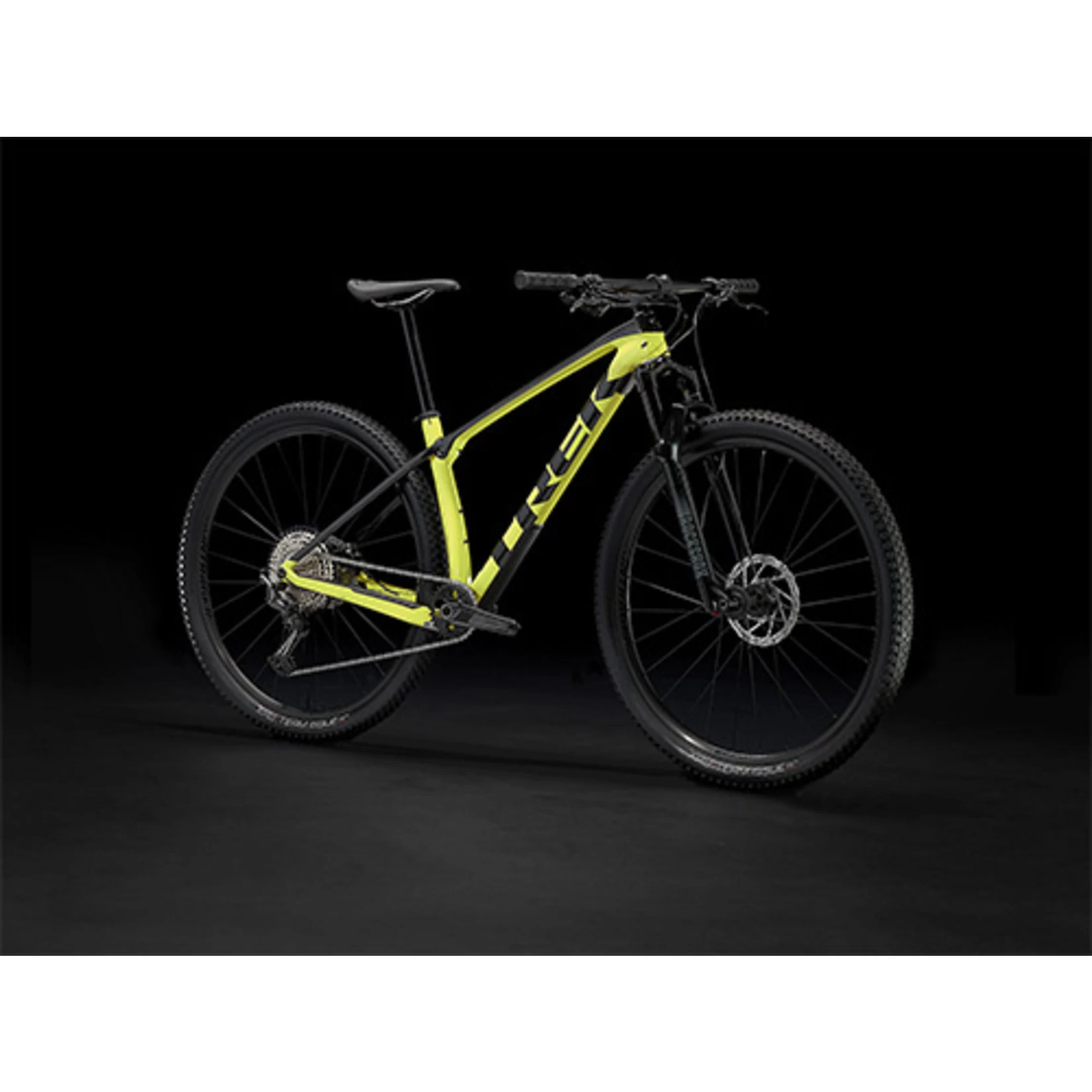

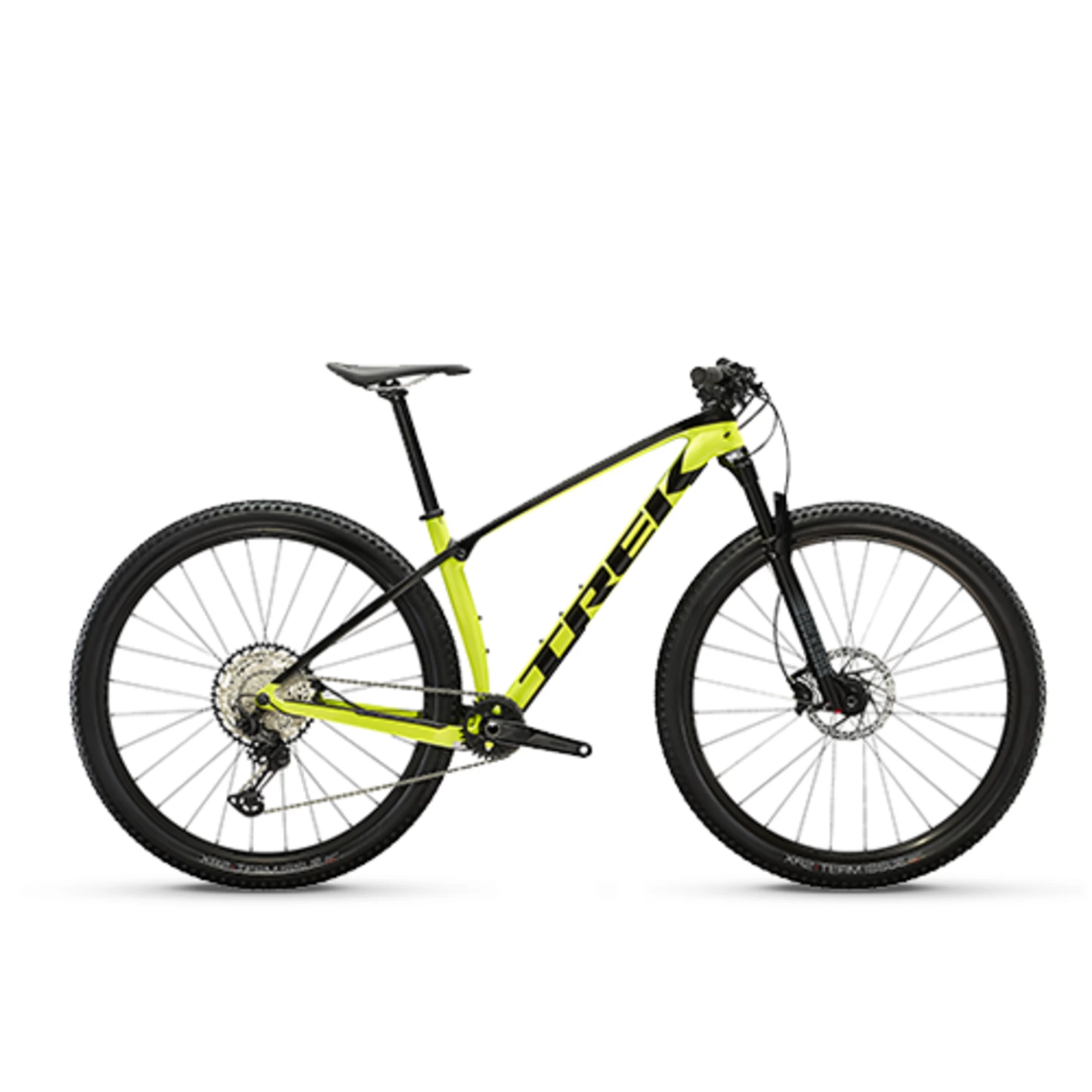

Procaliber 9.6 is a race-ready cross country hardtail. Its fast carbon frame boasts a trail-taming IsoSpeed decoupler, quick-rolling 29er wheels and a RockShox Recon Gold RL suspension fork to keep you fast and smooth over roots and rocks during your most demanding mountain bike rides.

You’re more than a casual singletrack rider. You put in long miles on the trail, show up to race and want the speed, efficiency and light weight of a carbon cross-country bike with IsoSpeed.

A light and stiff carbon frame with the unique advantage of our trail-smoothing IsoSpeed, a 100 mm RockShox Recon Gold RL fork with a plush DebonAir spring and remote lockout, a lighter-weight wide-range Shimano SLX drivetrain, and tubeless 29″ Bontrager Kovee Comp 23 wheels.

This bike can compete with the very best hardtails out there. You get fatigue-fighting IsoSpeed with component upgrades that save weight and give you better handling. If you want to rock the local race scene and rack up serious mileage, the Procaliber 9.6 is a great choice.

The upgraded fork gives you a remote lockout, a more plush spring and a damper that gives you more control over the rough stuff.

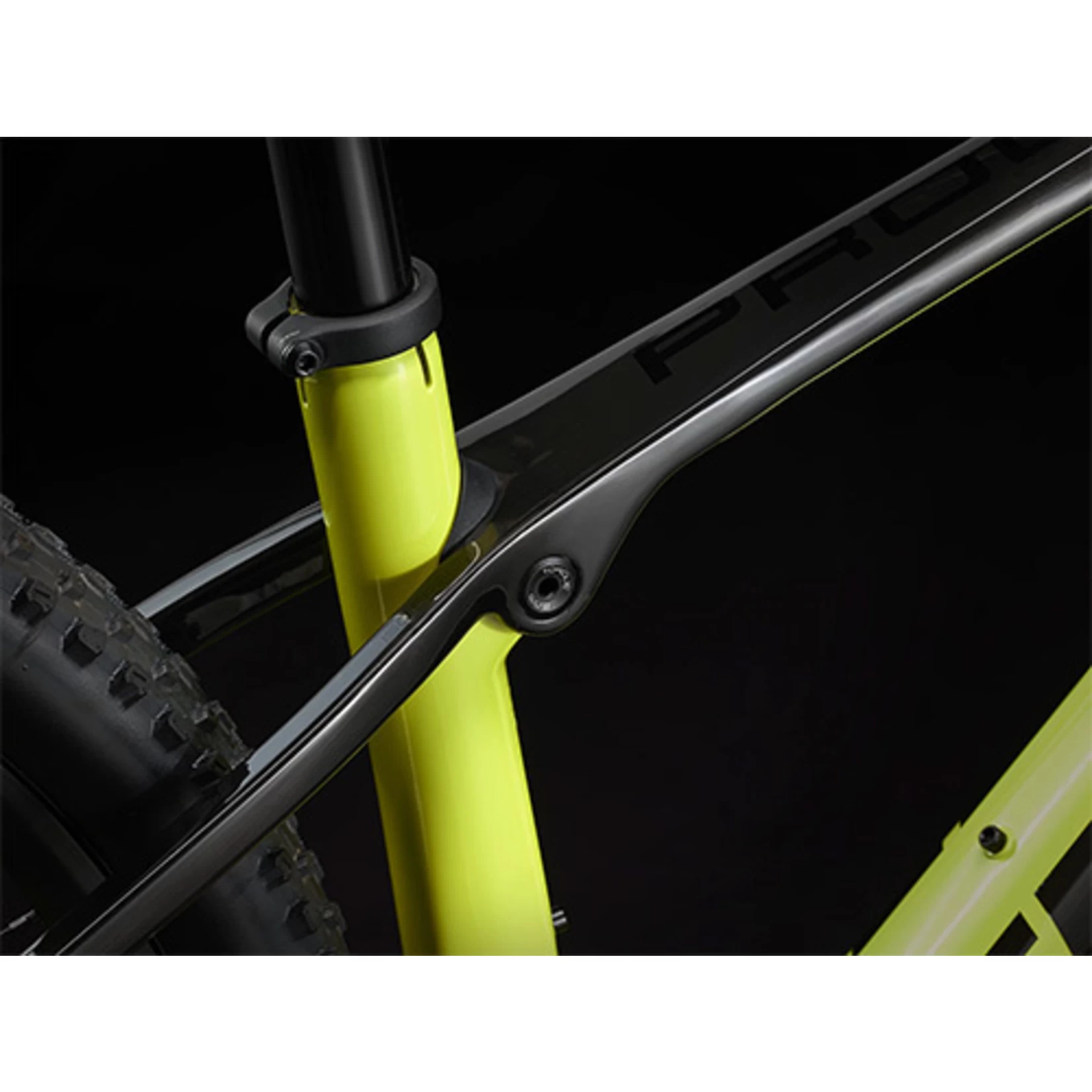

The IsoSpeed decoupler and carbon frame makes it ride smoother than any other hardtail, so your body doesn’t get beaten up by trail chatter
The solid XC group set will hold its own on the race course, but it’s also going to hang tough through everyday training rides

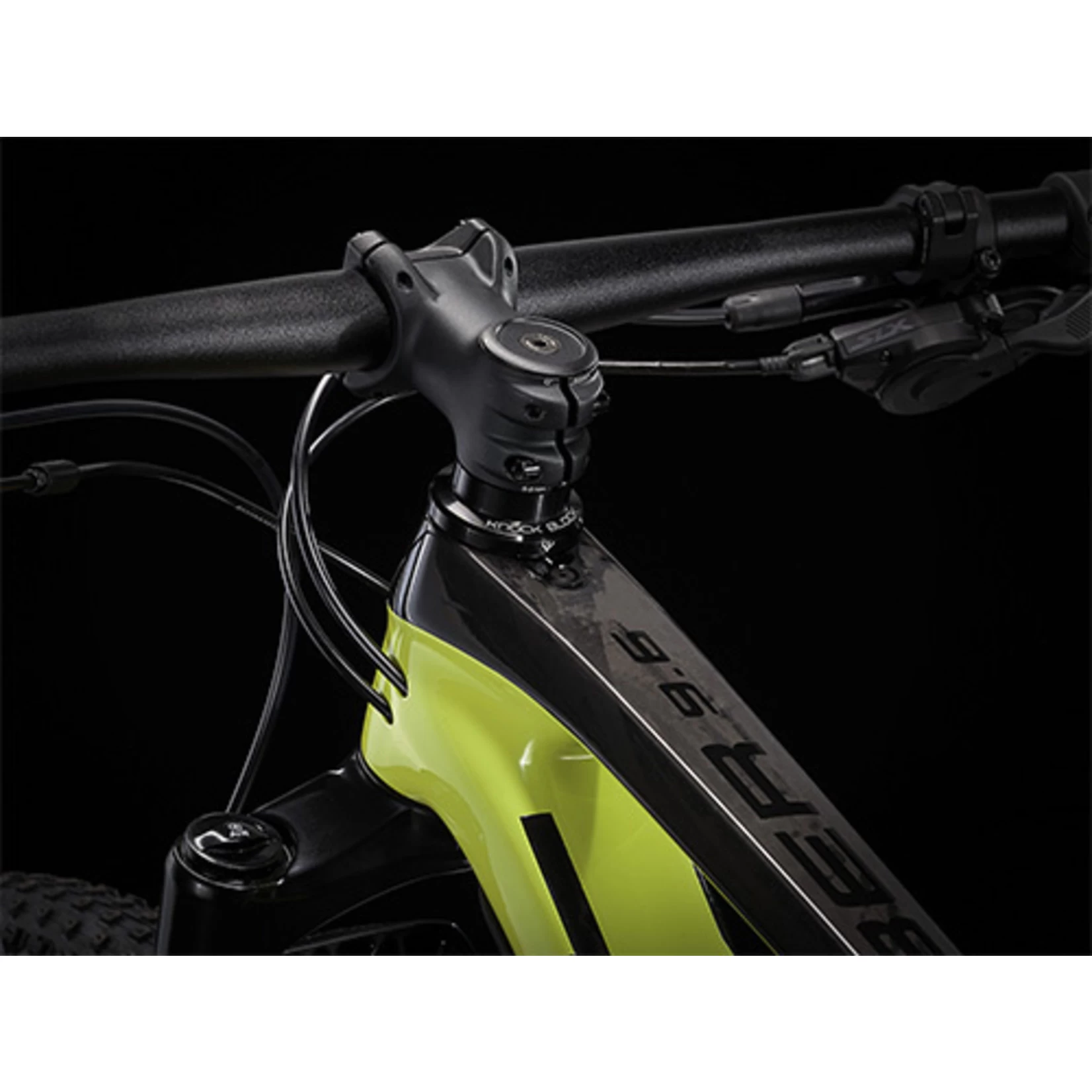

You get a Straight Shot downtube for extra-stiff, responsive handling without added weight and a Knock Block headset that protects against spinning bars and fork crowns
The remote lockout lets you lock out the fork without taking your hands off the bars

FRAMESET

FRAME OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148

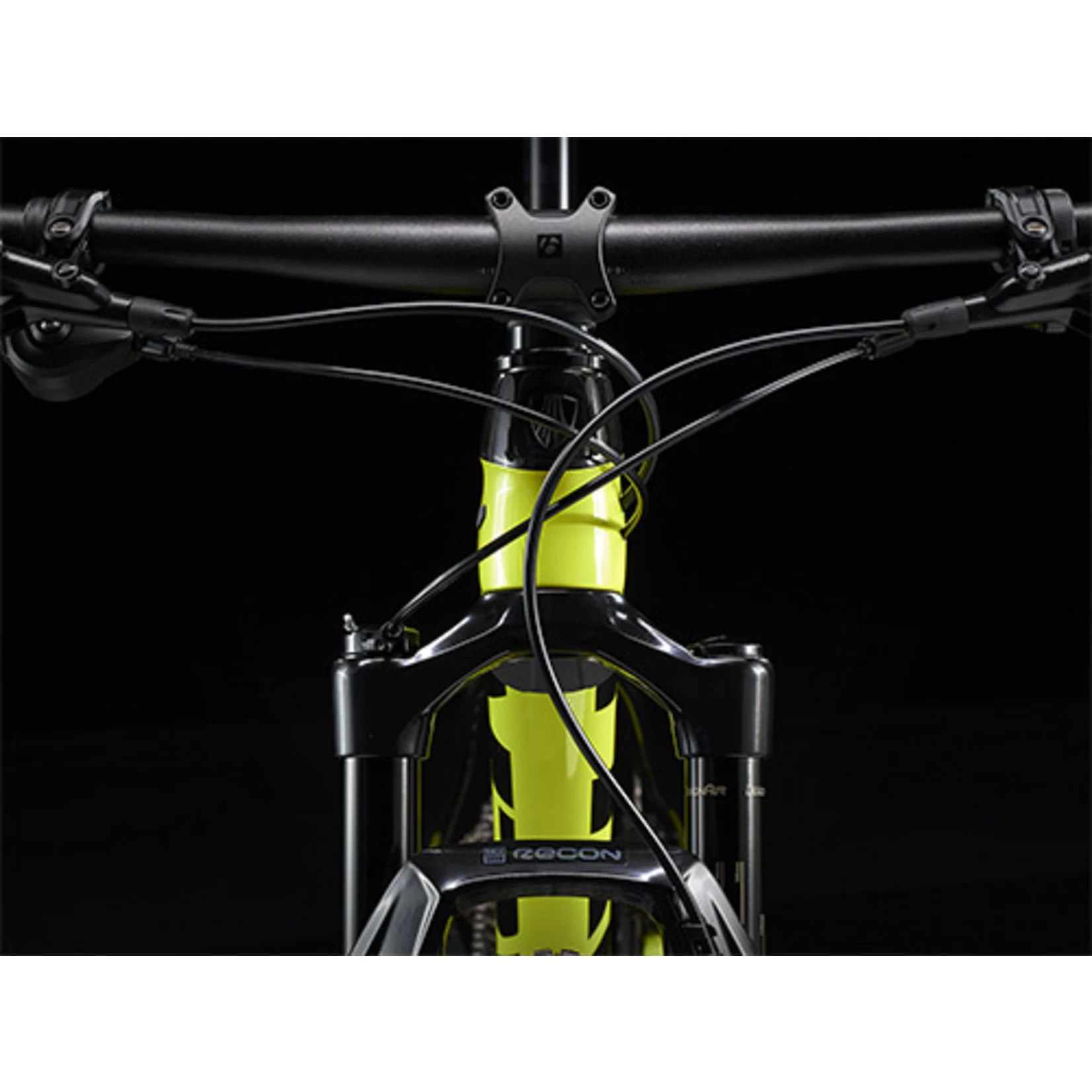

FORK RockShox Recon Gold RL, DebonAir spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel
SUSPENSION LEVER RockShox OneLoc Sprint
MAX COMPATIBLE FORK TRAVEL 120mm (533 axle-to-crown)

WHEELS

HUB FRONT Size: S , M , ML , L , XL , XXL
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Size: S , M , ML , L , XL , XXL
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
HUB REAR Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
SKEWER REAR Bontrager Switch thru-axle, removable lever

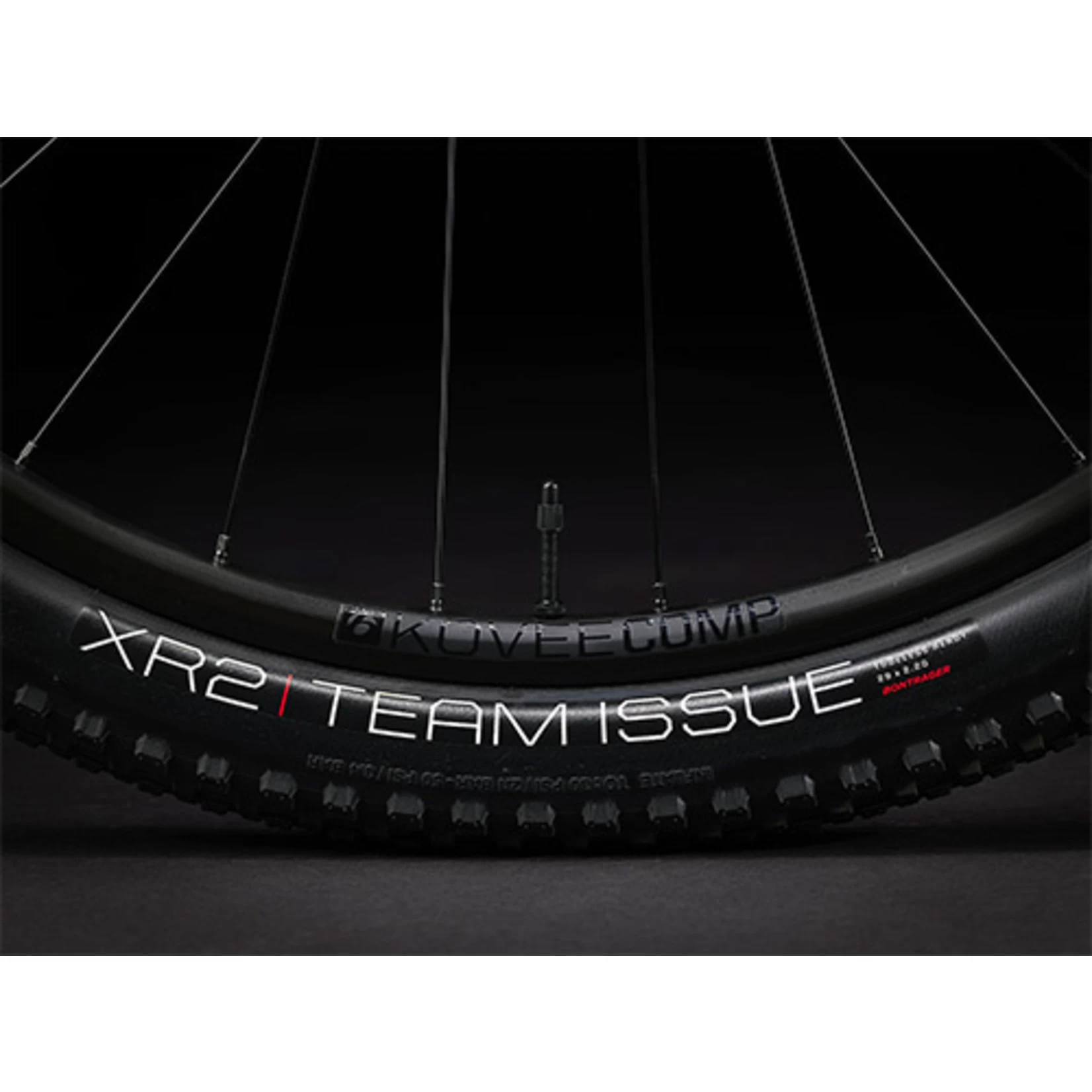

RIM Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
TIRE Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29×2.20″
MAX TIRE SIZE Frame: 29×2.40″ Fork: See manufacturer

DRIVETRAIN

SHIFTER Shimano SLX M7100, 12-speed

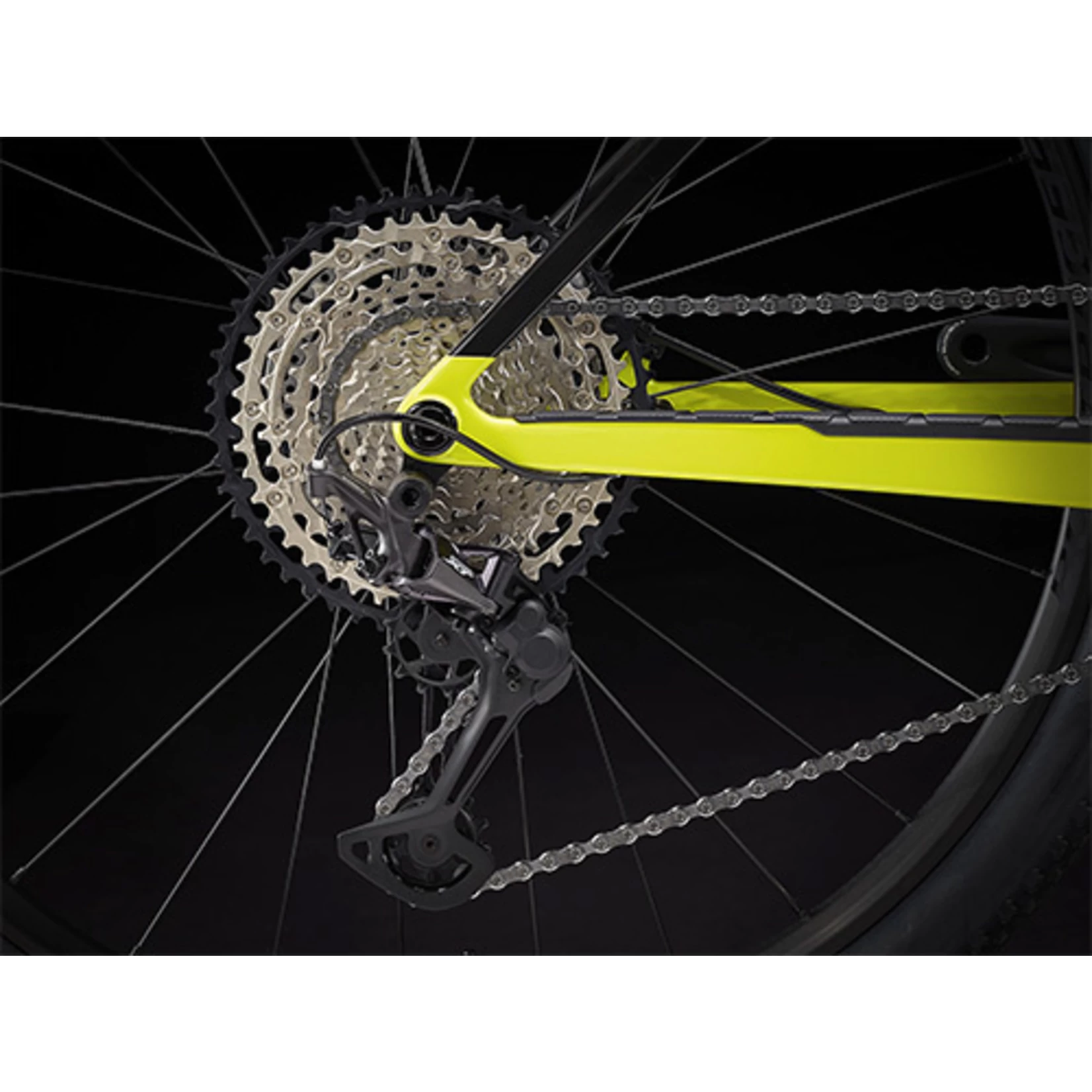

REAR DERAILLEUR Shimano XT M8100, long cage
CRANK Size: S

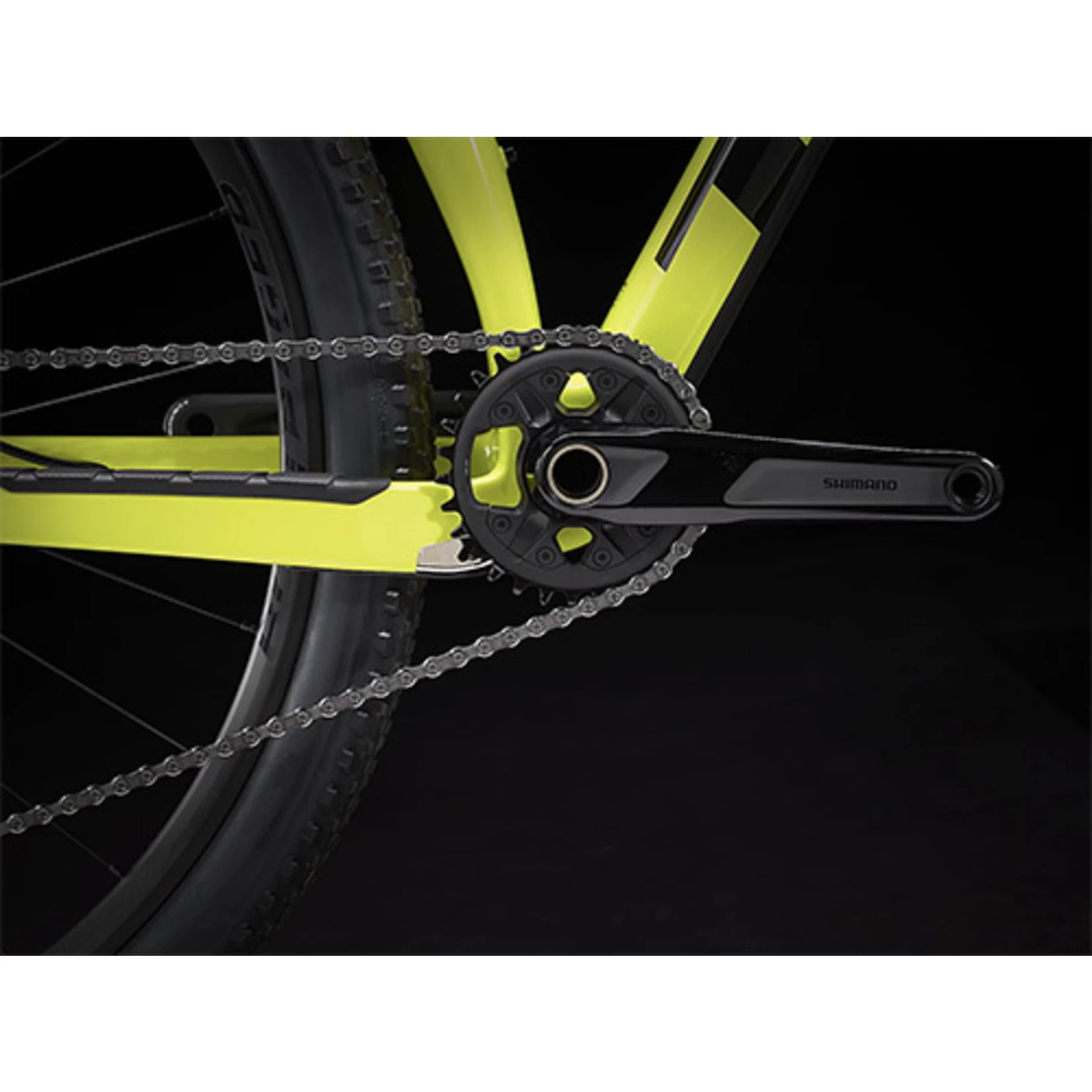

Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 170 mm length
Size: M , ML , L , XL , XXL
Shimano MT611, 30T steel ring, alloy spider, 52 mm chainline, 175 mm length
BOTTOM BRACKET Shimano MT500, 92 mm, PressFit
CASSETTE Shimano SLX M7100, 10-51, 12-speed
CHAIN Shimano Deore M6100
MAX. CHAINRING SIZE 36T, Min 30T

COMPONENTS

SADDLE Bontrager Arvada, hollow chromoly rails, 138 mm width
SEATPOST Size: S
Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 330mm length
Size: M , ML , L , XL , XXL
Bontrager Comp, 6061 alloy, 31.6 mm, 8 mm offset, 400 mm length
HANDLEBAR Size: S , M , ML
Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
Size: L , XL
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width

Size: XXL
Bontrager Line, alloy, 35 mm, 15 mm rise, 750 mm width
GRIPS Size: S , M , ML , L , XL , XXL
Herrmans Clik
Size: S , M , ML , L , XL , XXL
Bontrager XR Trail Comp, nylon lock-on
STEM Size: S , M
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length
Size: ML
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length

Size: L , XL
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 80 mm length

Size: XXL
Bontrager Elite, 35 mm, 0-degree, 90 mm length
HEADSET 1-1/8” threadless, sealed cartridge bearings

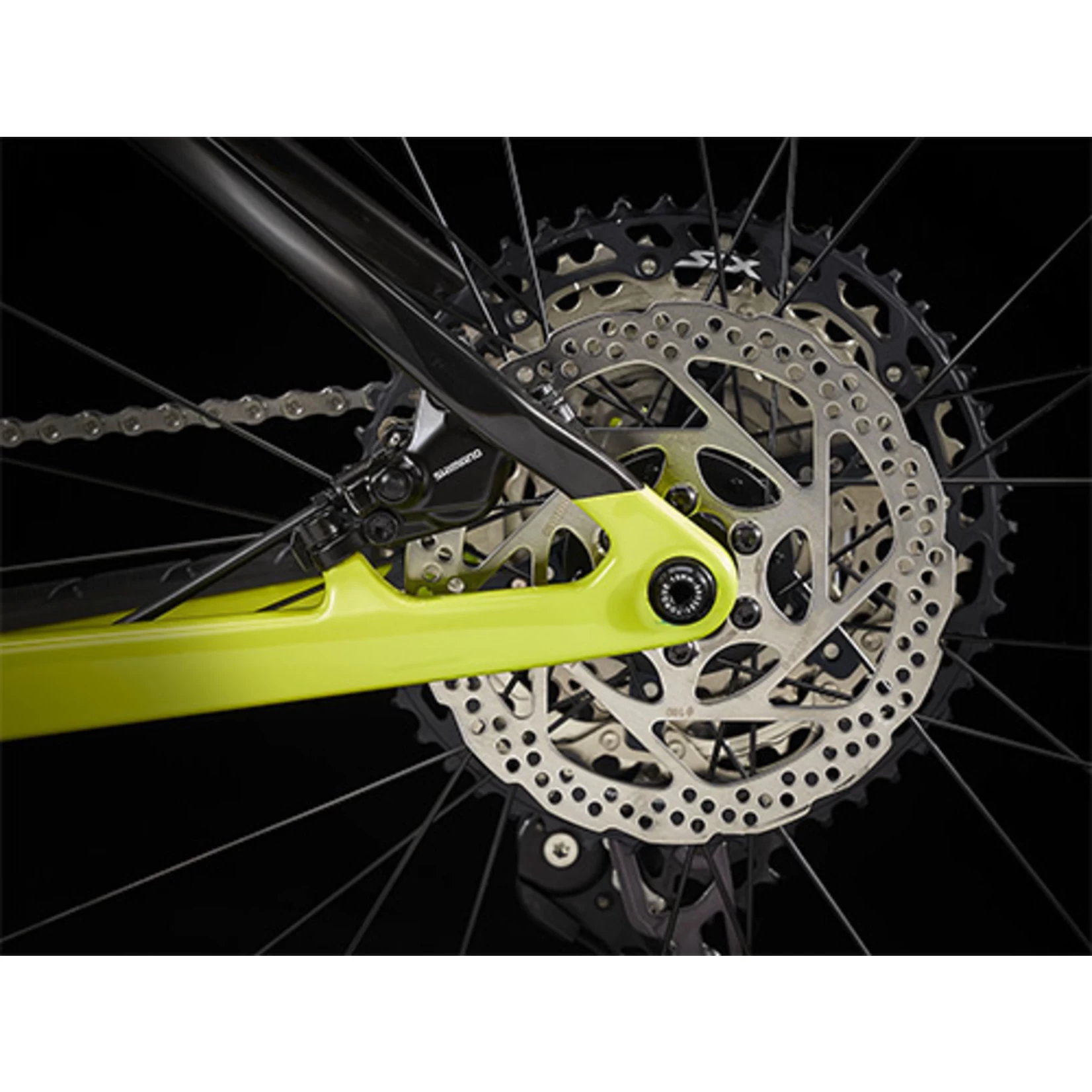

BRAKE Shimano hydraulic disc, MT4100 lever, MT410 calliper
BRAKE ROTOR Size: S , M , ML , L , XL , XXL
Shimano RT56, 6-bolt, 180 mm
Size: S , M , ML , L , XL , XXL
Shimano RT56, 6-bolt, 160 mm

WEIGHT

WEIGHT M – 11.43 kg / 25.21 lbs (with TLR sealant, no tubes)
WEIGHT LIMIT This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
