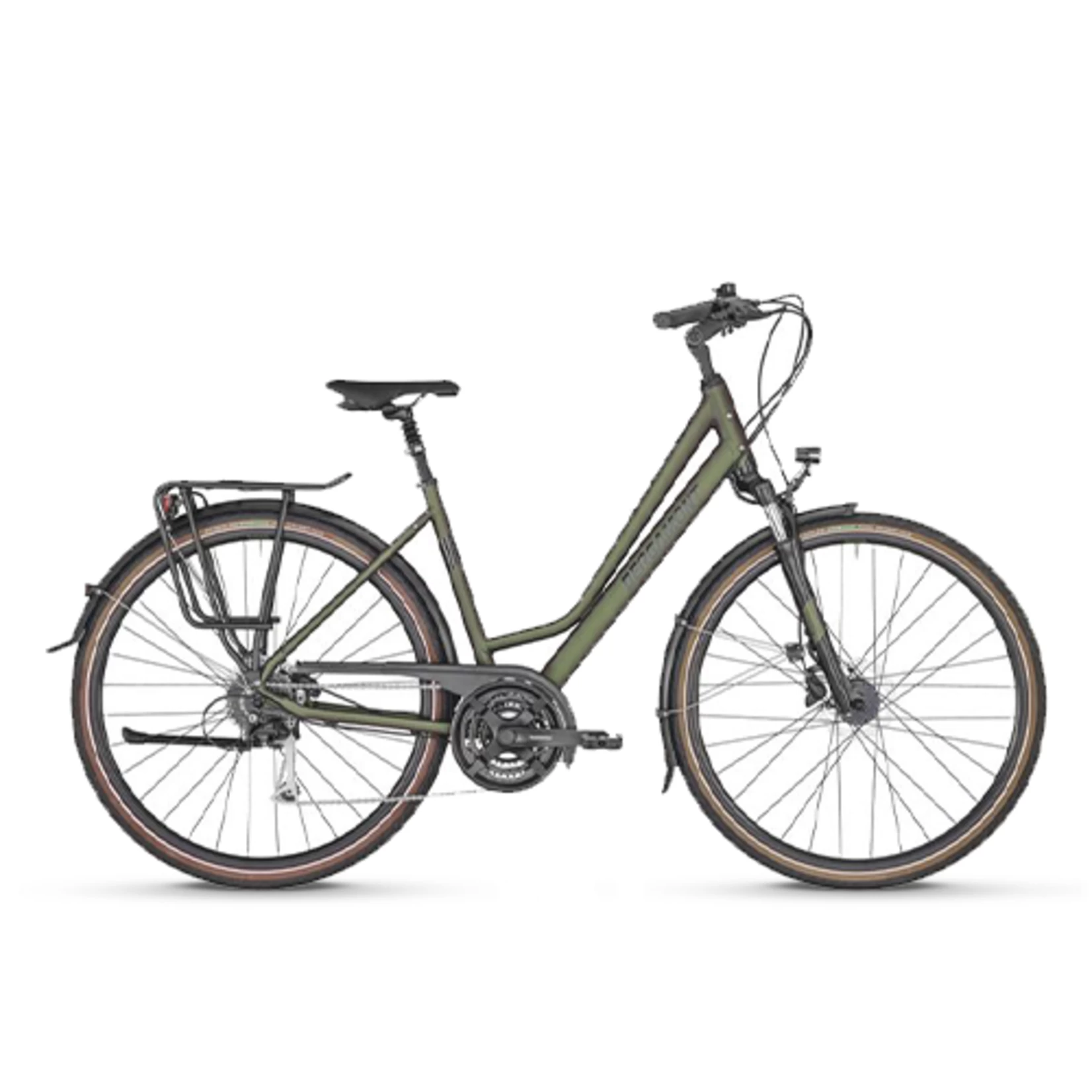

BERGAMONT HORIZON 4 AMSTERDAM GREEN

KEY FEATURES

• Trekking frame with perfectly balanced and dynamic riding characteristics as well as a sportive but upright riding position.
• Shimano MT200 hydraulic disc brake
• Syncros Trekking saddle, ergonomic BGM Comfort lock-on grips
• Comfortable suspension seat post
• Racktime carrier with multifunctional Snapit 2.0 adapter system and integrated fender mounts

The versatile all-round trekking bike, based on a completely new low step-through frame platform with integrated mounts for a front carrier, as well as many other accessories. Features include more tyre clearance and an innovative and easy-to-service cable duct in the down tube.

SPECIFICATIONS

FRAME	28″, lite AL-6061 tubing
FORK	Suntour NEX DS, 63 mm, preload adjust
REAR DERAILLEUR	Shimano RD-T4000
FRONT DERAILLEUR	Shimano FD-TY710
SHIFTERS	Shimano ST-EF505, 3×8-speed, STI-shifter
CRANKSET	Shimano FC-TY301, 48/38/28t, with chaincover
BB-SET	Shimano BB-UN101, BSA
CHAIN	KMC Z8
CASSETTE	Shimano CS-HG200-8, 12-32t
BRAKE LEVERS	Shimano ST-EF505, hydraulic disc brake
BRAKES	Shimano BR-MT200, hydraulic disc brake
ROTOR	Shimano SM-RT10, 160 mm
HANDLEBAR	BGM Comp, riserbar, backsweep: 33°
H’STEM	BGM Comp, Vario, clamp diameter: 25.4 mm
SEATPOST	Post Moderne PM-780E, suspension
SEAT	Syncros Capilano Urban
HEADSET	BGM Comp, threaded, semi-integrated, 1 1/8″
HUB (FRONT)	Shimano dynamo hub, DH-3D37, centerlock, disc, quick release
HUB (REAR)	Shimano, centerlock, disc, quick release
SPOKES	steel, black
RIMS	BGM Comp X2, disc, 32h
FRONT TIRE	Schwalbe Road Cruiser, Kevlarguard, reflective stripe, 47-622 Tube: Schwalbe SV19B Light
REAR TIRE	Schwalbe Road Cruiser, Kevlarguard, reflective stripe, 47-622 Tube: Schwalbe SV19B Light
LIGHTS	Front: Axa Compactline, 20 Lux, LED, standlight Rear: Trelock LS613 Duo Flat, LED, standlight
RACK & FENDERS	Fender: SKS, with stainless stays Carrier: BGM Trekking alloy / Racktime Snapit 2.0 System, integrated fender mount
PEDALS	Trekking alloy
ACCESSORIES	Kickstand: Atran
APPROX WEIGHTS IN KG	17,4
COLOR	sunrise green (matt)
FRAME SIZE	44/48/52/56 cm
CHAIN COVER	SKS Chainblade
GRIPS	BGM Comfort, Ergo, double density, clamp version
MAX. SYSTEM WEIGHT	130,0 kg The overall weight includes the bike, the rider, the equipment and possible additional luggage.
