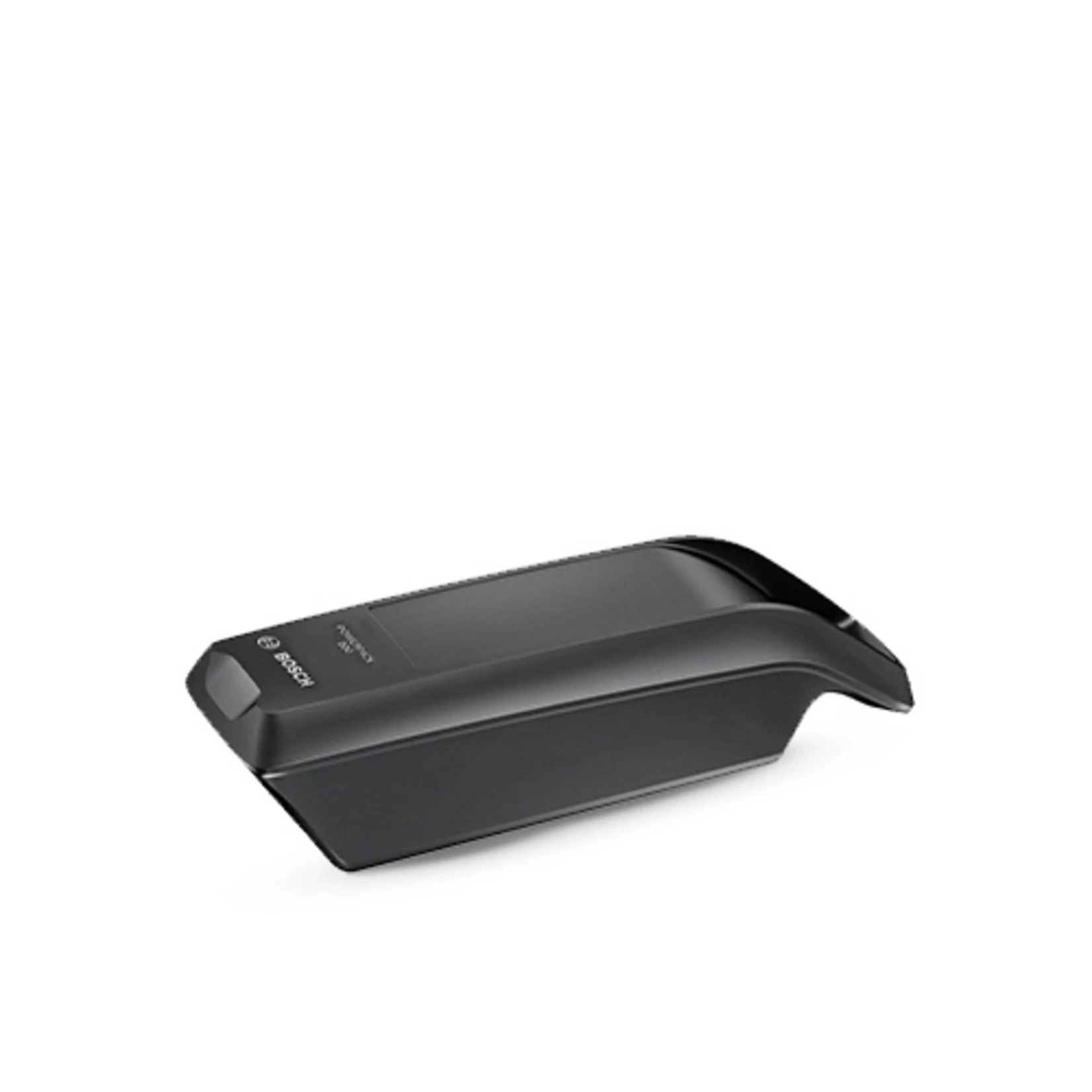

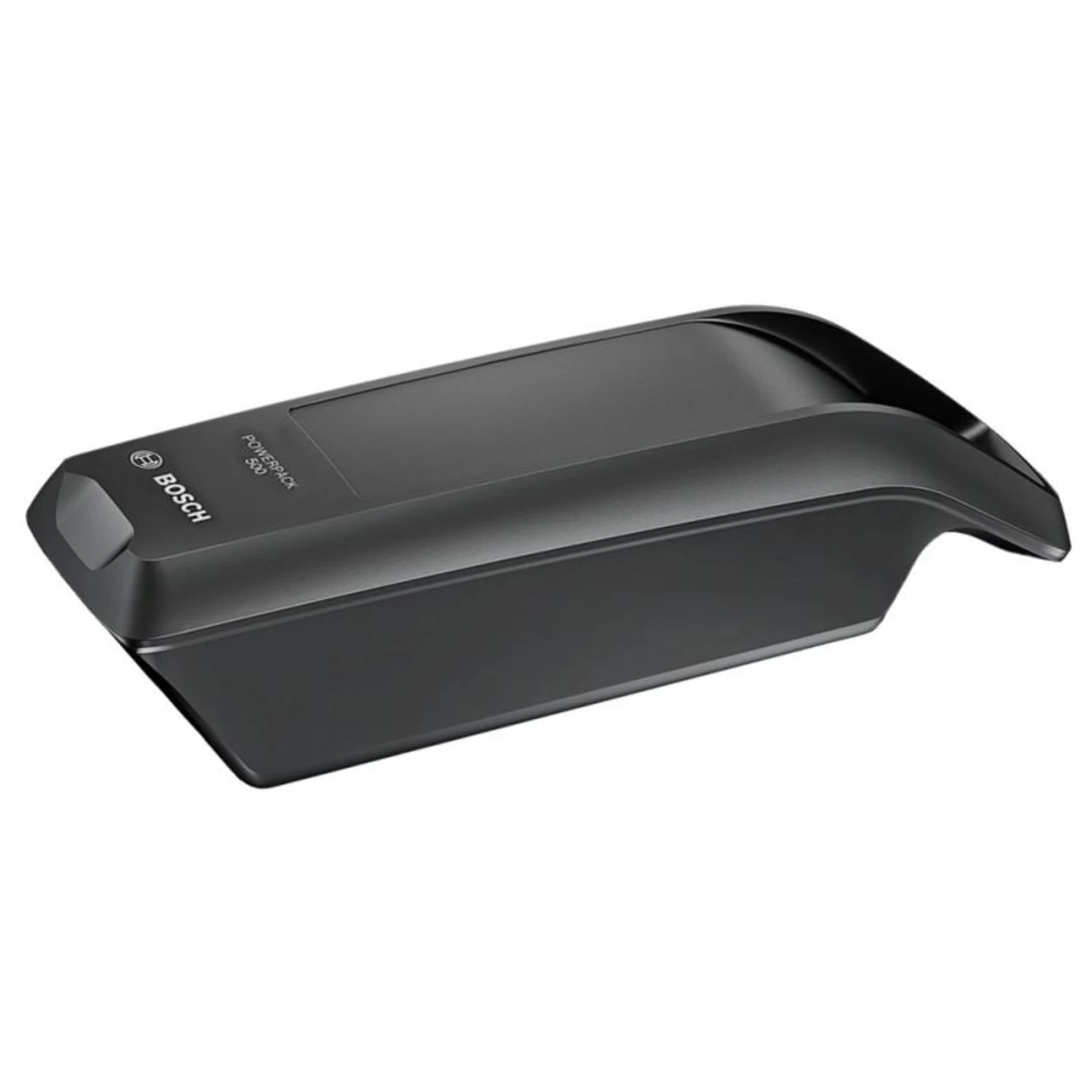

BOSCH POWERPACK 500 FRAME

Model features:

– Frame battery Powerpack 500 – Voltage 36V – 13.4Ah / 500 Wh – Charging time approx. 4.5 hours
– Suitable for: all BOSCH drive units from 2014 (chargers from 2014)

PowerPack 500Wh frame-mounted replacement battery for Bosch e-bike drives of the series Active Line, Active Line Plus, Performance Line and Performance Line CX from 2014. Approx. 25% higher range with only approx. 4% more weight compared to the Bosch PowerPack 400Wh.

Bosch Battery Management System (BMS):
• Integrated emergency shutdown
• Permanent monitoring of voltage, current, temperature and charging state of the cells for high safety and durability
• Reset possibility for the user
• Reduced performance from a cell temperature of 40 °C
• Automatic shutdown from a cell temperature of 60 °C
• Charging is prevented below 0 °C / over 40 °C
• No memory effect and no self-discharge

Compatibility:
• For e-bike drives of the series Active Line, Active Line Plus, Performance Line and Performance Line CX from 2014

Specs:

• For frame mounting
• Lithium-ion battery
• Charging temperature: 0 °C up to +40 °C
• 36 V / 13.4 Ah / 500 Wh
• Weight: approx. 2.6 kg
• Anthracite (Performance Line)

Including:
• Incl. dangerous goods packaging and manual

Tips to increase the durability of the battery:
Storage of the battery:

1. Dry, between 0 °C and 20 °C, preferably not above 30 °C
2. Not fully charged or discharged, but ideally with a 30% to 60% charge
3. Do not park your e-bike in direct sunlight or near sources of heat (e.g. heating)
4. Riding your e-bike during winter:
   1. Insert the battery only shortly before the ride
   2. Use thermal protective sleeves
   3. Charge the battery preferably indoors Let it warm up at least an hour before
