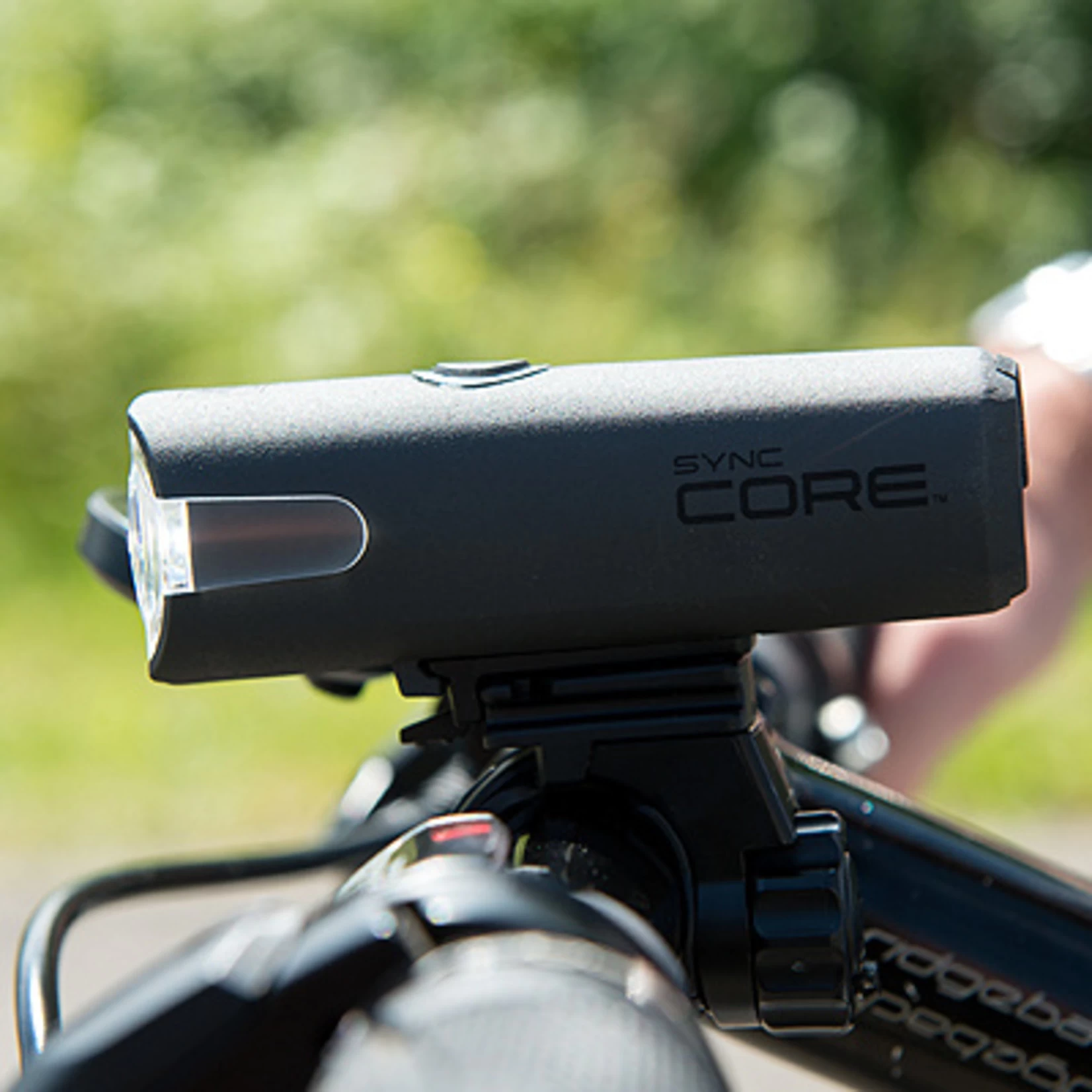

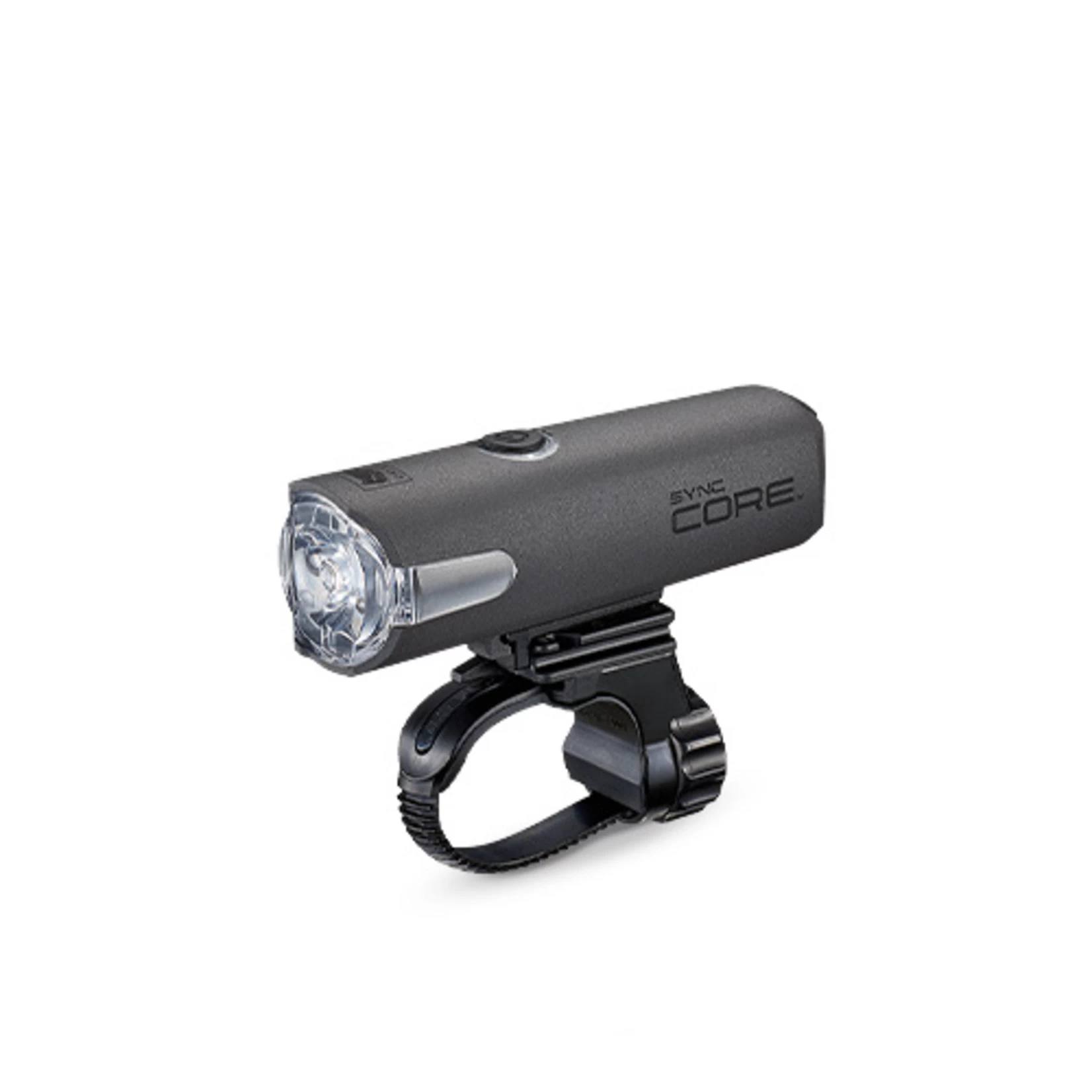

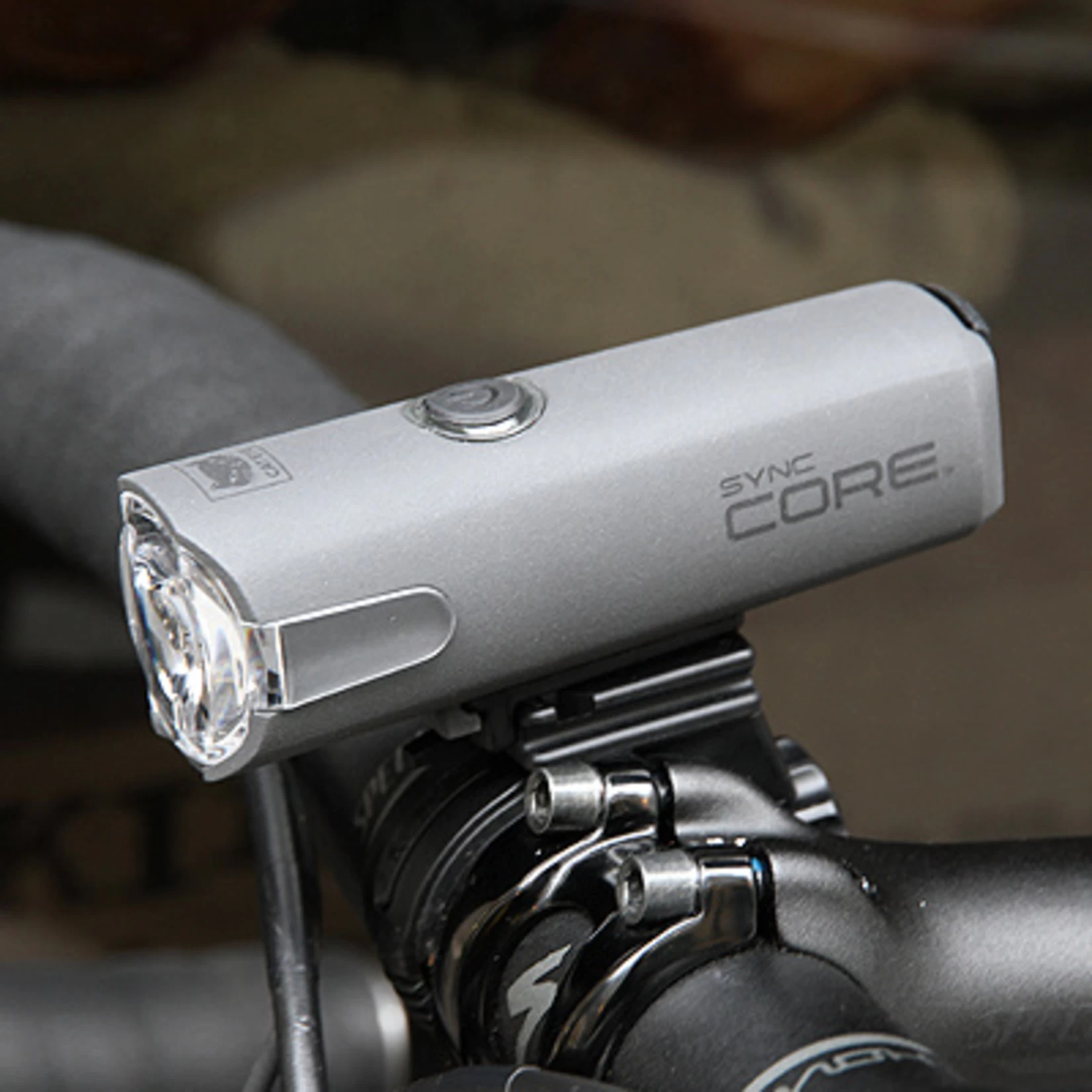

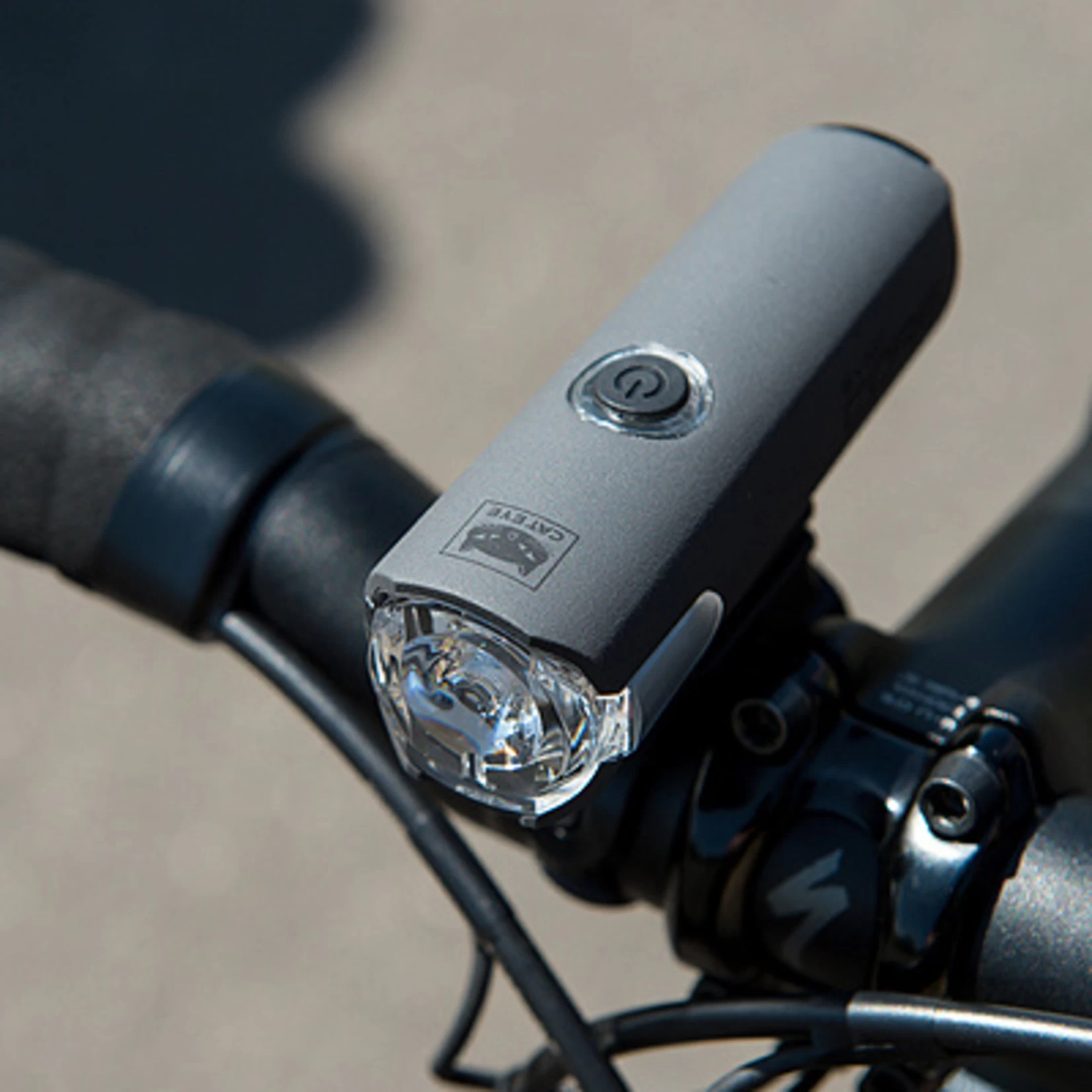

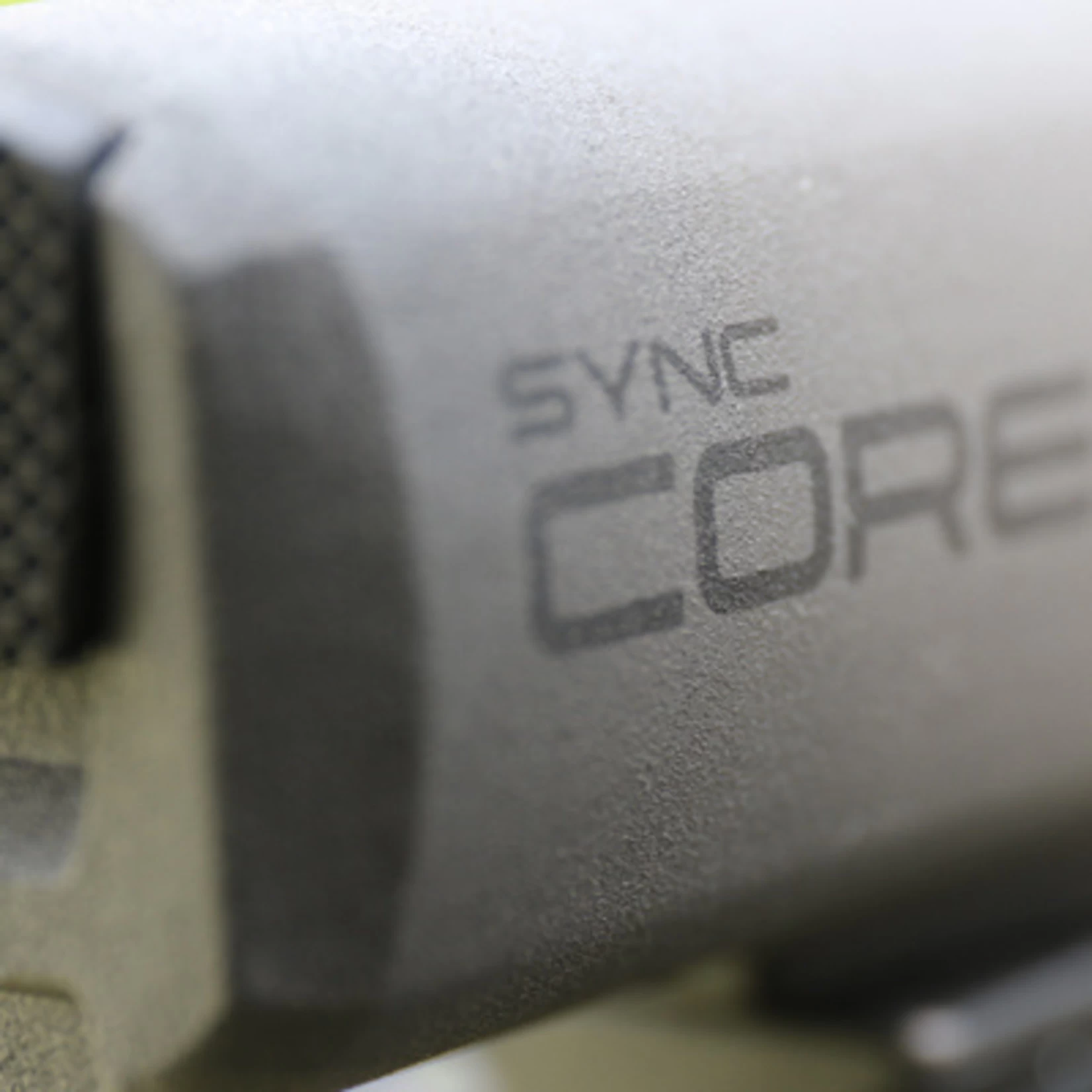

CATEYE SYNC CORE LIGHT

SYNC CORE

A powerful main front light that’s the cornerstone of the CatEyeSYNC™ lighting system.

CatEyeSYNC™ – ONE touch control -Turn one light on and all your CatEyeSYNC™ lights come on.
Using wireless technology, CatEyeSYNC™ lights provide the ease of synchronizing all lights to operate as one.

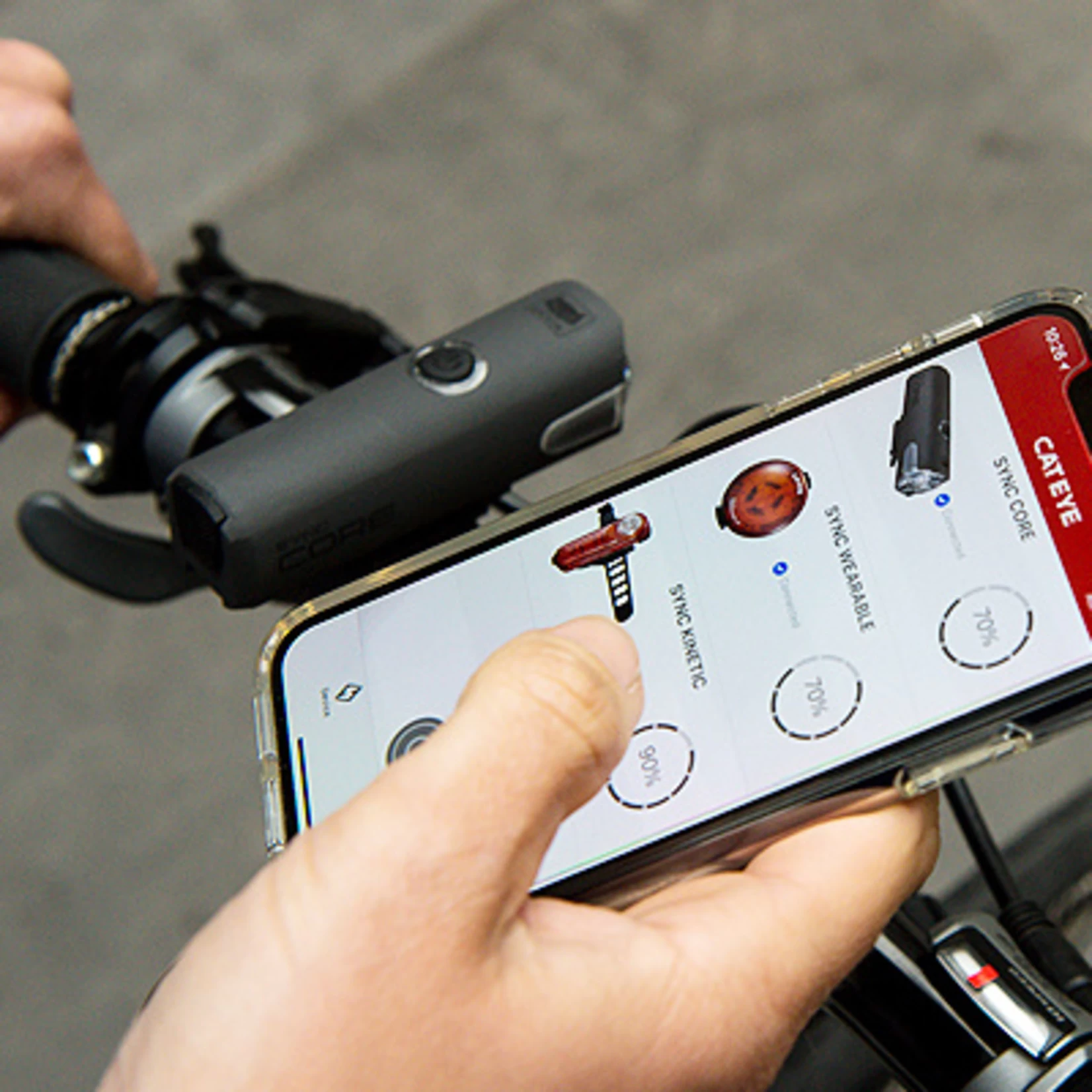

Check battery levels, customize modes, set brake mode and synchronize flash pattern preferences using your Smartphone.
Simple and superior 360-degree visibility is one touch away with up to 7 lights synced to operate as one.
(the other CatEyeSYNC™ light options that can be added to your SYNC Core system are SYNC Wearable and SYNC Kinetic.)

With 500 lumens and excellent side visibility, the SYNC Core gives you the power to see and be seen. Can be used alone or – better still – combined with other CatEyeSYNC™ enabled lights for unparalleled levels of 360-degree visibility, day or night.

• Compact and lightweight high power rechargeable headlight (500lm)
• Excellent daytime visibility in Daytime HyperConstant mode
• Superior side visibility
• Round beam pattern with OptiCube™ lens technology
• Built-in fast recharging circuit
• Lithium-ion rechargeable battery

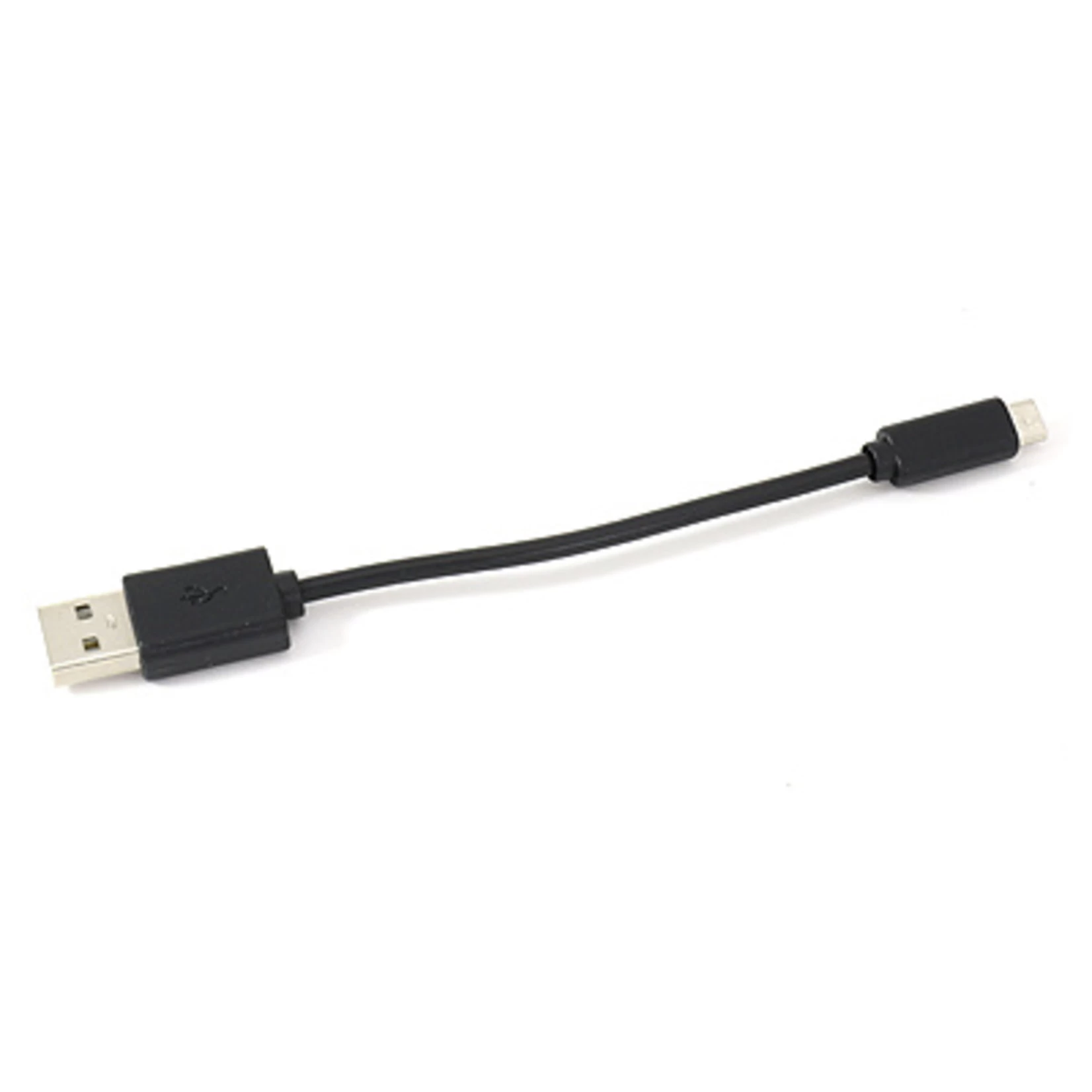

• USB rechargeable (Micro-USB cable included)
• 5 light modes * Charging time: 3-6 hrs
• Mode memory function

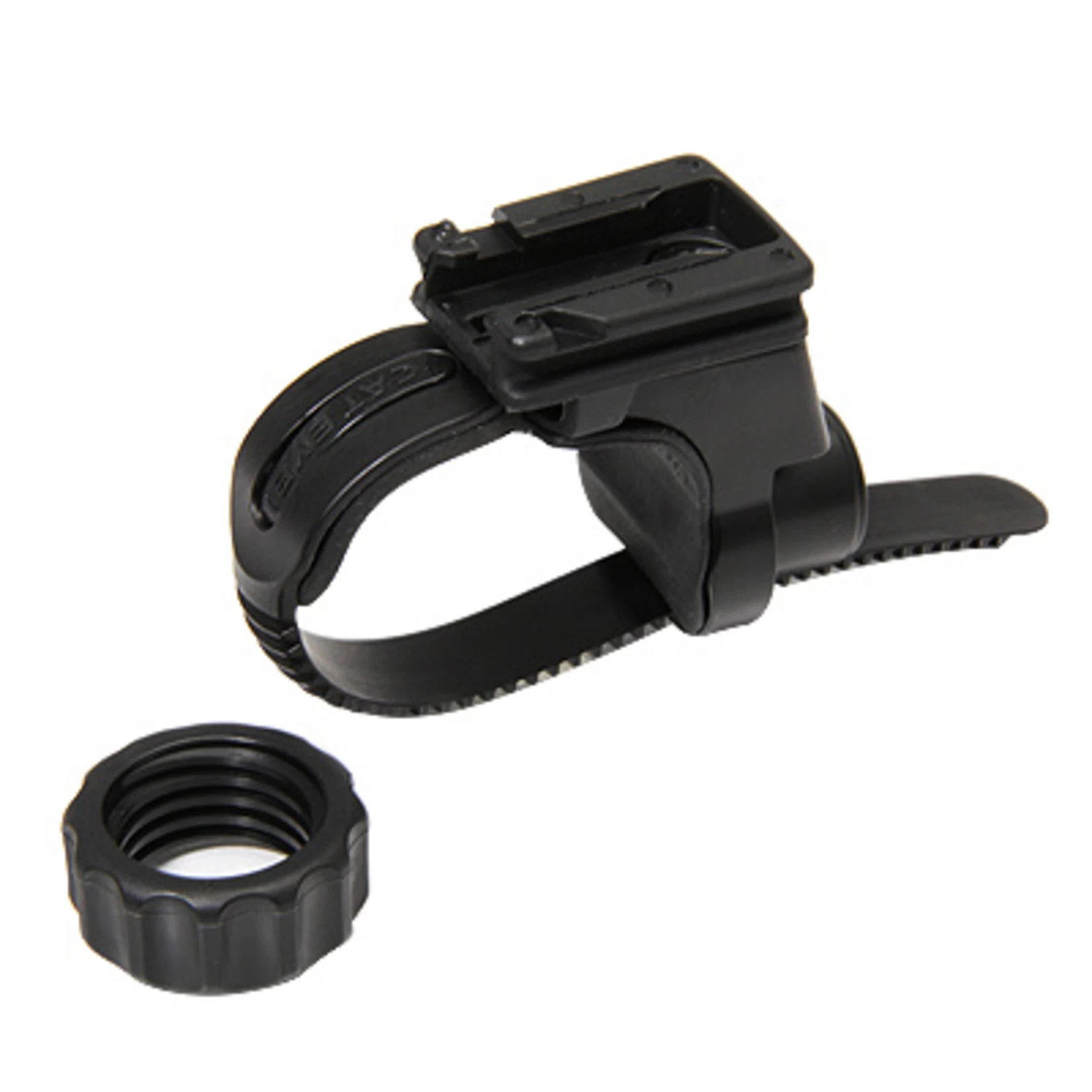

• FlexTight™ bracket

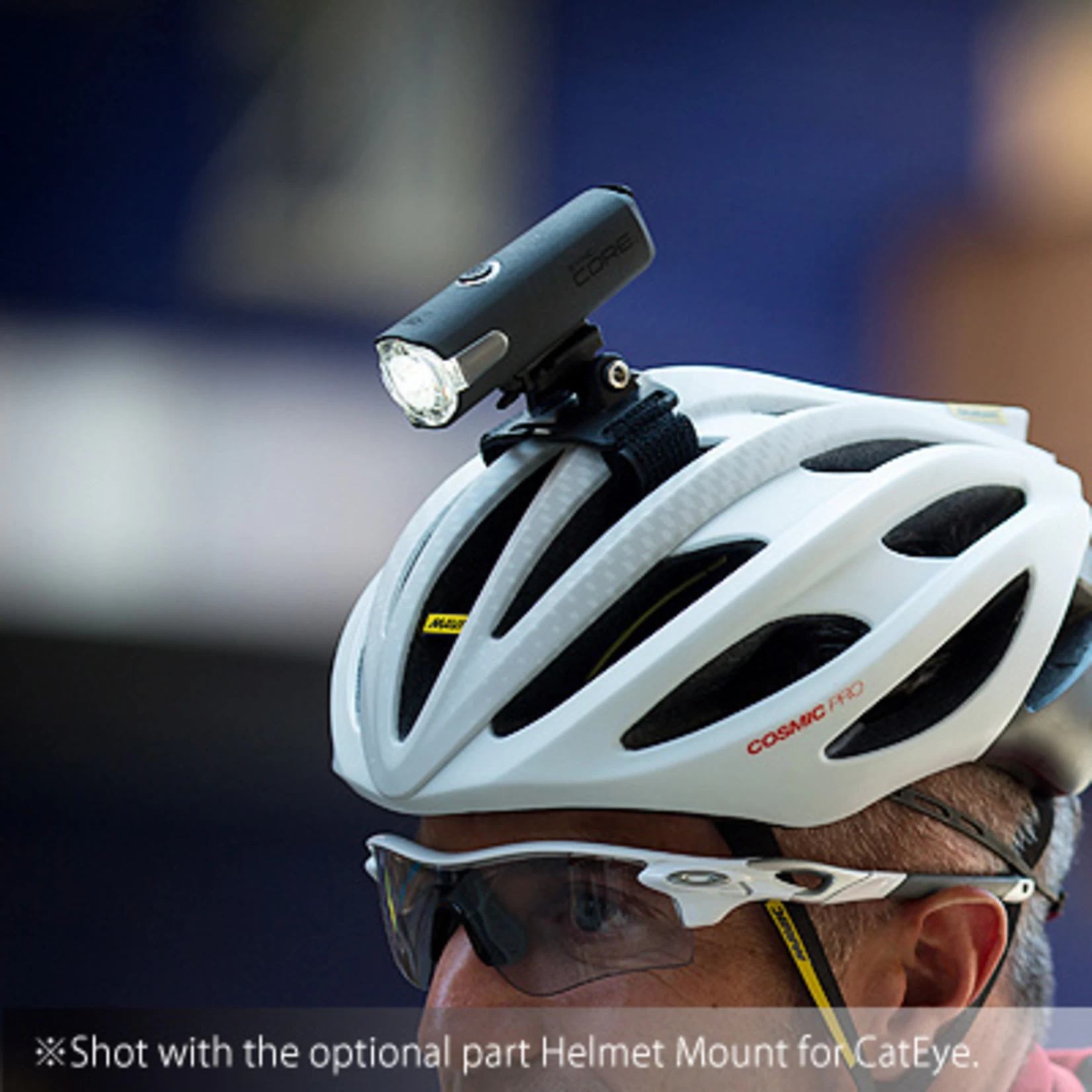

• Optional helmet mount, center fork bracket and out-front bracket 2 available

*The smartphone CatEyeSYNC™ app is required to pair the lights. Before you purchase, be sure to check to see if your smartphone model is compatible. CatEyeSYNC™ Compatible Device List
PC or Mac with an internet connection is required for the firmware update of the CatEyeSYNC™ lights.

• Synchronize all SYNC lights
• One touch turns all lights on/off
• Synchronized lights connection status indicator
• Control with smartphone app
  – Pair the lights (up to seven lights)
  – Customize light modes
  – View remaining battery level
  – Turn on/off the lights
  – Turn on/off synchronization with other lights
  – Find me function lets the light flashing by tapping the button on app

---

Firmware Updater for CatEyeSYNC™ Download

※Please make sure the light is fully charged before updating the firmware.

System requirements:
・Windows 7 / 8 / 8.1 / 10
・Mac OS 10.10 or later※About macOS Catalina (10.15)



SPECIFICATIONS

Dimension	41.5 x 33.5 x 93.5 mm
Weight	94 grams (light unit and battery)
Light source	High-intensity LED x 1
Run time	High（500 lumens）： 2 hrs Middle（150 lumens）： 9 hrs Low（100 lumens）： 15 hrs Daytime HyperConstant（500/100 lumens）: 18 hours Flashing（100 lumens）: 130 hrs
Battery	Li-ion rechargeable battery (3.6V-2,200mAh)
Recharge time	Approx 3-6 hrs (3hrs fast recharge using 1A or higher USB charging adaptor, or using USB3.0)
Recharge/discharge number of times	About 300 times（until the rated capacity drops to 70%）
Water-resistant	IPX4
Other	Built-in fast recharging circuit, Lighting mode memory function, Helmet mount / Center fork bracket / Out-front bracket 2 (optional)
