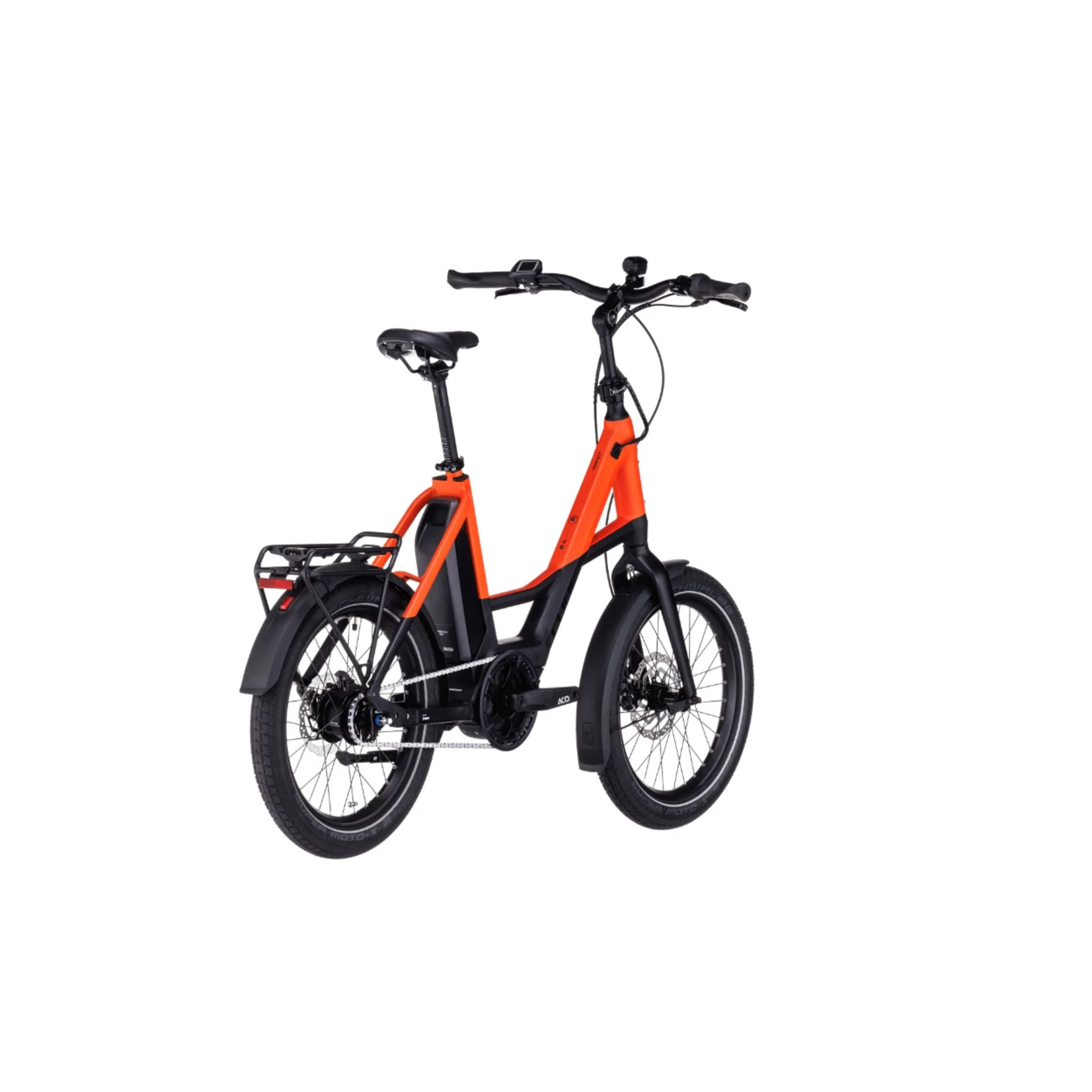

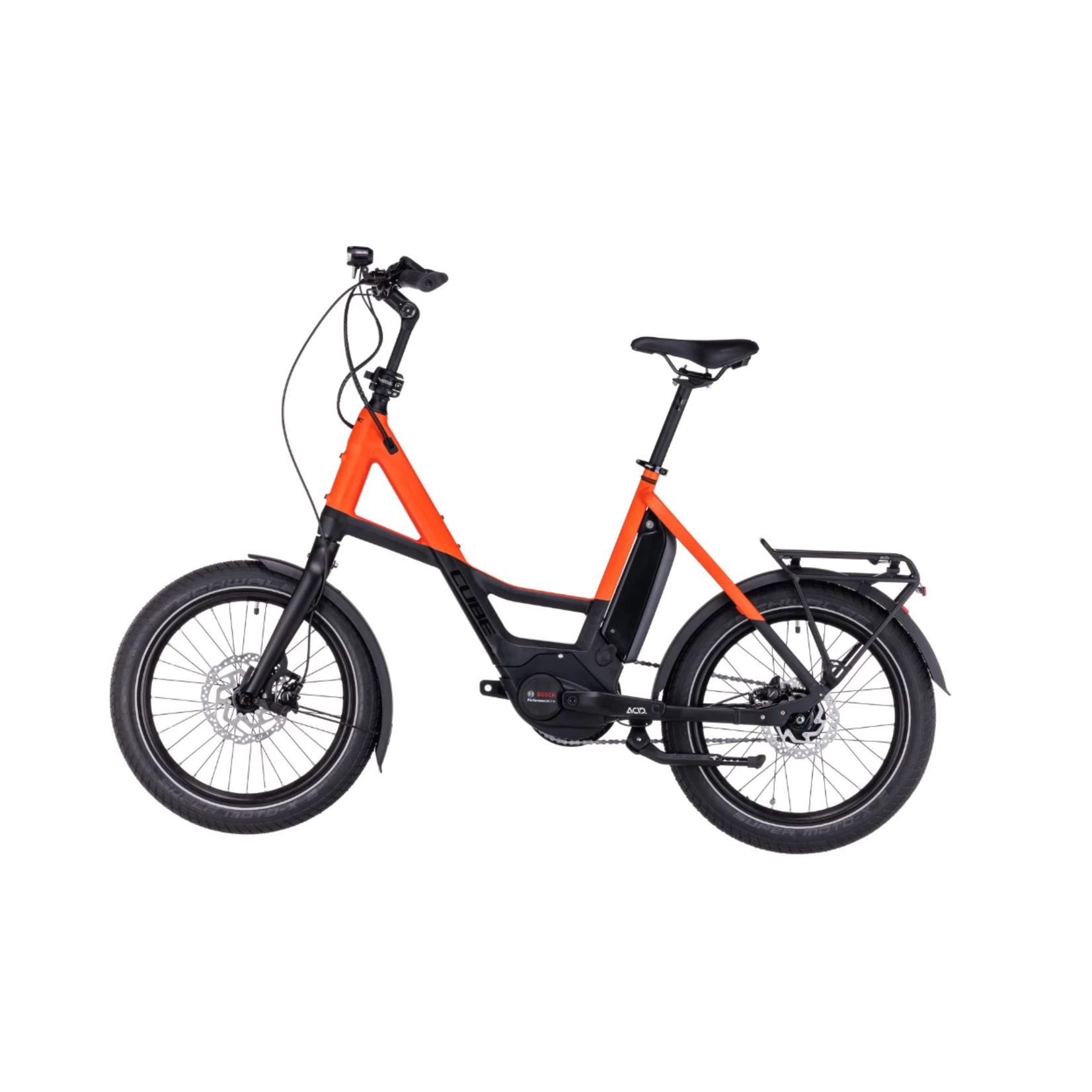

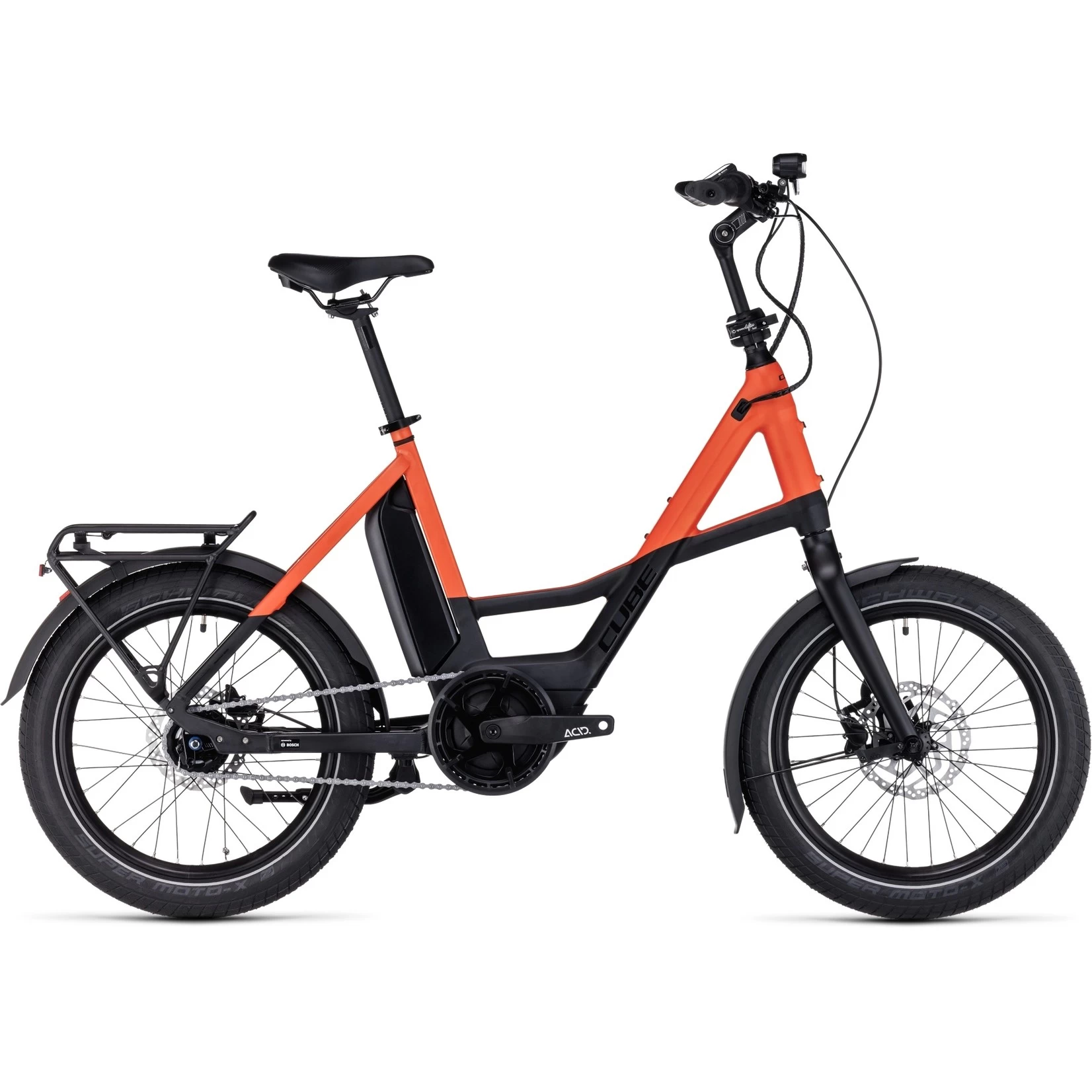

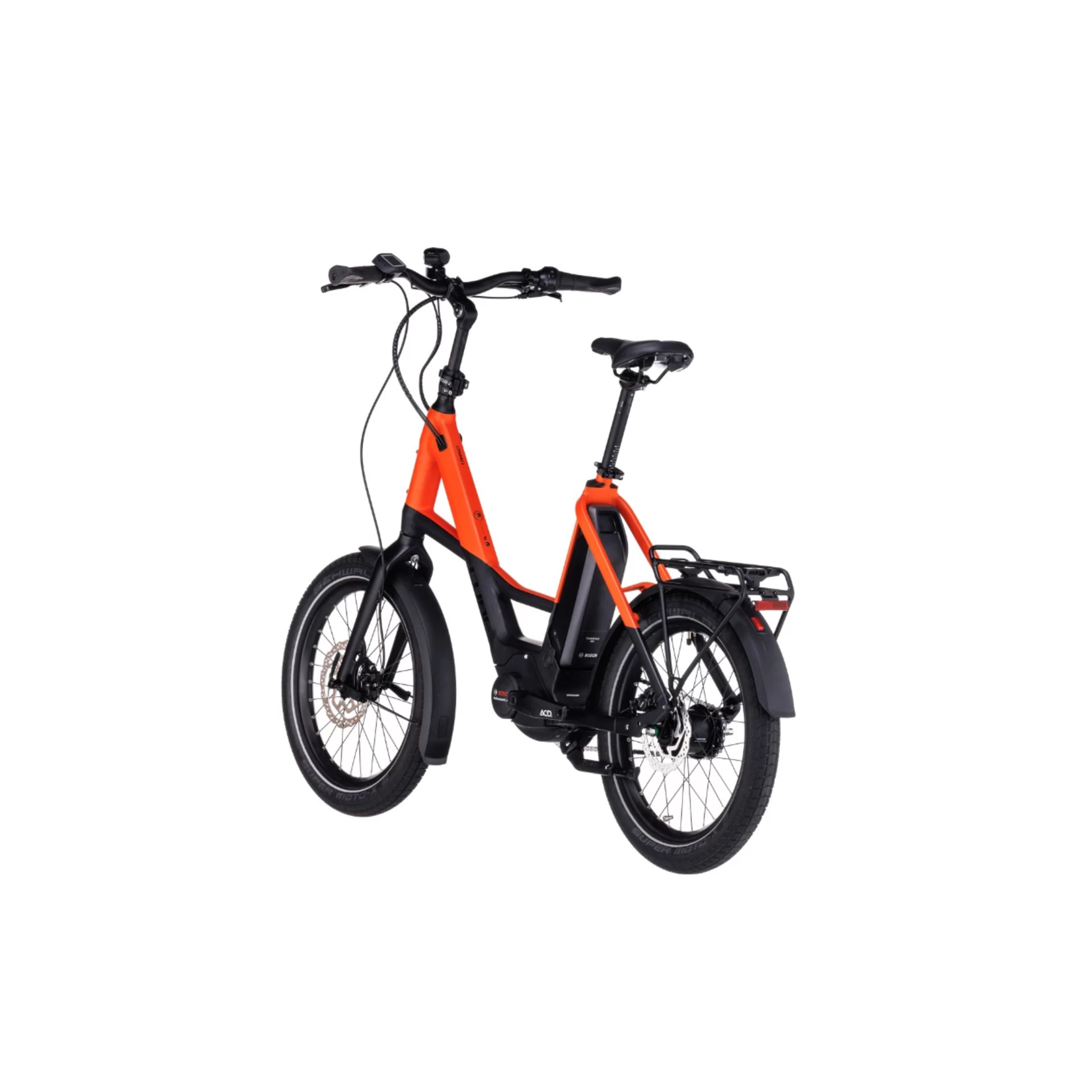

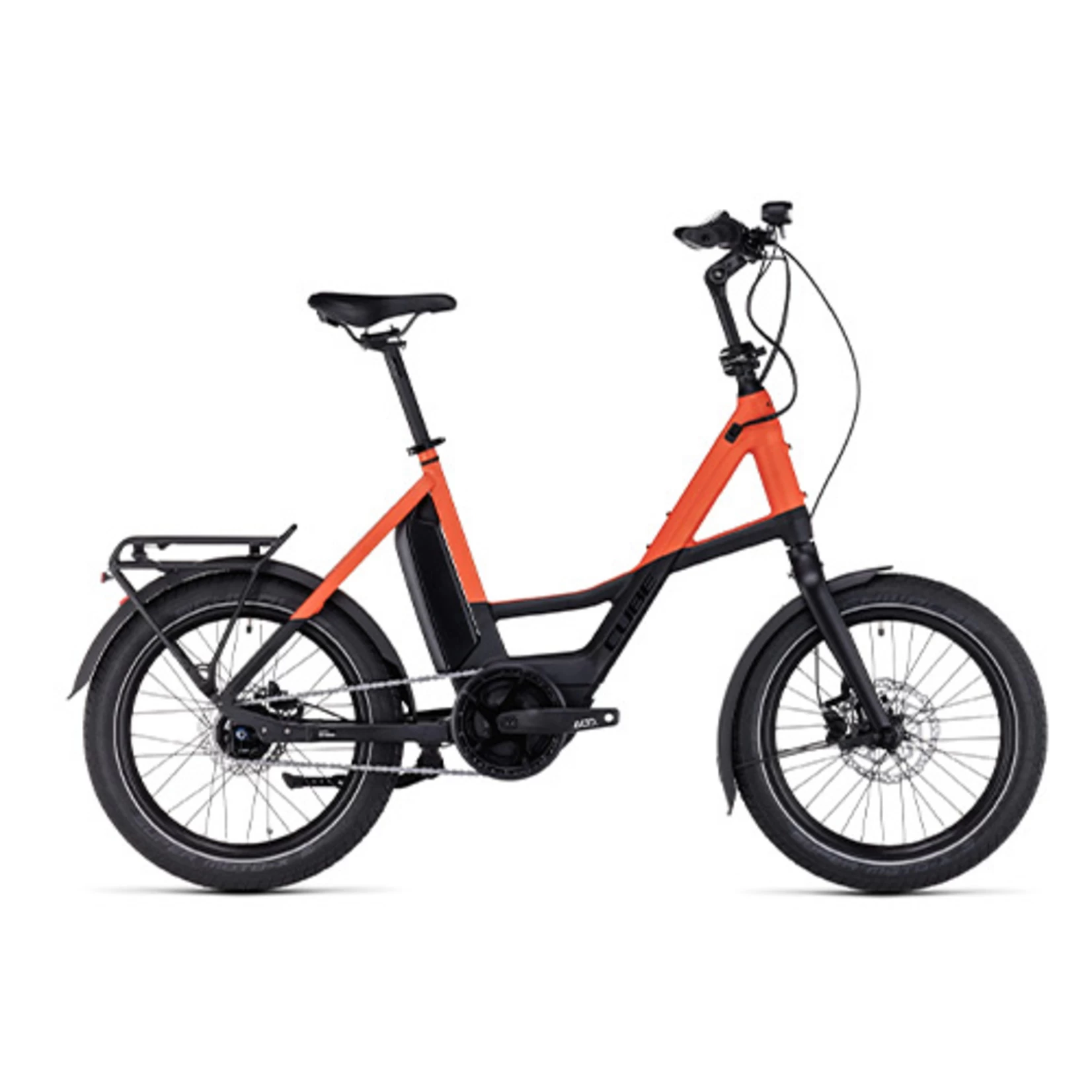

CUBE COMPACT HYBRID 500 BLACK/ SPARKLE ORANGE 2023

At CUBE we know that the simplest solutions are often the best. The Compact Hybrid’s cross-braced down tube is elegant, stiff and strong. It also makes this an easy bike to step in and out of, as well as providing a convenient carrying handle. There’s a long head tube for accurate, safe steering. The smooth and powerful Bosch Performance drive unit lives in a custom housing at the bottom of the frame, with the battery tucked out of the way of both luggage and rider. Quick and easy saddle and handlebar adjustments allow one bike to fit the widest possible range of riders. And the front luggage carrier increases carrying capacity and adds even more versatility. For commuting, for popping to the shops, for camping, for exploring. For you.

THE COMPACT HYBRID IS EVERY BIT AS VERSATILE AND EASY TO LIVE WITH AS ITS NAME – AND LOOKS – SUGGEST. BOSCH POWER, CLEVER CUBE DESIGN, PRACTICAL EVERYDAY ACCESSORIES AND ONE-SIZE-FITS-ALL GEOMETRY ARE THE PERFECT FIT FOR COMMUTING, FOR CAMPING, FOR EVERYONE.

High performance aluminium is all about extracting the best possible performance from this strong, durable material. We select precisely the right grade of alloy for our needs, carefully tweak tube profiles to suit each application, and then meticulously weld each frame. It’s your guarantee of a light, strong, durable and safe bike.

Smooth Welding isn’t easy, but worthwhile things usually aren’t. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.

As you might expect, our Comfort Ride Geometry delivers maximum comfort on two wheels. Because after all, who doesn’t want a comfortable ride? We sweated the details of frame angles and dimensions to create a natural-feeling ride position and the ideal combination of stability and agility, so you not only feel comfortable but safe, too.

A luggage carrier needn’t be a complicated, ugly addition to your bike. Our Semi-Integrated Carrier is so neat, you’ll barely notice it… until it’s time to carry something back from the shops, or ride to work, or nip across town to fetch something. Sturdy and adaptable, it’s just what you need to make day-to-day life a little easier.

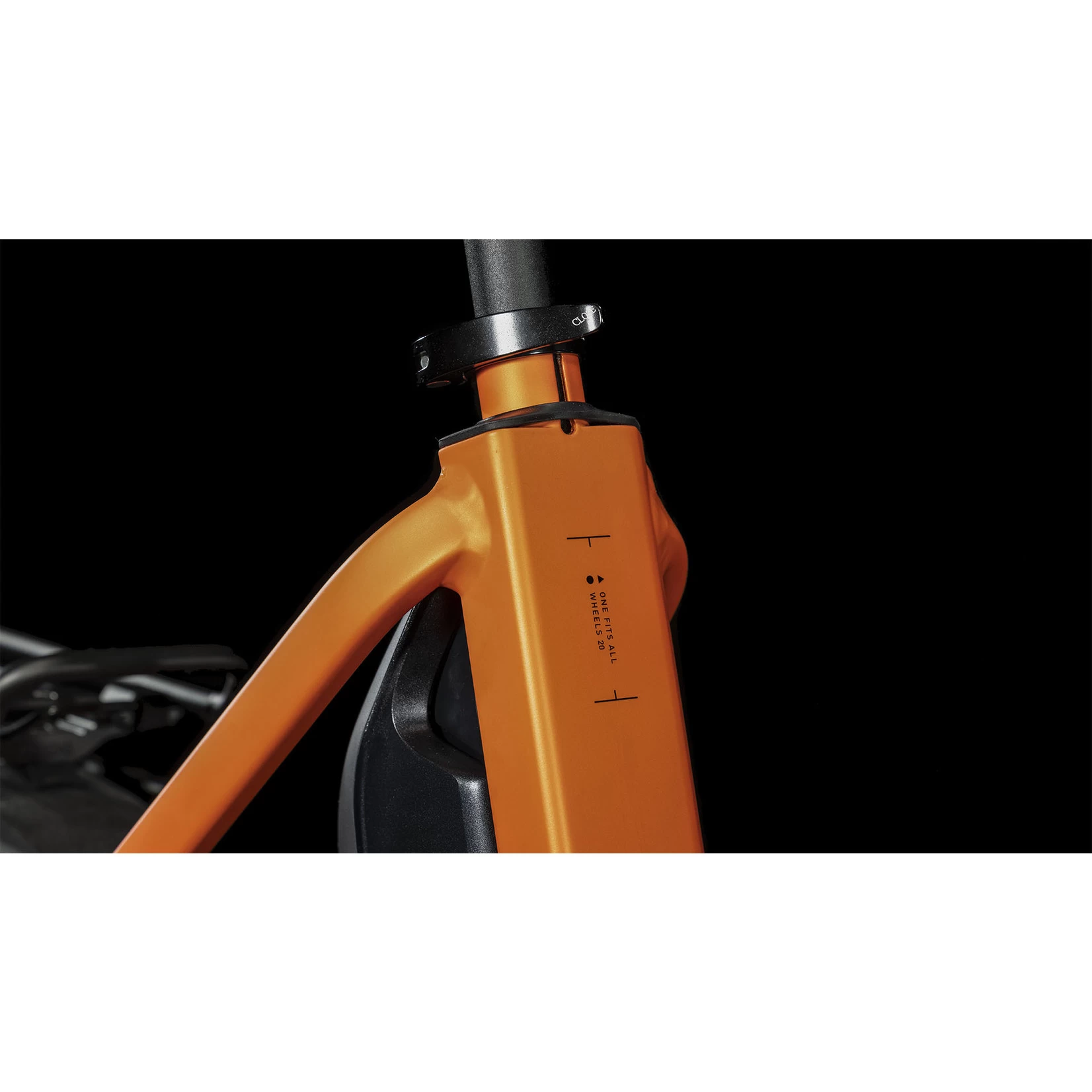

The flexible ONE SIZE CONCEPT makes a bike so versatile it can be used by anyone, of any height. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m), so everyone can have a comfortable, relaxing ride. It’s the ideal bike to share: for the whole family, partners, friends, neighbours or colleagues. Or keep it for yourself as the perfect companion for wherever life takes you.

Our Compact Hybrid is already a versatile beast, packing an urban traffic-beating punch way beyond its diminutive dimensions. But if you need a little extra carrying capacity, the purpose-designed Front Carrier makes it even more adaptable. Neat, stable and secure, it provides an easy way to carry an extra bag to work, to the shops, or just because.

Developed specifically for our versatile Compact Hybrid, the RI-Link Rear Carrier is as elegant as the bike it’s designed to fit. It provides a sturdy and adaptable carrying platform for whatever you need to take with you. There’s a strong spring clamp, room for ACID mudguards and compatability with RI-Link components.

SPECIFICATIONS

FRAME	Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
SIZE	One Size
RIGID FORK	Aluminium 20″
DRIVE UNIT	Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
BATTERY	Bosch PowerPack 500
DISPLAY	Bosch Purion
CHARGER	Bosch 2A
BRAKE SYSTEM	Shimano BR-MT200, Hydr. Disc Brake (180/160)
SHIFTERS	Shimano Nexus SL-C7000-5, Revoshift
CRANKSET	ACID E-Crank, 165mm, 44T
SPROCKET	Shimano Nexus CS-C7000, 23T
CHAIN	KMC Z610
HANDLEBAR	Cube Comfort Trail Bar 680mm

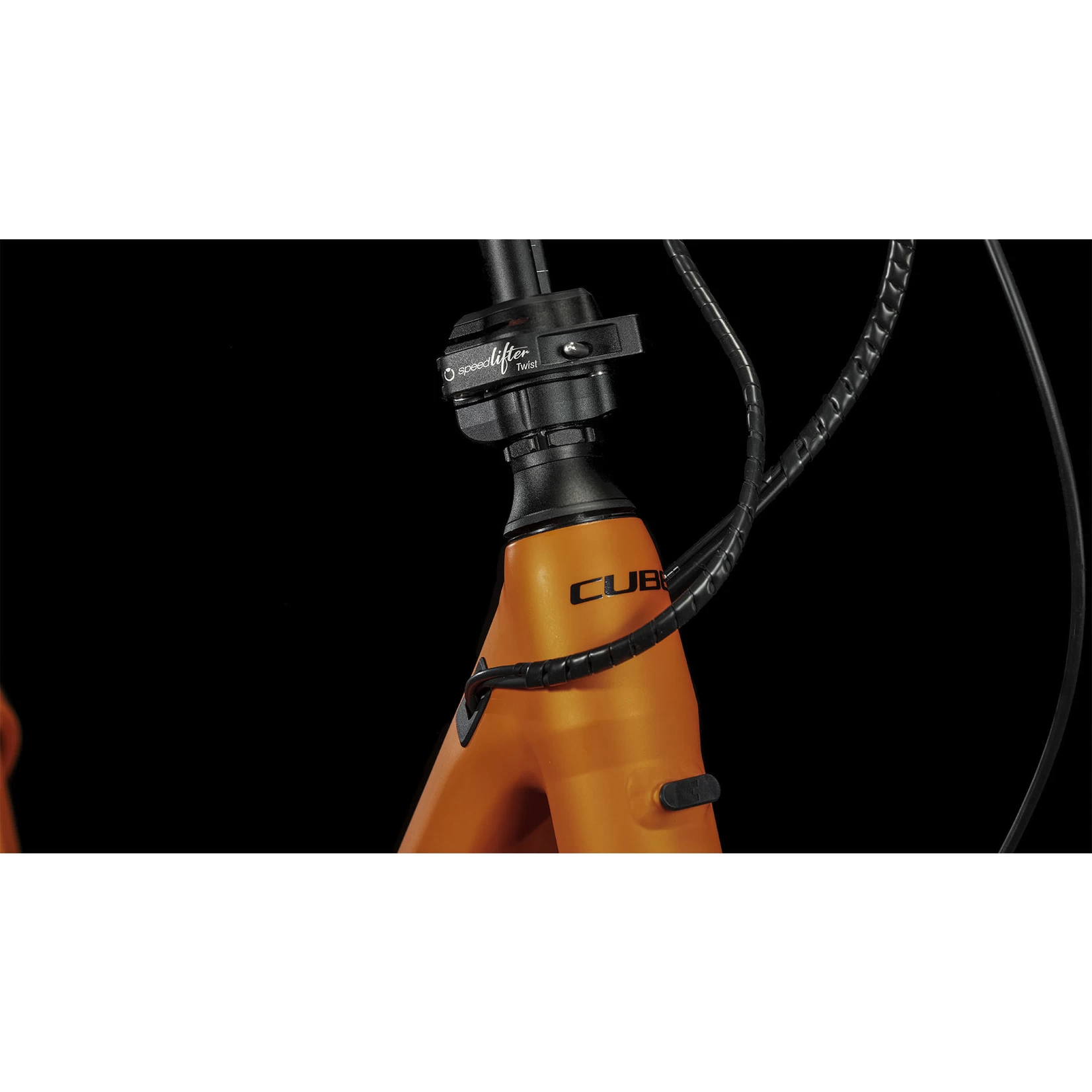

STEM	BySchulz Speedlifter Twist Pro SDS T15
GRIPS	ACID Travel Comfort Gripshift
HEADSET	Cube H835D3, Semi-Integrated, Sealed bearing
FRONT HUB	Shimano HB-TX505, QR, Centerlock
REAR HUB	Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut
RIMS	CUBE EX30, 32H, Disc, Tubeless Ready
TYRES	Schwalbe Super Moto-X, Double Defense, 62-406
SEAT POST	Newmen Evolution, 27.2mm
SADDLE	Natural Fit Sequence
PEDALS	CUBE PP MTB
FRONT LIGHT	CUBE Shiny 50 Lux, 12V, DC
REAR LIGHT	ACID Mudguard Rear Light PRO-E, 12V, DC
KICKSTAND	CUBE CenterStand
MUDGUARDS	ACID 75-406
BELL	Ring Bell
CARRIER	ACID 20″ Semi-Integrated Carrier, ACID RILink Adapter Compatible
WEIGHT	23,8 kg
COLOUR	black´n´sparkorange
ART. NO	689110
