PRODUCT DESCRIPTIONS
Built around Bosch’s powerful third-generation motor and PowerTube battery, the Touring Hybrid ONE’s low centre of gravity ensures safe, intuitive handling. There’s a choice of frames – classic Men’s, Trapeze, or Easy Entry – and a range of sizes in each, so you’re sure to find the perfect fit for you. And whichever one you choose, the Efficient Comfort Geometry will put you in a natural-feeling, comfortable position for any journey, whether it’s a short ride to the shops or a longer route at the weekend.
SPECIFICATIONS
Frame
frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Semi-Integrated Carrier
size
Men: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: XS (46cm), S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
Suspension
Suspension fork
SR Suntour NVX30 Coil, 100mm
E-bike system
drive unit
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
battery
Bosch PowerTube 500
display
Bosch Purion
charger
Bosch 2A
Drivetrain & brakes
brake system
Shimano BR-MT200, Hydr. Disc Brake (180/180)

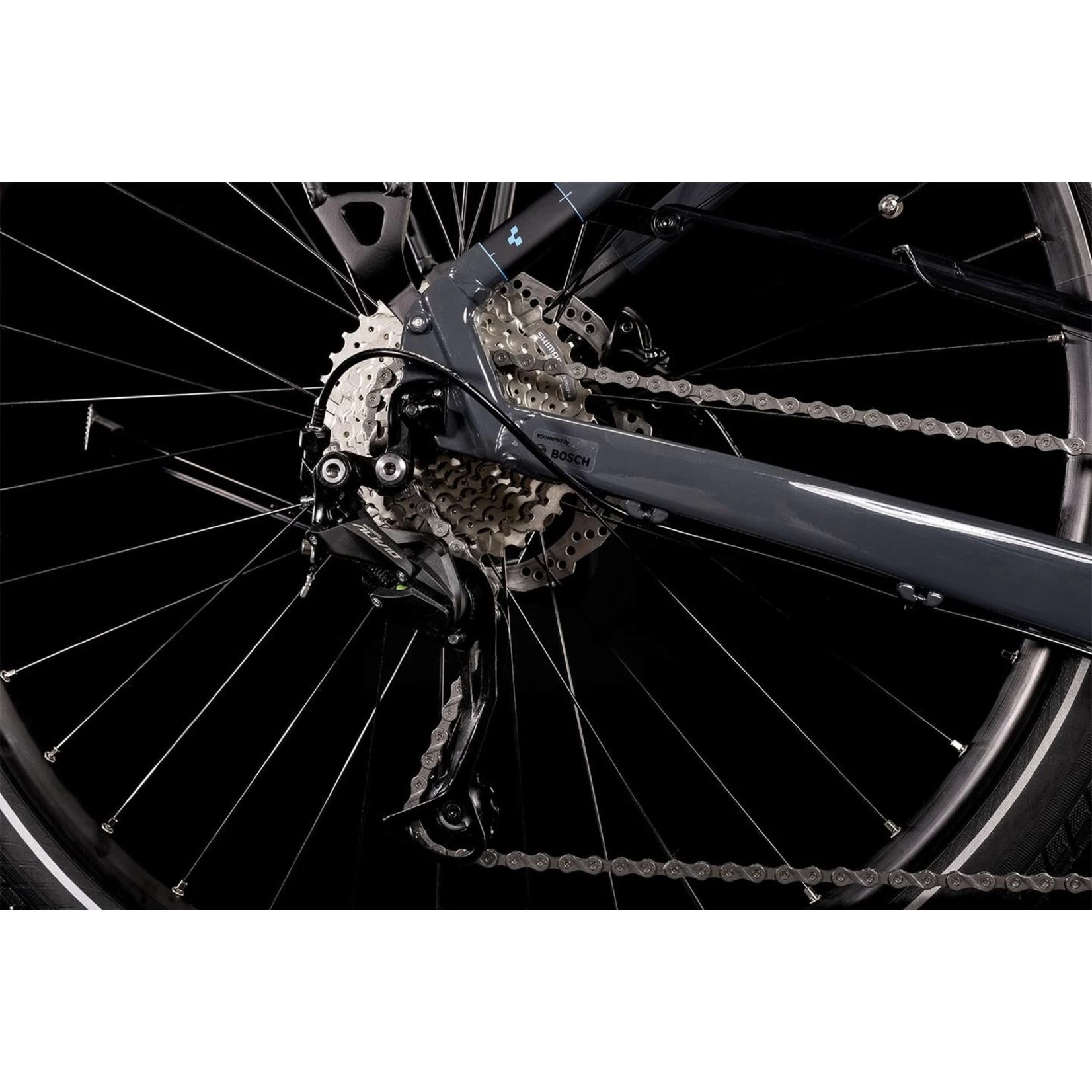

rear derailleur
Shimano RD-M3100-SGS, 9-Speed
shifters
Shimano SL-M3100-R, Rapidfire-Plus
crankset
ACID E-Crank, 40T, 175mm (EE: 170mm)
cassette
Shimano CS-HG201, 11-36T
chain
KMC X9
Cockpit
handlebar
CUBE Comfort Trail Bar, 700mm
Stem
CUBE Performance Stem Pro, 31.8mm
grips
Natural Fit Comfort
headset
M/Z: ACROS AZF-1039, 1 1/8″ straight, Top Zero-Stack 1 1/8″ (ZS 44mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8″ straight, Top Zero-Stack 1 1/8″ (ZS 44mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm)
Wheels
front hub
Shimano HB-TX505, QR, Centerlock
rear hub
Shimano FH-TX505, QR, Centerlock
rims
CUBE EX23, 36H, Disc, Tubeless Ready
tyres
Schwalbe Big Ben, Active, K-Guard, 55-622
Finishing kit
seat post
CUBE Performance Post, 30.9mm
saddle
Natural Fit Sequence Comfort
pedals
ACID PP Trekking
front light
CUBE Shiny 50 Lux, 12V, DC
rear light
ACID Mudguard Rear Light PRO-E, 12V, DC
kickstand
CUBEstand Cmpt
mudguards
ACID 65 BB-Mount
bell
Easy Bell
carrier
ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible
Product information
weight
25,1 kg
colour
grey´n´blue
Art. No
531051
Because of the problems in the delivery chain arising from the current COVID-19 situation, the bike can be delivered with modifications.
