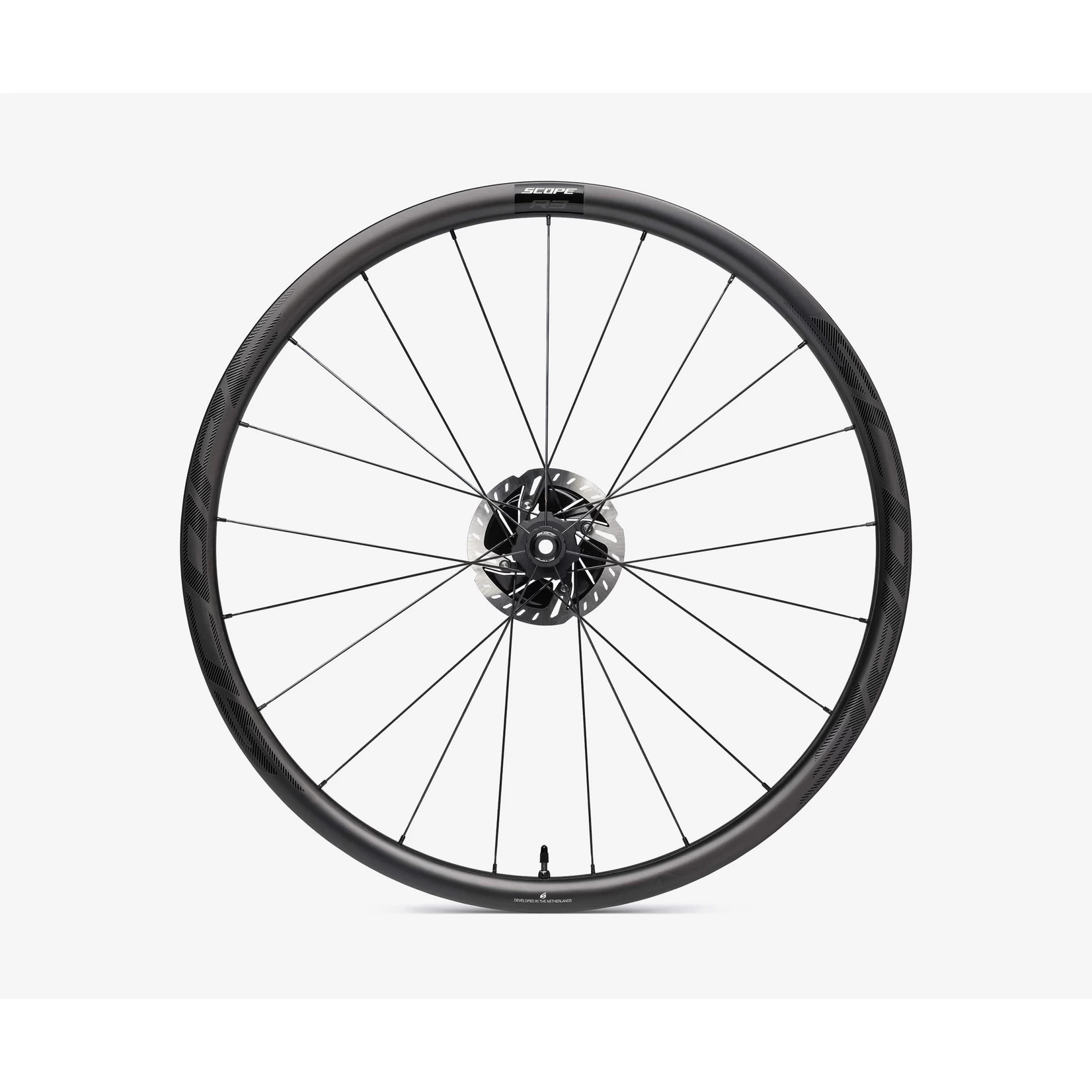

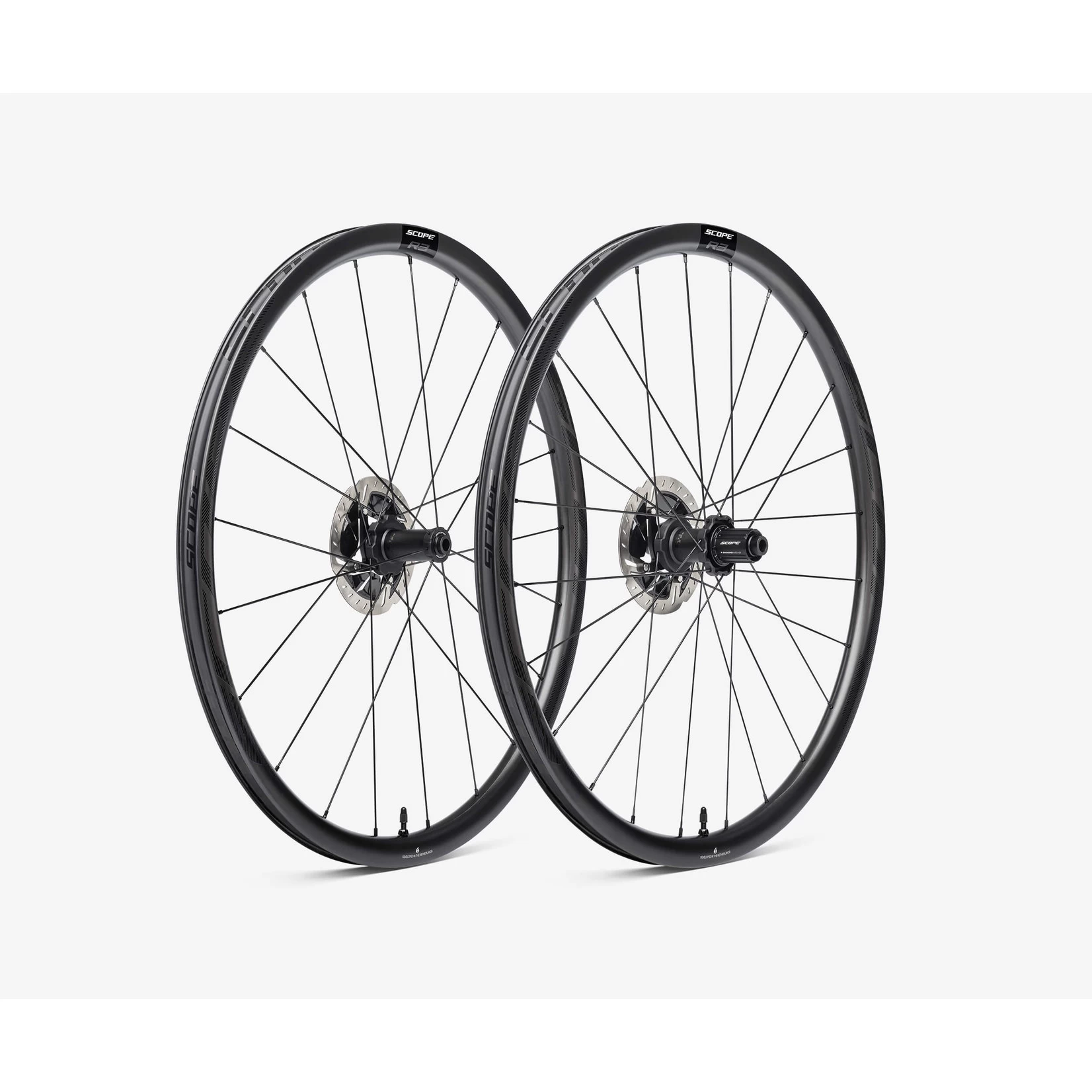

SCOPE R3 DISC BRAKE WHEELSET

We develop our wheels in-house without any compromise to achieve the perfect balance between aerodynamics, weight, stiffness and durability. Each single detail of our wheels is developed from our headquarters in The Netherlands.

Optimized Aerodynamics

Ultra-light and durable

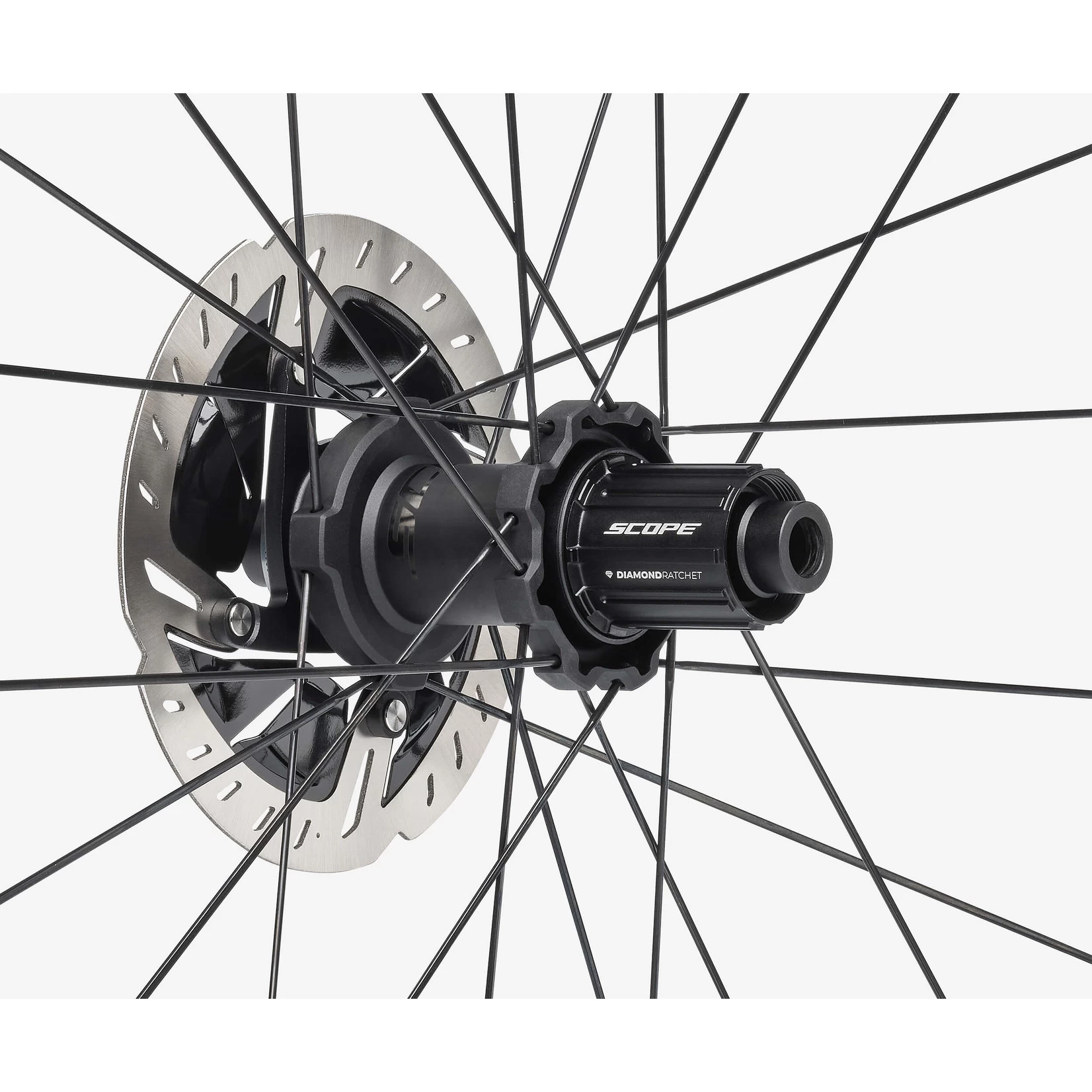

The hubs feature our Diamond hardened Ratchet engagement System for direct engagement, improved durability, and a significant reduction in weight.

Lightweight

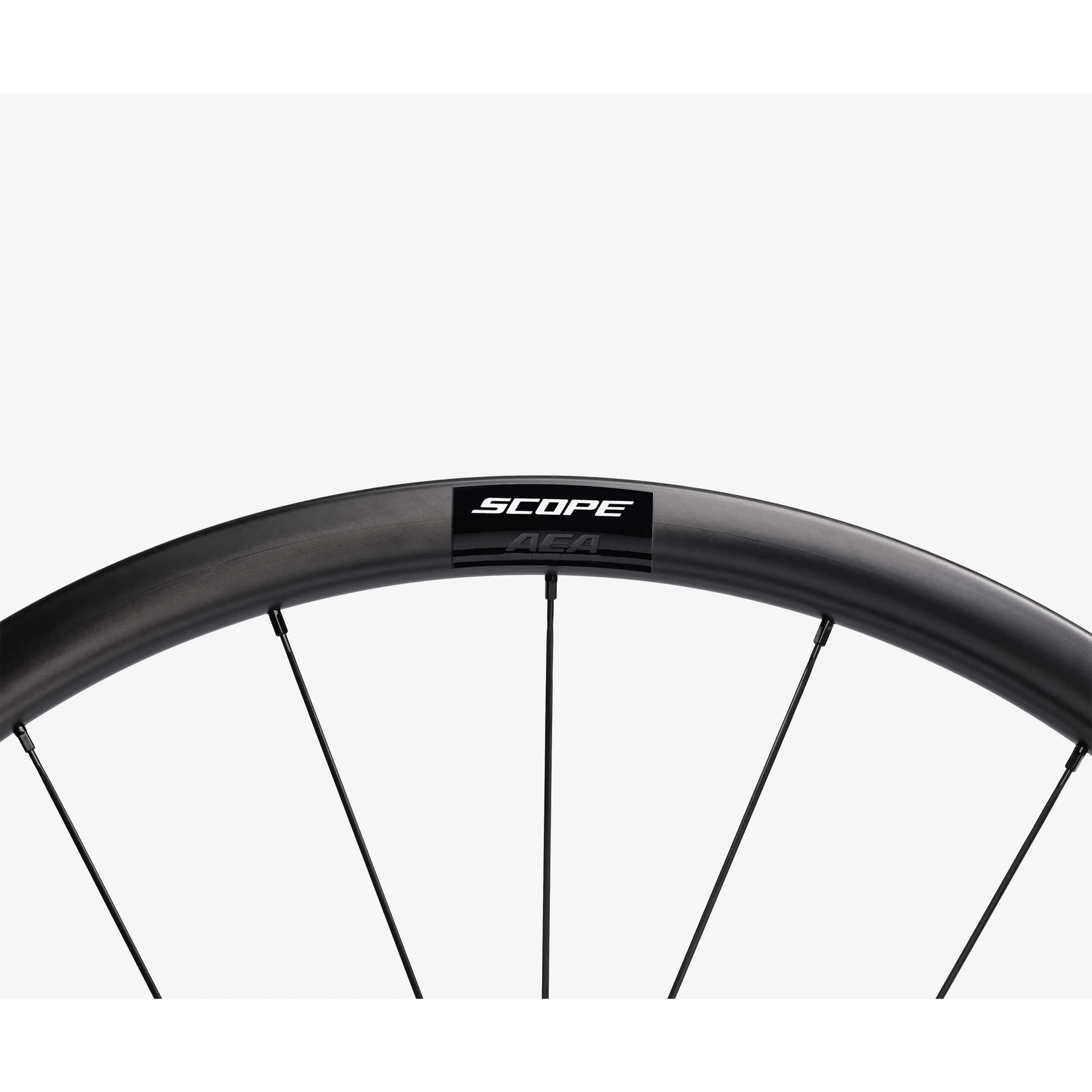

With our Local Reinforcement carbon technology we increase the number of carbon layers only around the spoke holes on the inside of the rim. This way we significantly reduce its weight, while preserving the strength and stiffness.

Perfect tire fit

The unique geometry of our Scope Tubeless System ensures easy mounting, direct inflation, long-lasting pressure and compatibility with all (tubeless) tires.

Specifications

General

​ ​

Total set weight

• Disc: 1487 gram
• Rim: 1359 gram

Recommended tyre width

• Road tires: 25 – 30mm
• Gravel tires: 35 – 57mm

Maximum rider weight

• Disc: no weight limit
• Rim: 95kg



Rims*



Rim height

• 30 mm
• 30 mm

External rim width

• 28 mm
• 28 mm

Internal rim width

• 21 mm
• 21 mm

Tubeless (ready)

• Yes
• Yes

* Compatible with all clincher tires in combination with inner-tubes as well

Hubs



Hubs

• Scope R-series
• Scope R-series

Bearings

• SKF*
• SKF*

Engagement System

• Diamond Ratchet 36T**
• Diamond Ratchet 36T**

Axle System (Disc Brake)***

• TA 100 x 12 mm
• TA 142 x 12 mm

Axle System (Rim Brake)

• QR 100 mm
• QR 130 mm

Brake interface (Disc)

• Centerlock
• Centerlock



* CeramicSpeed bearings optionally
** 48T optionally
*** Special end-caps available for different axle configurations

Spokes



Spoke count (Disc Brake)

• 21
• 24

Spoke count (Rim Brake)

• 18
• 21

Spoke type (Disc Brake)

• SAPIM CX – SPRINT
• SAPIM CX – SPRINT

Spoke type (Rim Brake)

• SAPIM CX – RAY
• SAPIM CX – RAY
