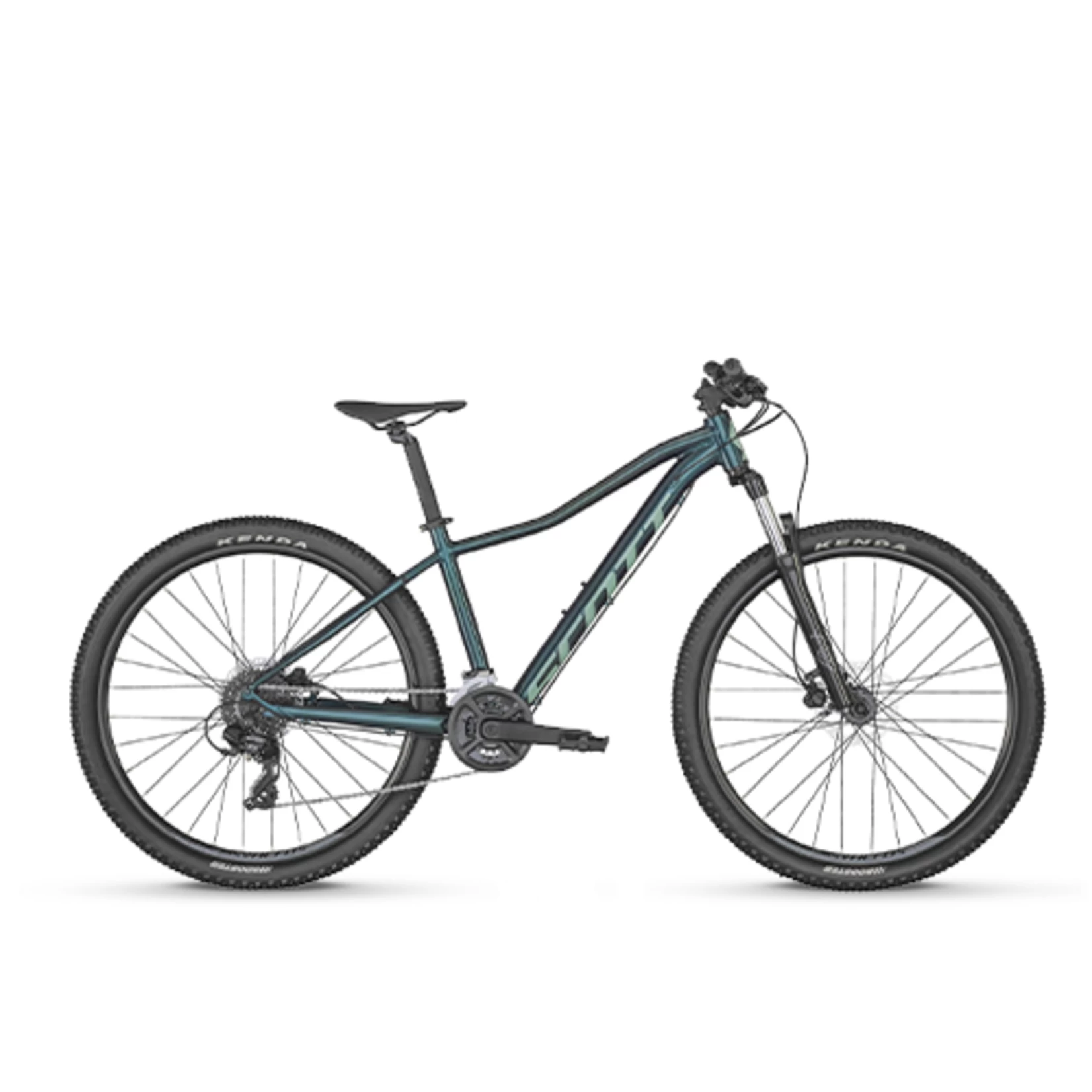

SCOTT CONTESSA ACTIVE 50

KEY FEATURES

• Active 700/900 Alloy Frame
• Suntour XCE28 100mm Fork
• Shimano TX800 16 Speed
• Tektro Hyd. Disc Brakes
• Kenda Booster

The SCOTT Contessa Active 50 is a hard tail mountain bike that features a light Alloy Frame. The series comes fully equipped with a Suntour fork, perfect for those always on the go.

SPECIFICATIONS:

FRAME	Contessa Active 700/900 series / Alloy 6061 Custom Tubing OLD 135mm / BSA73 Internal shifting Cable Routing / replaceable hanger
FORK	Suntour XCE28 100mm travel
REAR DERAILLEUR	Shimano Tourney RD-TX800 16 Speed
FRONT DERAILLEUR	Shimano FD-M315-TS / 31.8mm
SHIFTERS	Shimano SL-M315 R-fire plus / 2 way release w/gear indicator
CRANKSET	Prowheel TM-CY01 36X22 w/CG
BB-SET	Feimin FP.B908N BB73 / square taper
CHAIN	KMC Z8.3
CASSETTE	Sunrace CSM55 8AV / 11-34T
BRAKES	Tektro HDM276 / Hydr. Disc
ROTOR	Tektro / 6 bolt / F&R 160mm
HANDLEBAR	HL MTB-AL-312BT / 680mm / black / 12mm rise Syncros Women Pro grip
H’STEM	TDS-C301-8FOV / 10° / 31.8 / Black
SEATPOST	HL SP C207 31.6mm / 350mm / Black
SEAT	Syncros Savona 2.5 V-Concept
HEADSET	Syncros OE Press Fit / 1 1/8″ OD 50mm / ID 44mm
HUB (FRONT)	Formula DC-19 FQR Disc
HUB (REAR)	Formula DC-25 8s RQR Disc
SPOKES	14 G / stainless / black
RIMS	Syncros X-20 Disc 32H / black
FRONT TIRE	Kenda Booster 2.4″ / 30TPI
REAR TIRE	Kenda Booster 2.4″ / 30TPI
PEDALS	Feimin FP-873-ZU
APPROX WEIGHTS IN KG	14.50
APPROX WEIGHTS IN LBS	31.97

Manuals:

General Manual – Link

MTB Pedelec Manual – Link
