Name: SHIMANO FRONT CHAINWHEEL TIAGRA FC-4700
SKU: SKU-000-1335LKbi
Availability: InStock

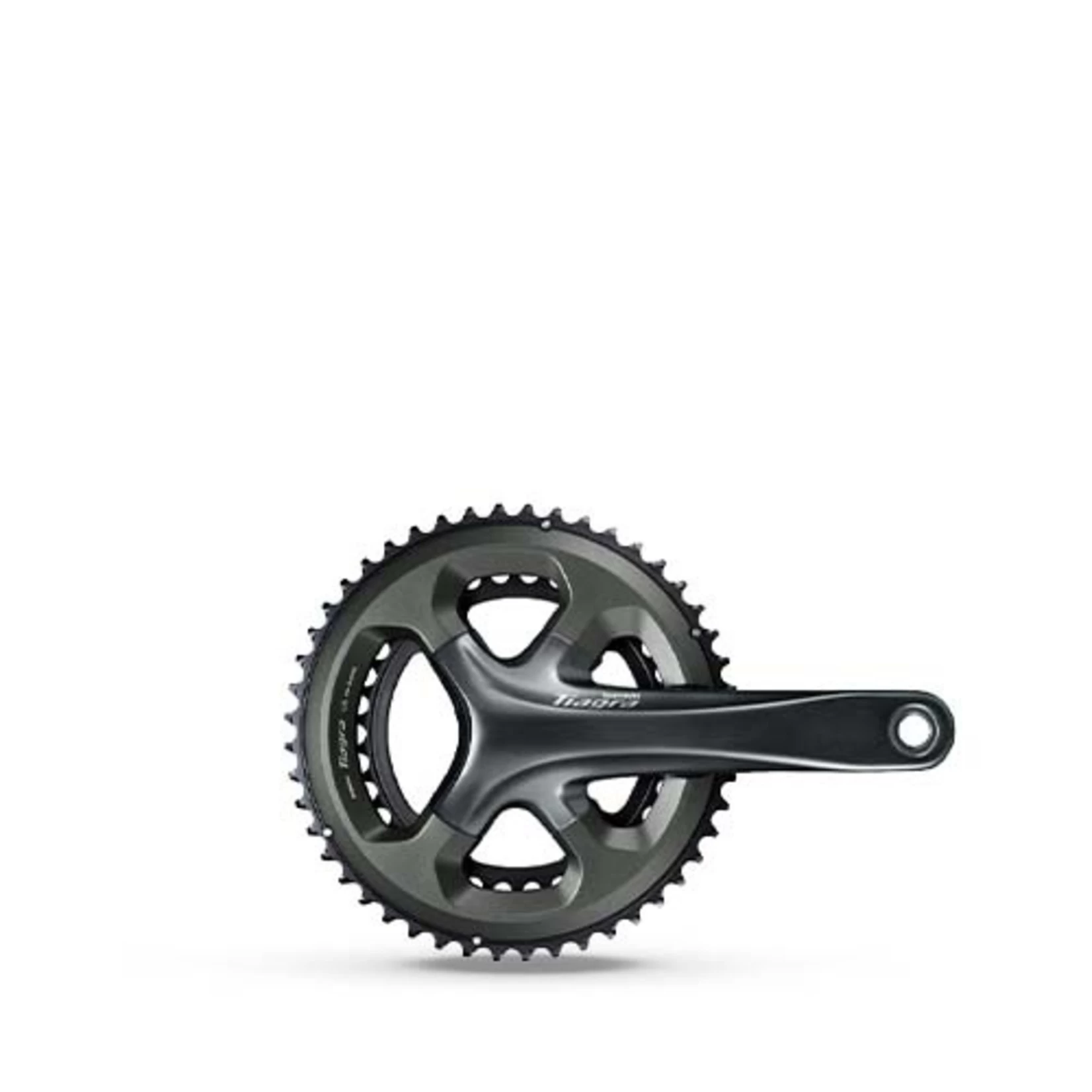

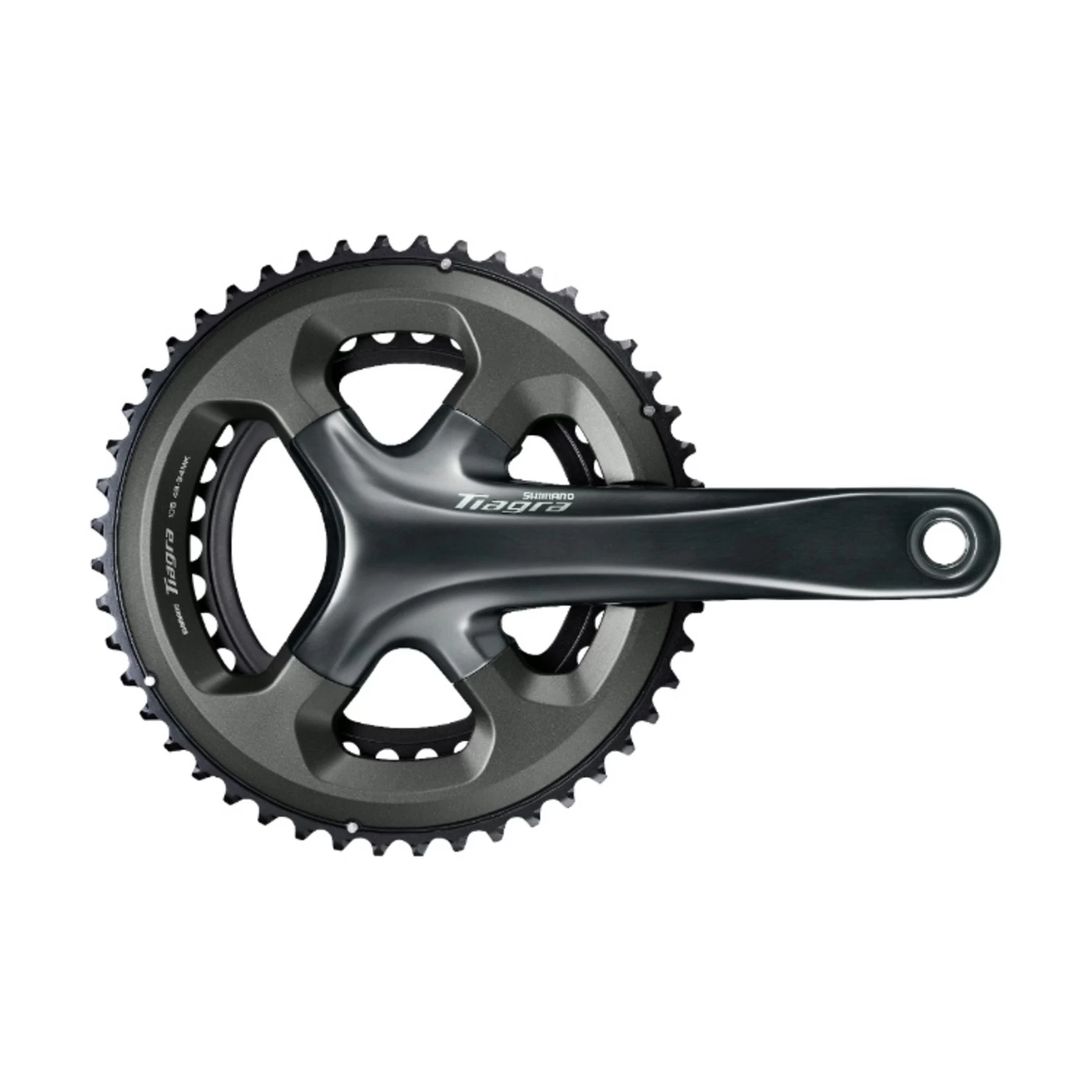

SHIMANO FRONT CHAINWHEEL TIAGRA FC-4700

Original price was: $125.00.Current price is: $87.50.

SKU: SKU-000-1335LKbi Category: Parts

100% Quality Promise

Quick responses, top-notch service.

Sustainable materials, for a better tomorrow.

Quality You Can Count On

SHIMANO TIAGRA – Road Crankset – 2×10-speed

The new SHIMANO TIAGRA FC-4700 crank balances weight and efficiency without sacrificing stiffness. It is offered in 52-36, 50-34T, and a new 48-34T chainring options and 165, 170, 172.5, and 175mm crank arm lengths

FEATURES

Optimum power transfer motivates riders to pedal further and faster
Optimal balance between stiffness and lightweight
Reinforced 4-arm construction
110 PCD
Optimized gear shape for HG-X chain
Gear combinations to match more riding styles
Additional gear combination: 48-34T
Gear combination: 50-34T, 52-36T, 48-34T
Crank arm length: 165, 170, 172.5, 175

PRODUCT SPECIFICATIONS
MODEL NO	FC-4700
SERIES	TIAGRA 4700 Series
Color	Series color
Threaded bottom bracket shell width (mm)_70
2-PIECE CRANKSET
Chainring combination	48-34T 50-34T 52-36T
Compatible bottom bracket type_Outboard
Crank fixing screw included
Crank arm length (mm)_165
Crank arm length (mm)_170
Crank arm length (mm)_172.5
Crank arm length (mm)_175
Spider/Gear arms	4
Optional chain guard_Without chain/bash guard
Recommended bottom bracket_Press-fit	BB-RS500-PB
Recommended bottom bracket_Threaded (normal)	BB-RS501
