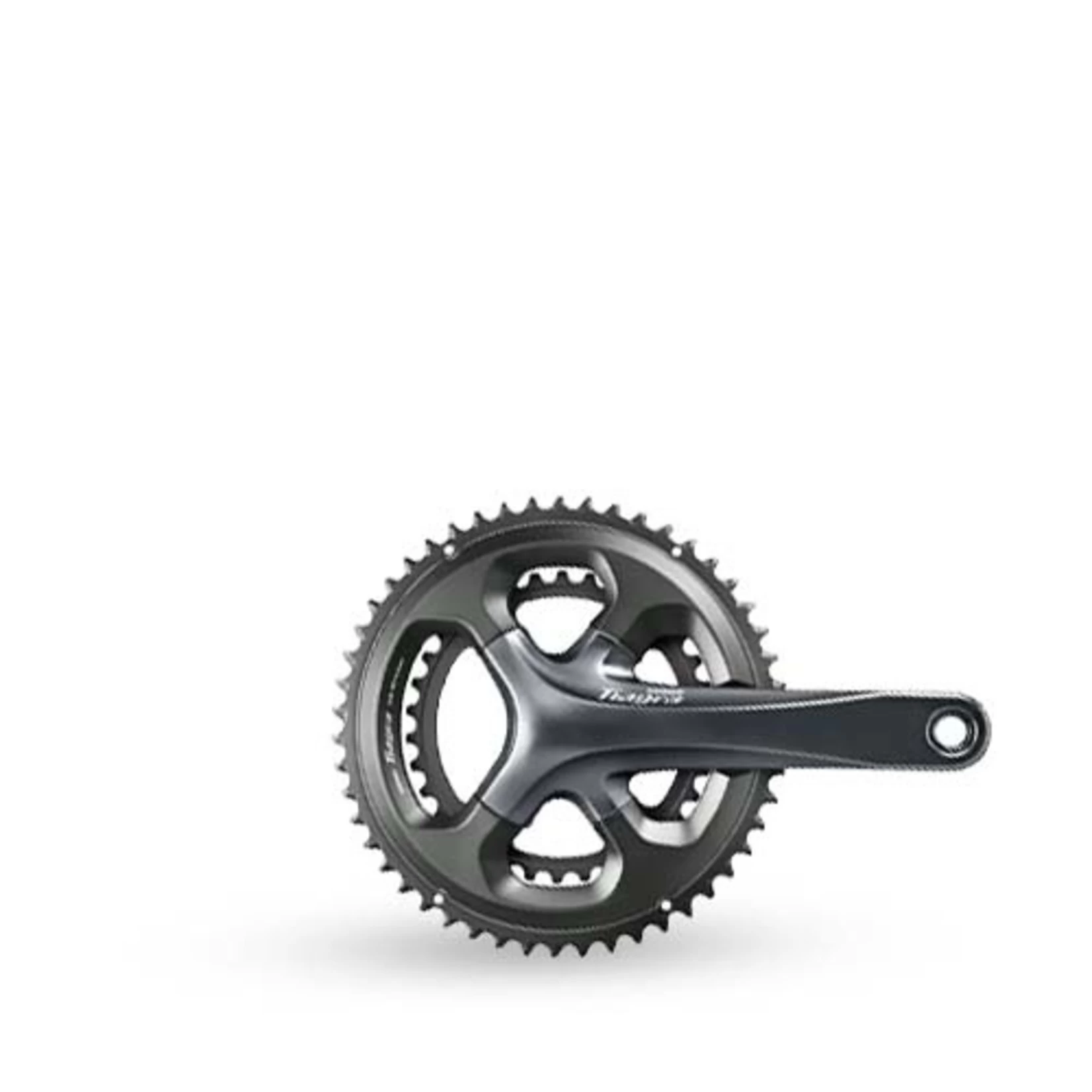

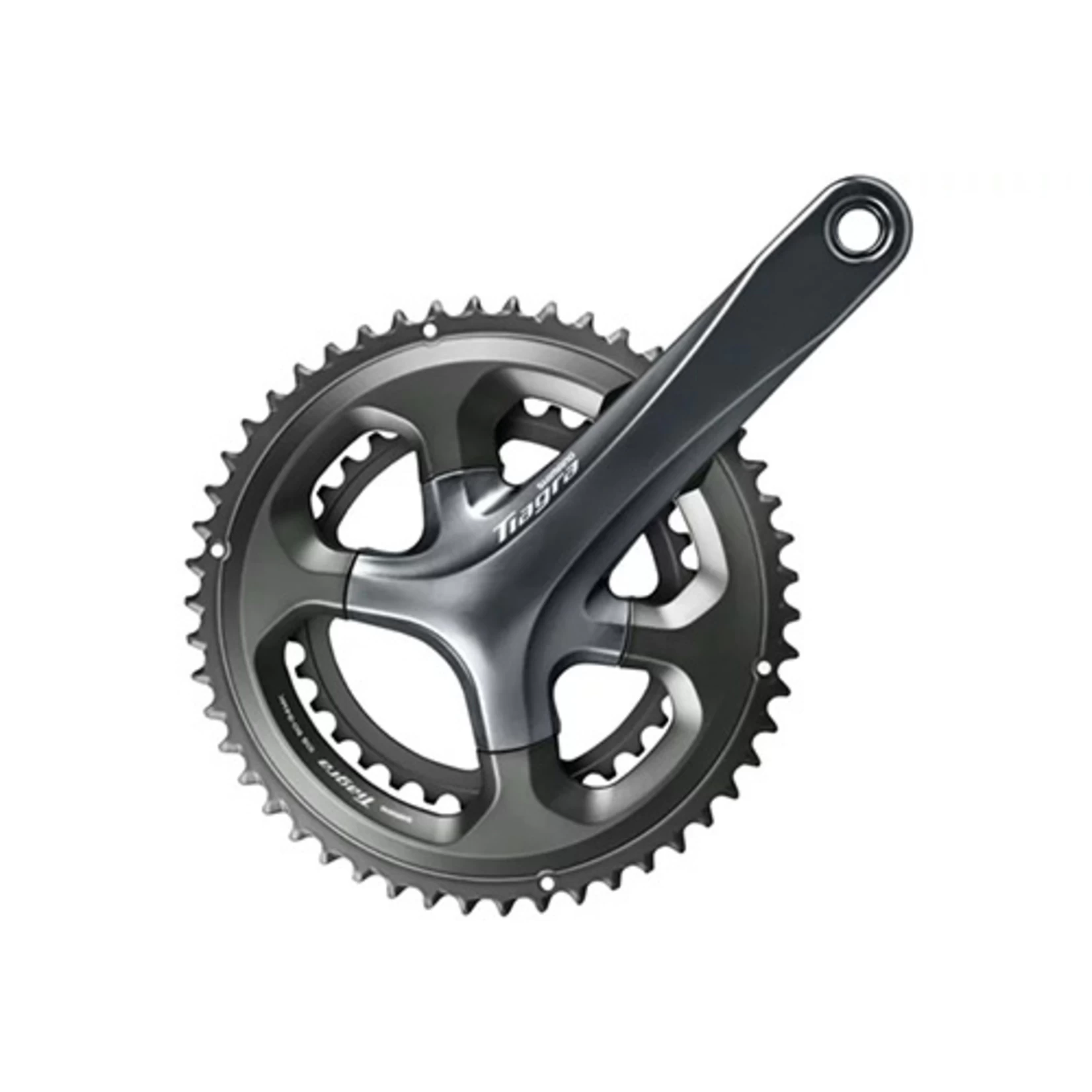

SHIMANO TIGAR 4700 10 SPEED CHAINSET

Shimano Tiagra 4700 10sp Road Double Chainset

The design of the Tiagra 4700 10 Speed Road Double Chainset is influenced by Shimano’s higher-level sets and boasts a high-quality grey anodised finish. Ready for racing and endurance rides, this durable and reliable road bike crankset is compatible with 10-Speed HG-X chains and all 10-Speed road bike drivetrains. This chainset comes with 52/36T chainrings, but as it uses Shimano’s asymmetric 4×100 bolt pattern, you can easily change to a larger 53/39T double chainring system or a compact 50/34T setup.

Features:

• Material: Crank Arms: Anodised Aluminium; Chainings: Lightweight Aluminium
• Axle Diameter: 24mm (Designed to work with HollowTech II type bottom bracket cups – sold separately)
• Speed: 2×10-Speed
• Compatibility: All 10-Speed road bike drivetrains
• Chainline: 43.5mm
• Q Factor (distance between pedal mounts): 150mm
• Bolt Circle Diameter (BCD): 4x110mm (Shimano asymmetric)
• 5 Arm or 4 Arm: 4 arm
• Bottom Bracket Included: No
• Chainrings Included: Yes
• Use: Road
• 2-piece cap-free design is quick and easy to install whilst being lighter and stiffer than a traditional crank/bottom bracket assembly
• SG-X chainrings feature strategically placed chain pick-up pins and tooth profiles to ensure fast and positive shifting
• Manufacturer’s Part Number: FC-4700
• Weight: 910g

Please Note: The bottom bracket is NOT included.

Technologies:

• Hollowtech II: The concept of Hollowtech II technology is focused on producing a superior crankset, which will maximise a rider’s power transfer. The rigidity of the crankset ensures pedalling efficiency while its low weight, a key element of the crankset, aids in cycling longer distances. Naturally, Shimano strove for the optimum balance between the conflicting needs of stiffness while producing a lightweight crank. For most frames, Hollowtech II with its 24mm axle can set the bearing position outside of the frame to provide better weight distribution and more stability. Hollowtech II bottom brackets also have high-precision seals to increase durability, maintaining excellent rotating performance for long periods
