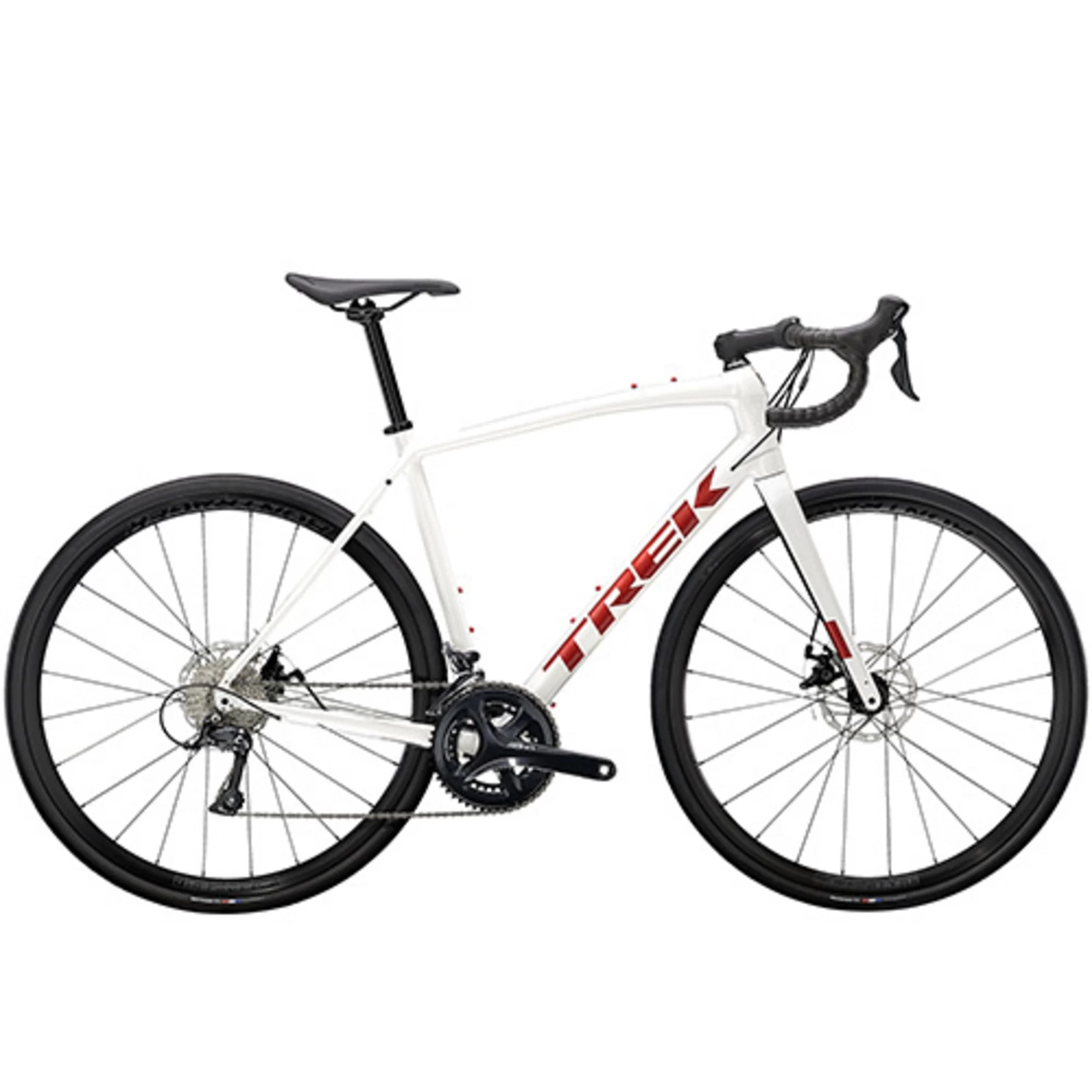

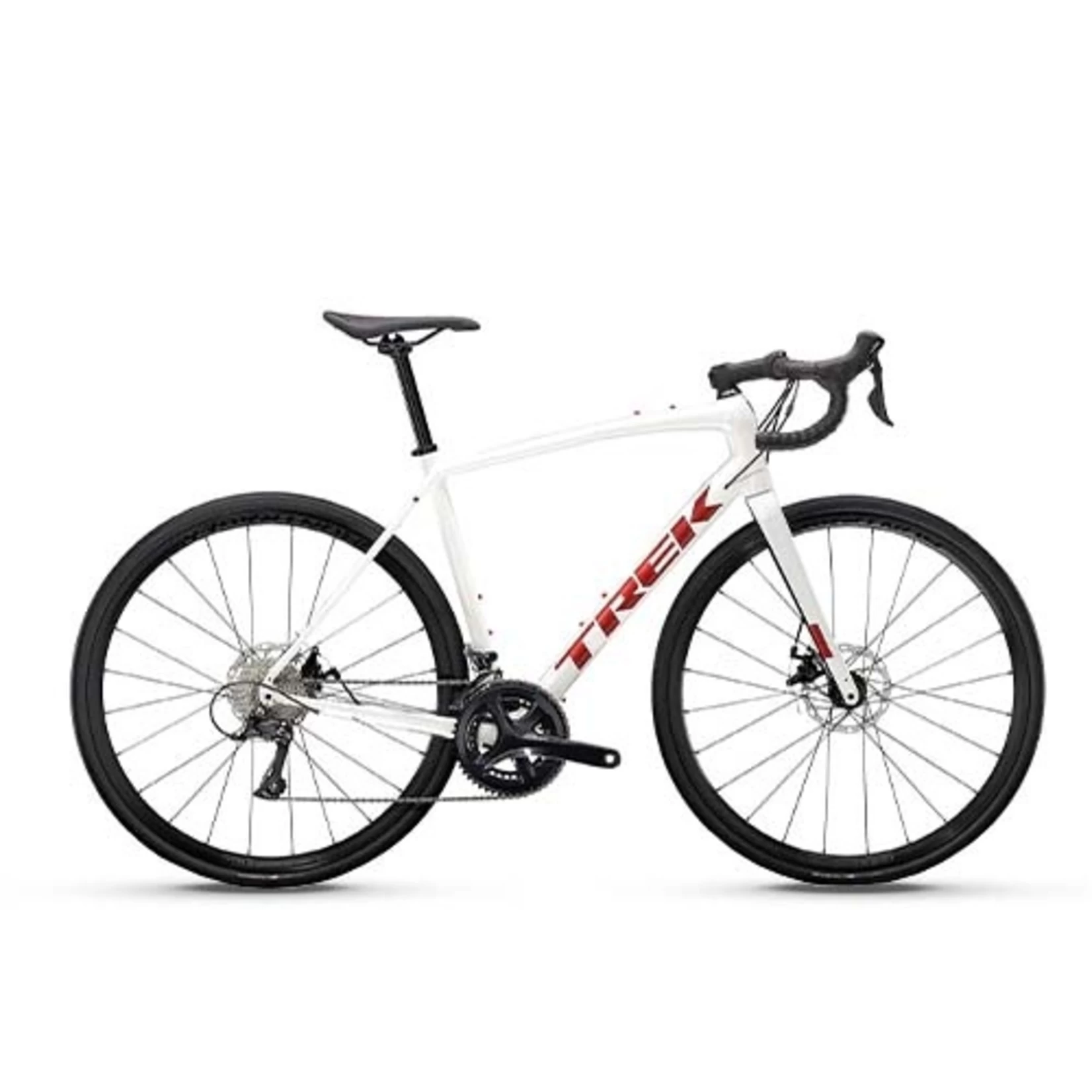

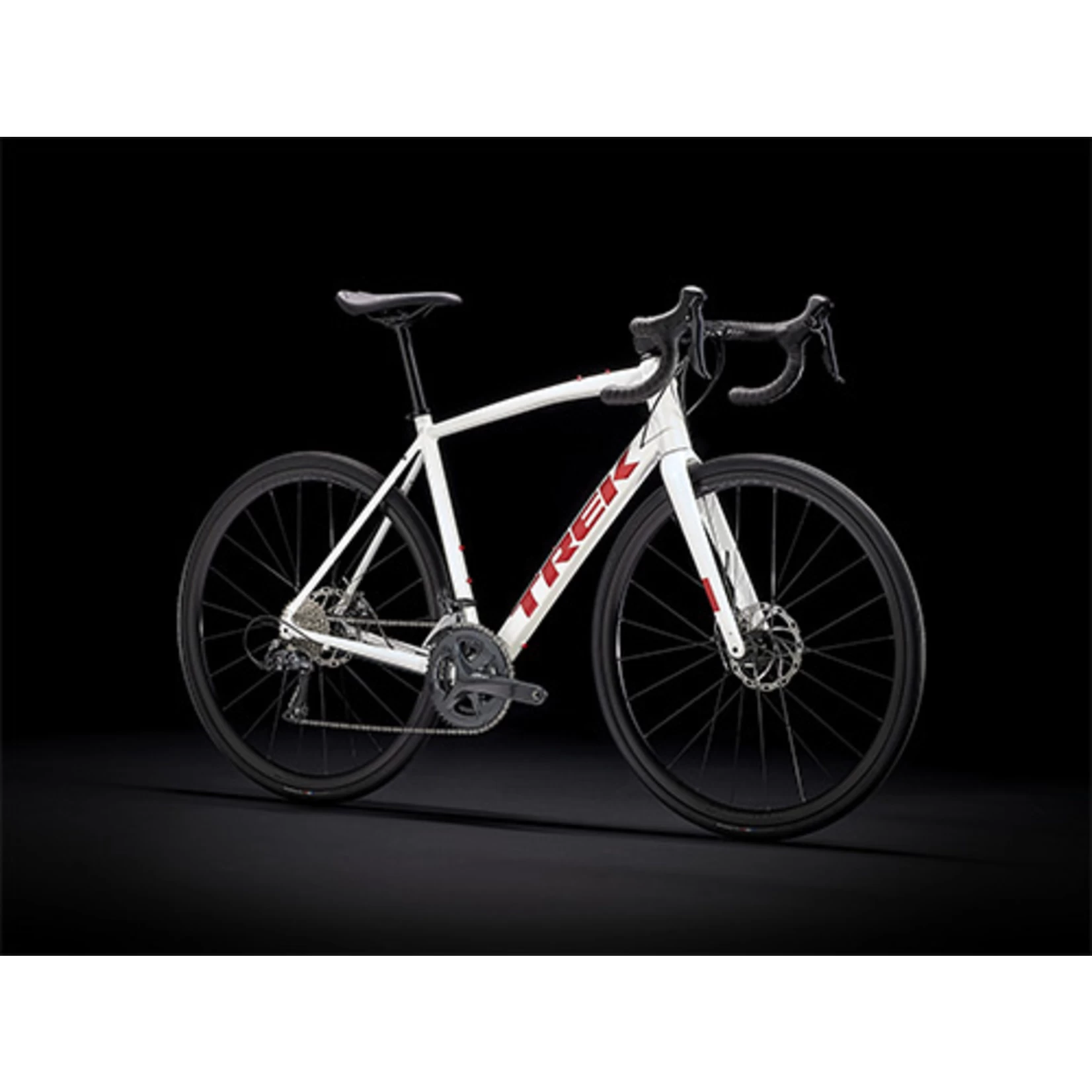

Name: TREK DOMANE AL 3 CRYSTAL WHITE/MATTE TREK BLACK
SKU: SKU-000-690LKbi
Availability: InStock

It’s right for you if…

You’re just getting into road cycling, or are looking to upgrade from an older road bike, and want a fantastic ride without an eye-popping price. You want a bike with quality parts and powerful disc brakes that will keep up with you for miles to come.

The tech you get

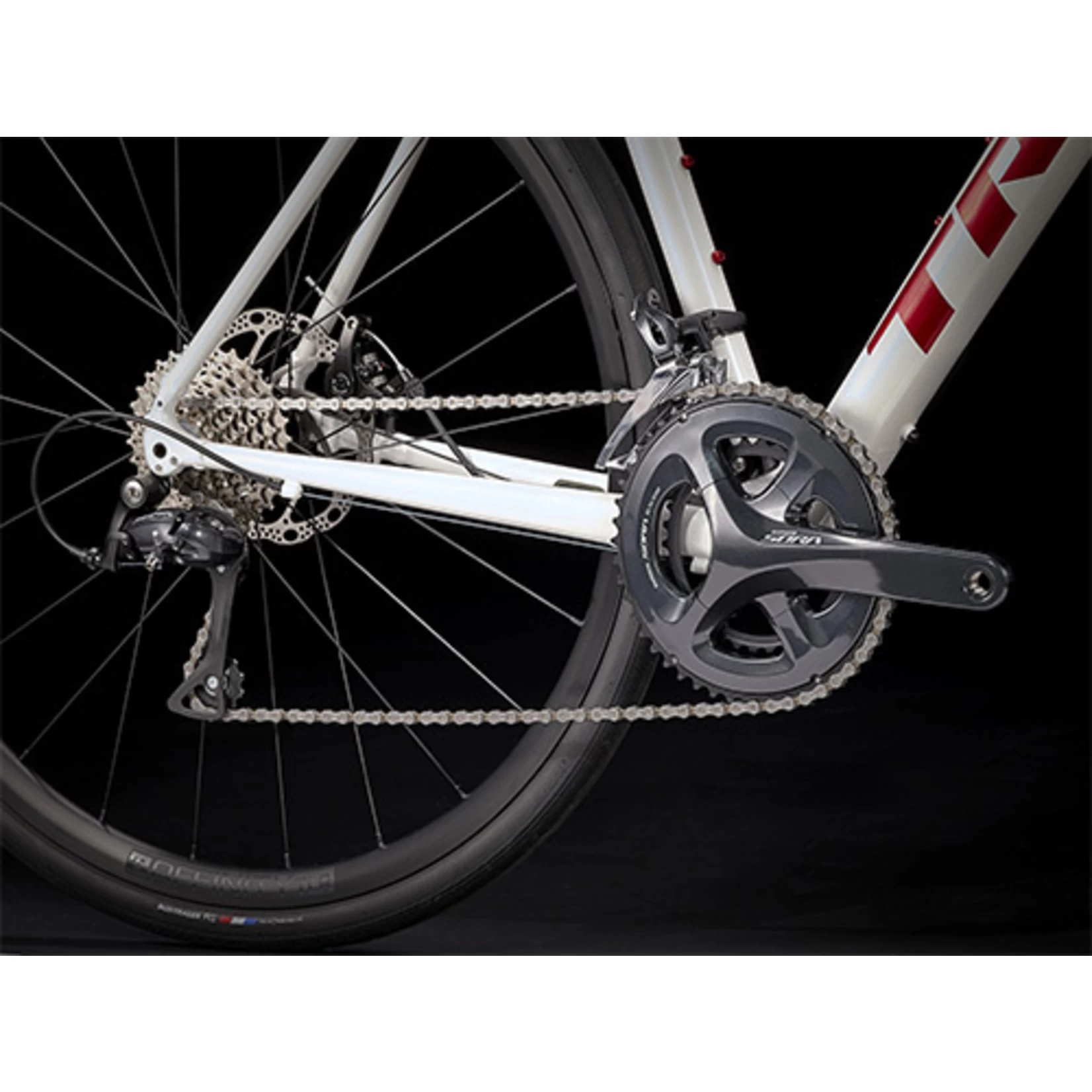

The Shimano Sora drive train has 18 speeds, with integrated brake/shift levers. It’s a lighter parts group than Shimano’s introductory group set, and provides a wide range of gears that’s great for climbing. The lightweight aluminium frame has a stable Endurance Geometry for a confident ride, disc brakes, a Domane carbon fork, mounts for mudguards and tubeless-ready rims.

The final word

This bike has lighter parts, an advanced aluminium frame, powerful disc brakes and a comfort-first geometry designed to help you fall in love with road cycling.

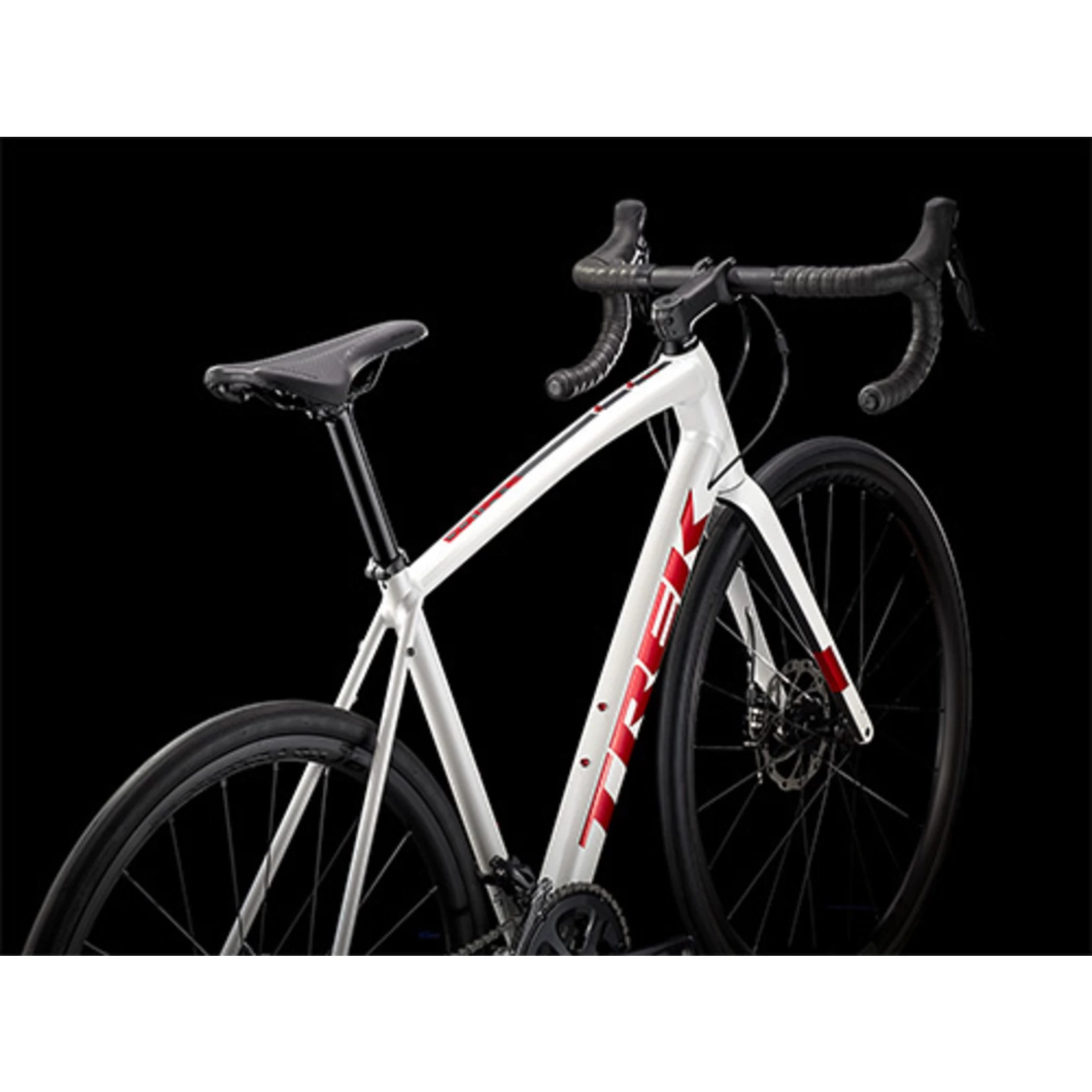

Premium alloy frame

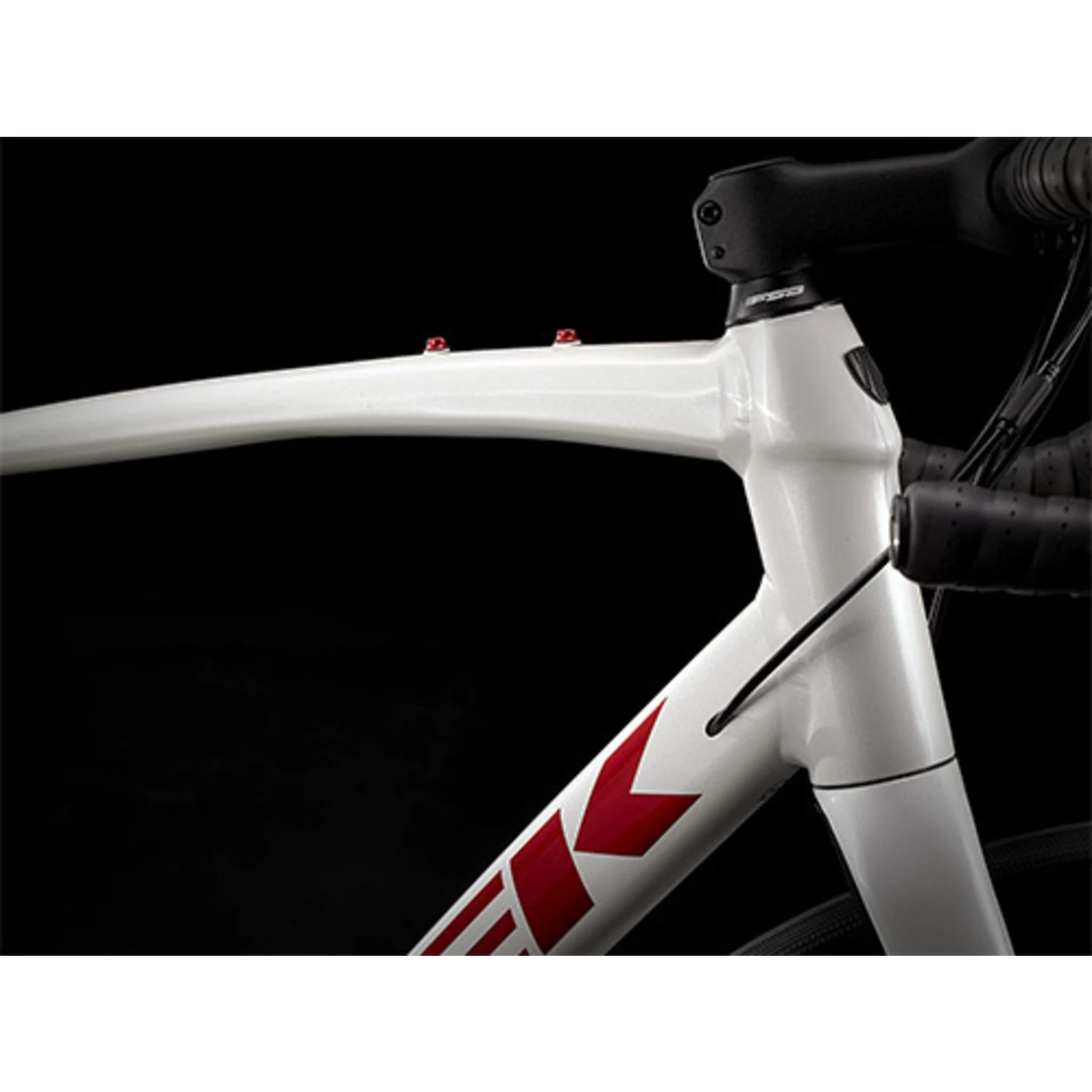

Every Domane AL Disc has a lightweight aluminium frame with internal cable routing and smooth welds for race-ready looks and performance.

Long-haul comfort

The endurance geometry, wide tyres and carbon fork keep you comfortable when you’re setting distance records.

High-value performance

The Domane AL Disc is built in Trek’s road racing heritage, which means it’s a road bike you won’t outgrow as your rides get longer and faster.

Any road, any adventure

Disc brakes, extra tyre clearance and mounts for a rack and mudguards give it the versatility for any all-road adventure.

The Walkthrough

Why you’ll love it

This versatile bike’s smooth, capable ride will get (and keep) you excited to go on longer rides
The stable Endurance Geometry delivers comfort and confidence
The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won’t fatigue as quickly

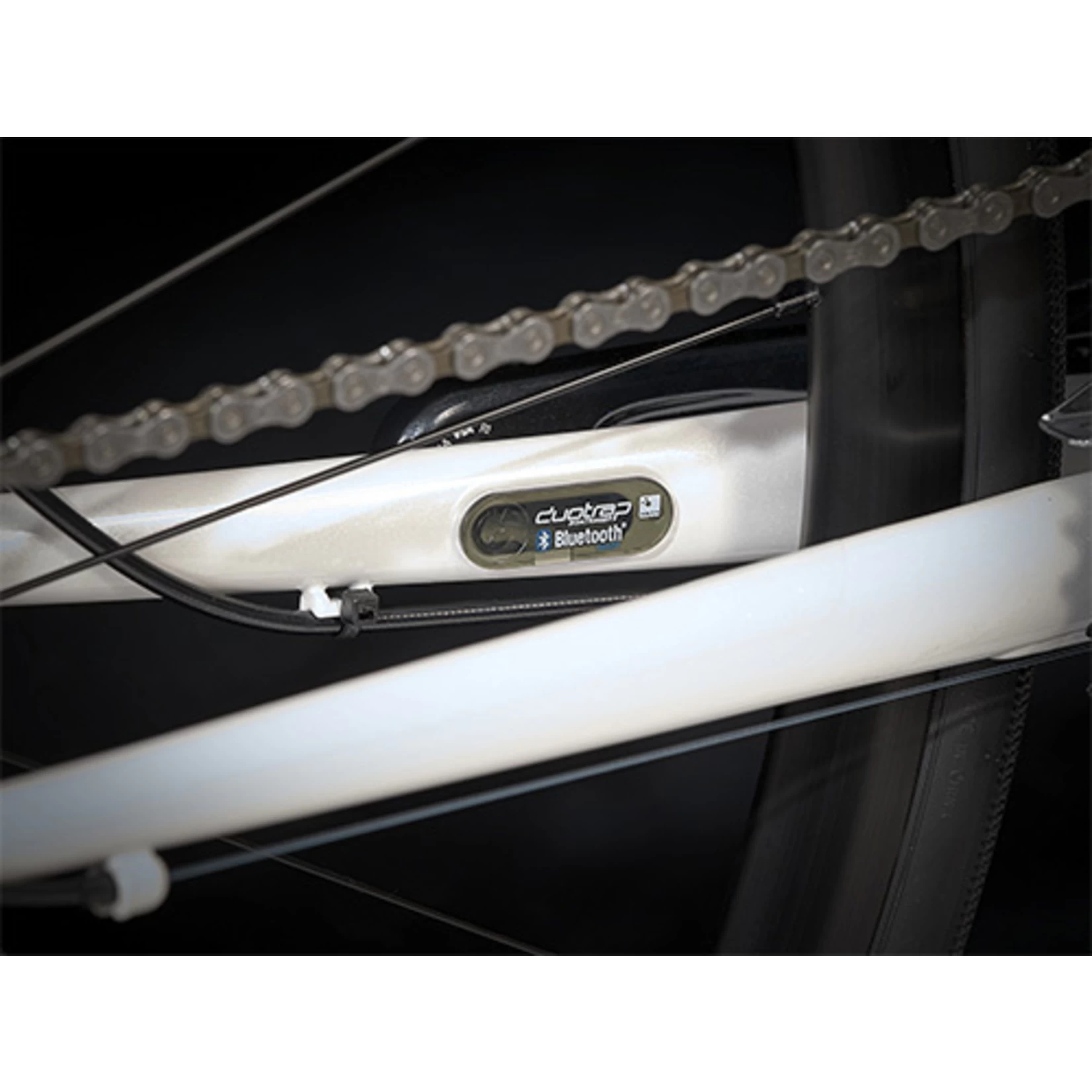

DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
Like every Trek bike, it’s backed by a lifetime warranty and supported by a wide network of retail partners

SIZING

Size

Rider Height

Inseam

150 – 153 cm

4’11.1″ – 5’0.2″

71 – 73 cm

28.0″ – 28.7″

156 – 163 cm

5’1.4″ – 5’4.2″

74 – 77 cm

29.1″ – 30.3″

163 – 168 cm

5’4.2″ – 5’6.1″

76 – 79 cm

29.9″ – 31.1″

168 – 174 cm

5’6.1″ – 5’8.5″

78 – 82 cm

30.7″ – 32.3″

174 – 180 cm

5’8.5″ – 5’10.9″

81 – 85 cm

31.9″ – 33.5″

180 – 185 cm

5’10.9″ – 6’0.8″

84 – 87 cm

33.1″ – 34.3″

185 – 191 cm

6’0.8″ – 6’3.2″

86 – 90 cm

33.9″ – 35.4″

SPECIFICATIONS

FRAMESET

FRAME 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142×12 mm thru axle
FORK Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12×100 mm thru axle
Frame fit Endurance

WHEELS

Hub front Formula RX-512 alloy, 6-bolt, 100×12 mm thru axle
Skewer front Bontrager Switch thru axle, removable lever
Hub rear Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142×12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Size: 44, 49, 52, 54, 56, 58, 61 Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes 14 g stainless steel
Tyre Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
Max tyre size 35c without mudguards, 32c with mudguards

DRIVETRAIN

Shifter Shimano Sora R3000, 9-speed
Front derailleur Shimano Sora R3000, 31.8 mm clamp
Rear derailleur Shimano Sora R3000, mid cage, 34T max cog
Crank Size: 49, 52, 54 Shimano Sora R3000, 50/34 (compact), 170 mm length
Bottom bracket Prowheel PW-BB73+, 68/73 mm, threaded external
Cassette Shimano Sora HG400, 11-32, 9-speed
Chain Shimano Sora HG53, 9-speed
Max. chainring size 1x: 42t, 2x: 50/34

COMPONENTS

Saddle Size: 44, 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
Seatpost Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

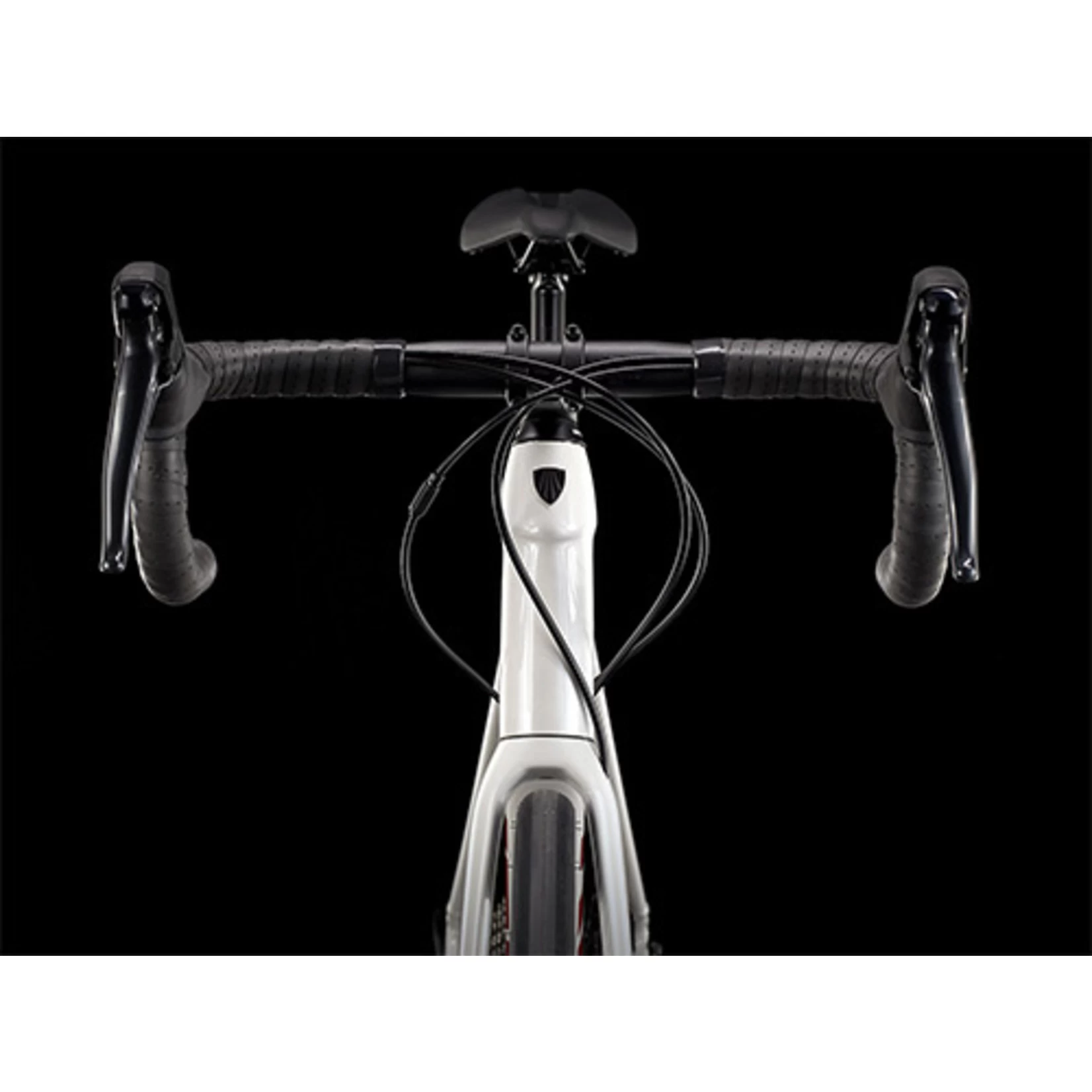

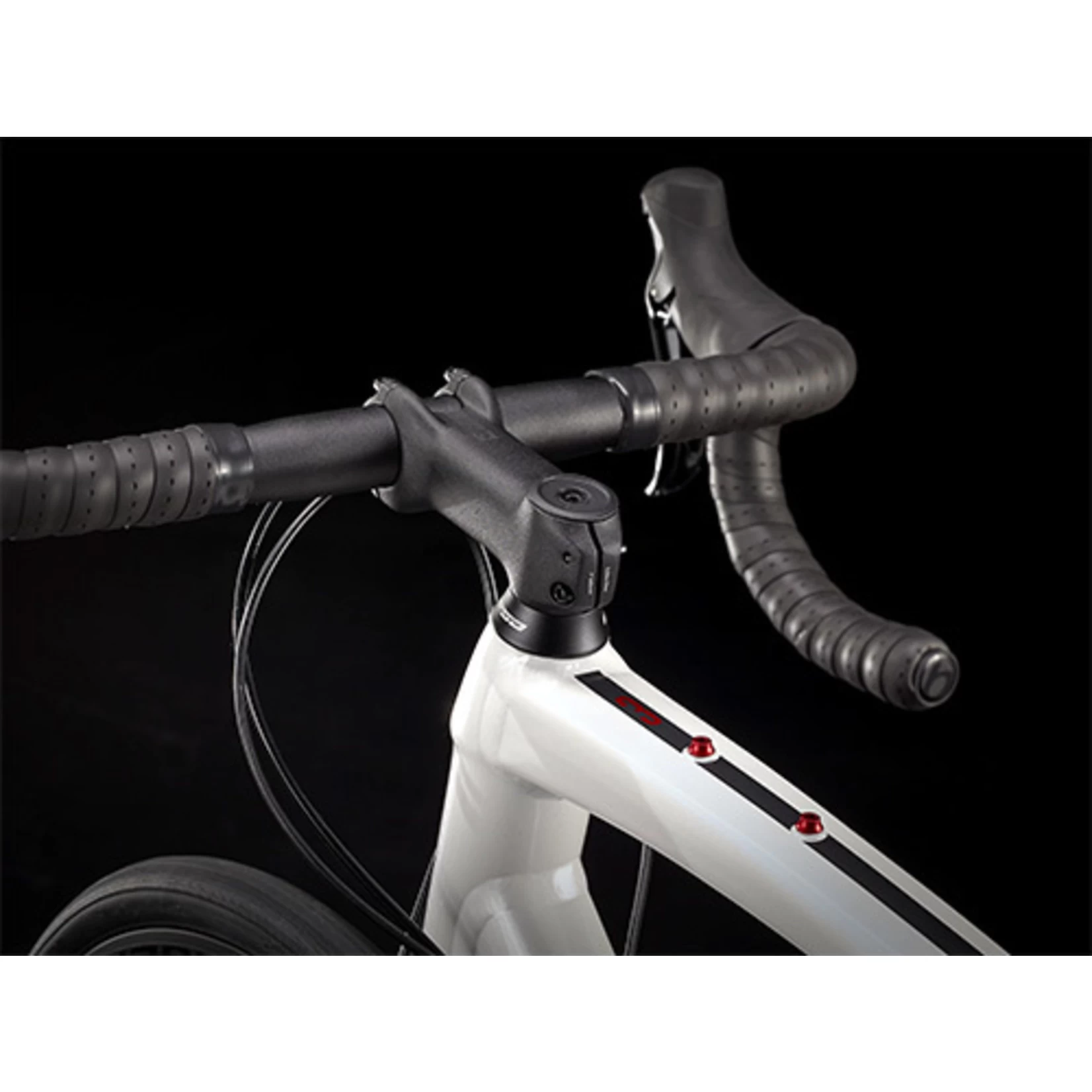

Handlebar Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Handlebar tape Bontrager Supertack Perf tape

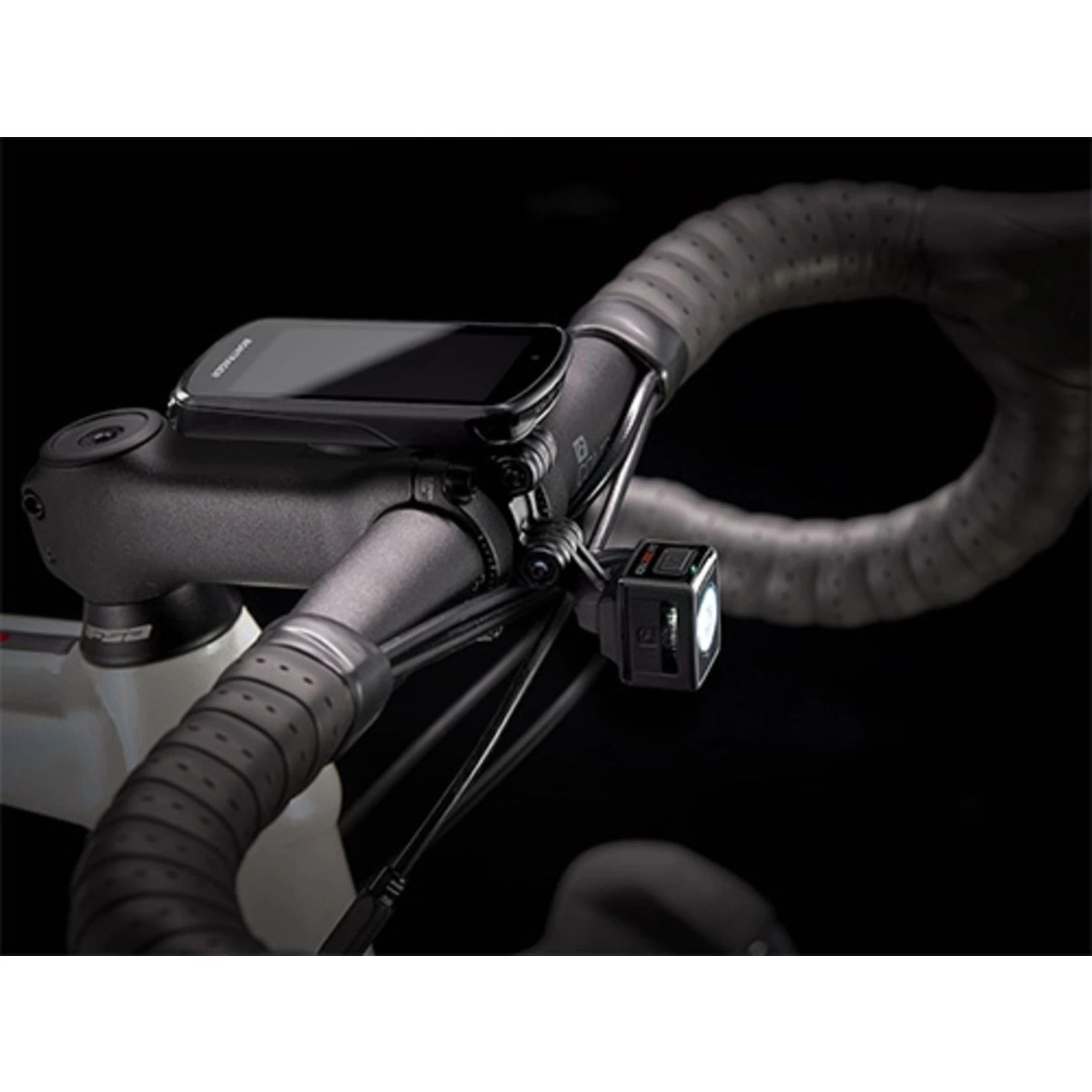

Stem Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Head set FSA Integrated, sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom
Brake Tektro C550 mechanical disc brake, dual piston, flat-mount, 160 mm rotor
Rotor size Max brake rotor sizes: 160 mm front and rear

WEIGHT

Weight 56 – 10.30 kg / 22.71 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
