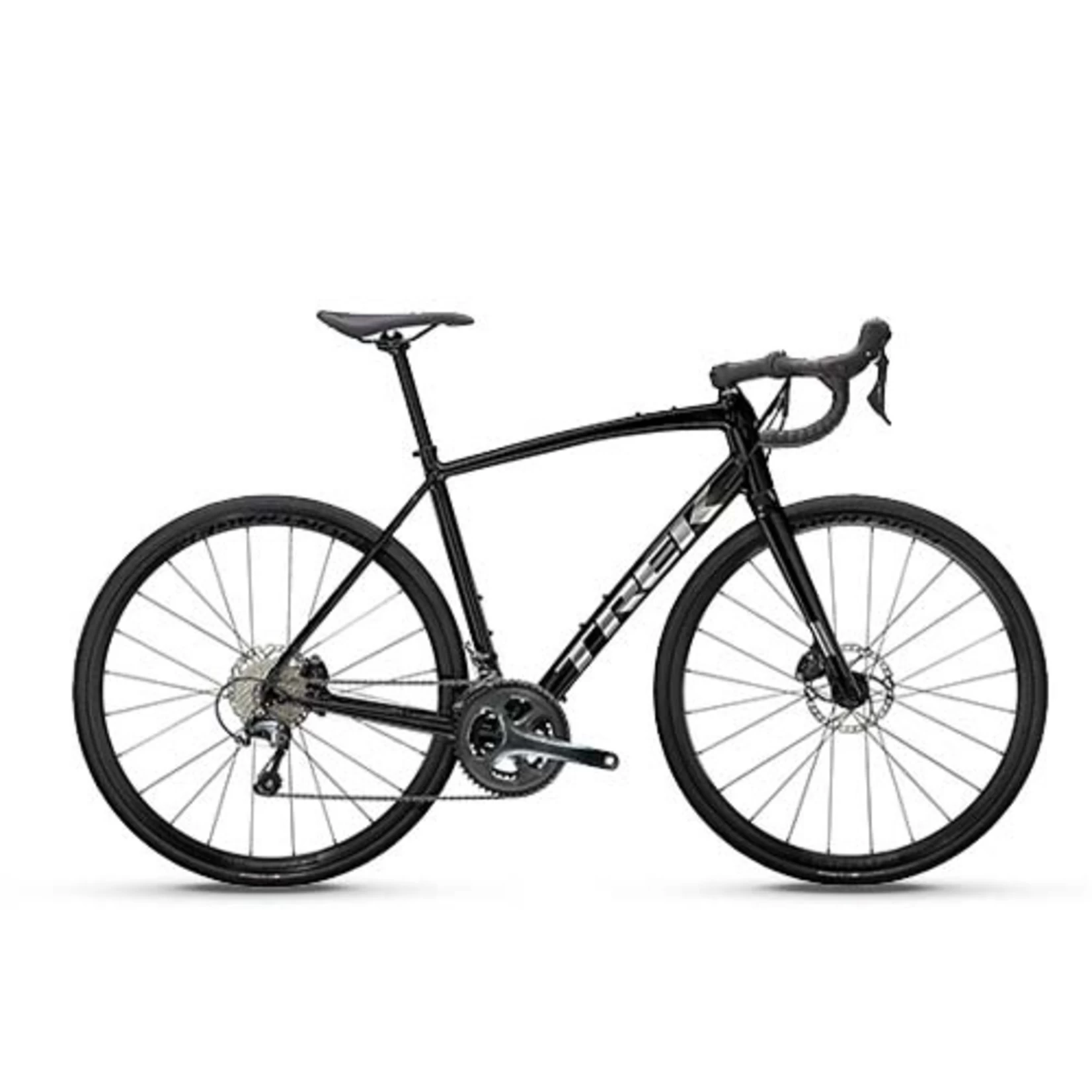

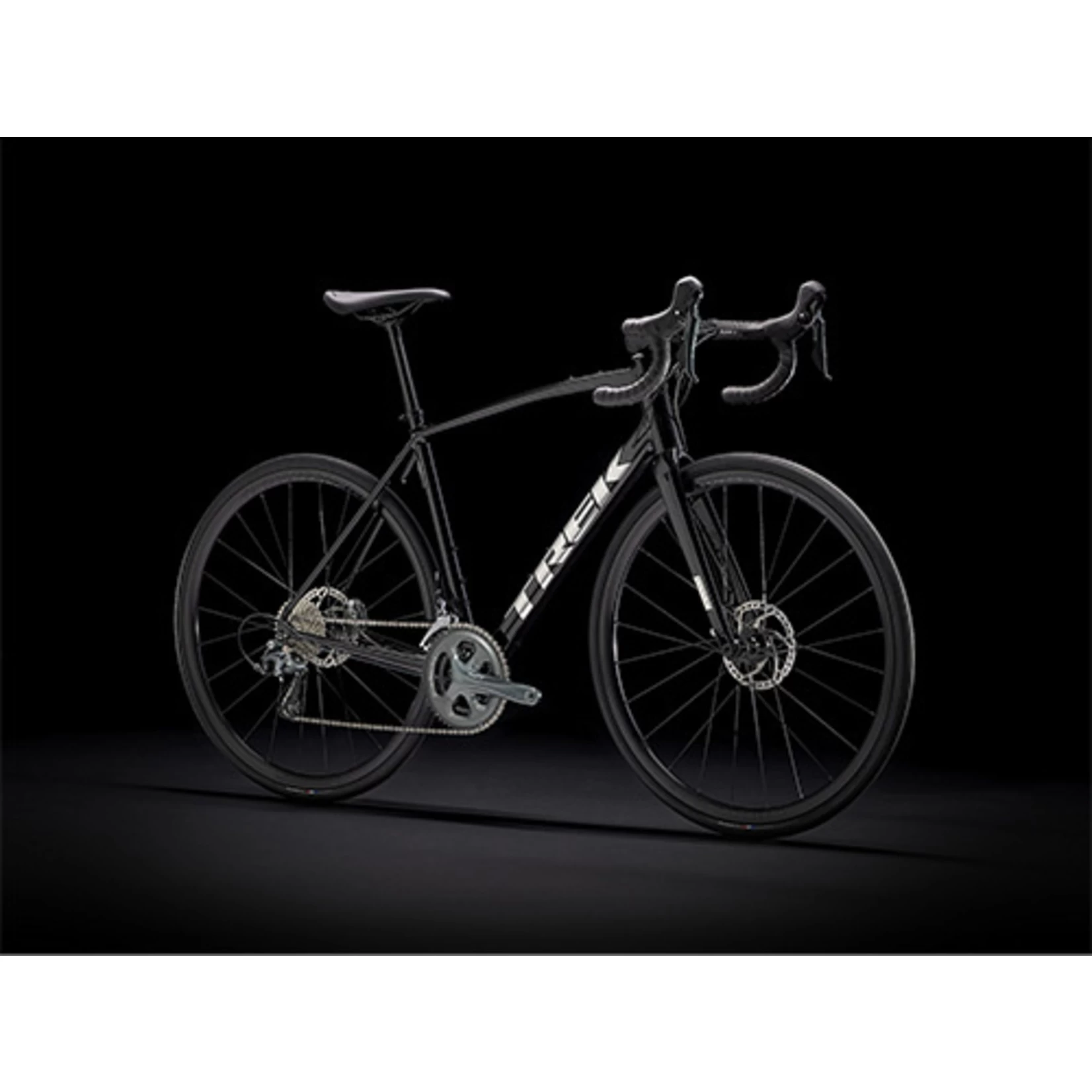

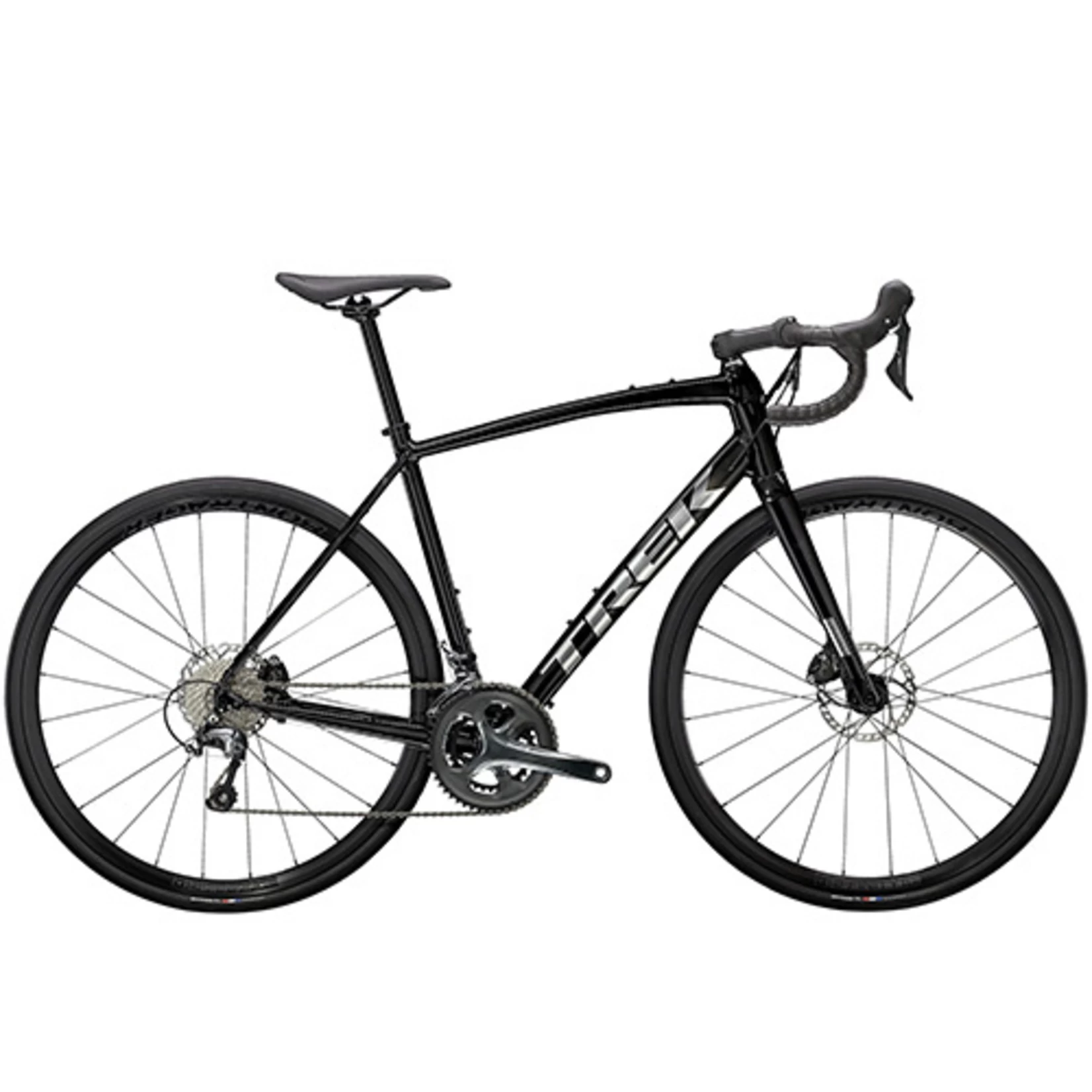

Name: TREK DOMANE AL 4 DISC GLOSS TREK BLACK / MATTE TREK BLACK
SKU: SKU-000-697LKbi
Availability: InStock

ABOUT:

Domane AL 4 Disc combines the smooth, comfortable qualities of an advanced alloy frame with the performance of higher-quality parts. It features an upgraded drive train and crisp hydraulic disc brakes for a fast road bike perfect for competitive group rides and even races.

You plan to hop on your bike as much as possible, and even train for races and long charity rides. You want to invest in higher-quality performance parts that will keep pace with you as you continue to hone your road cycling skills.

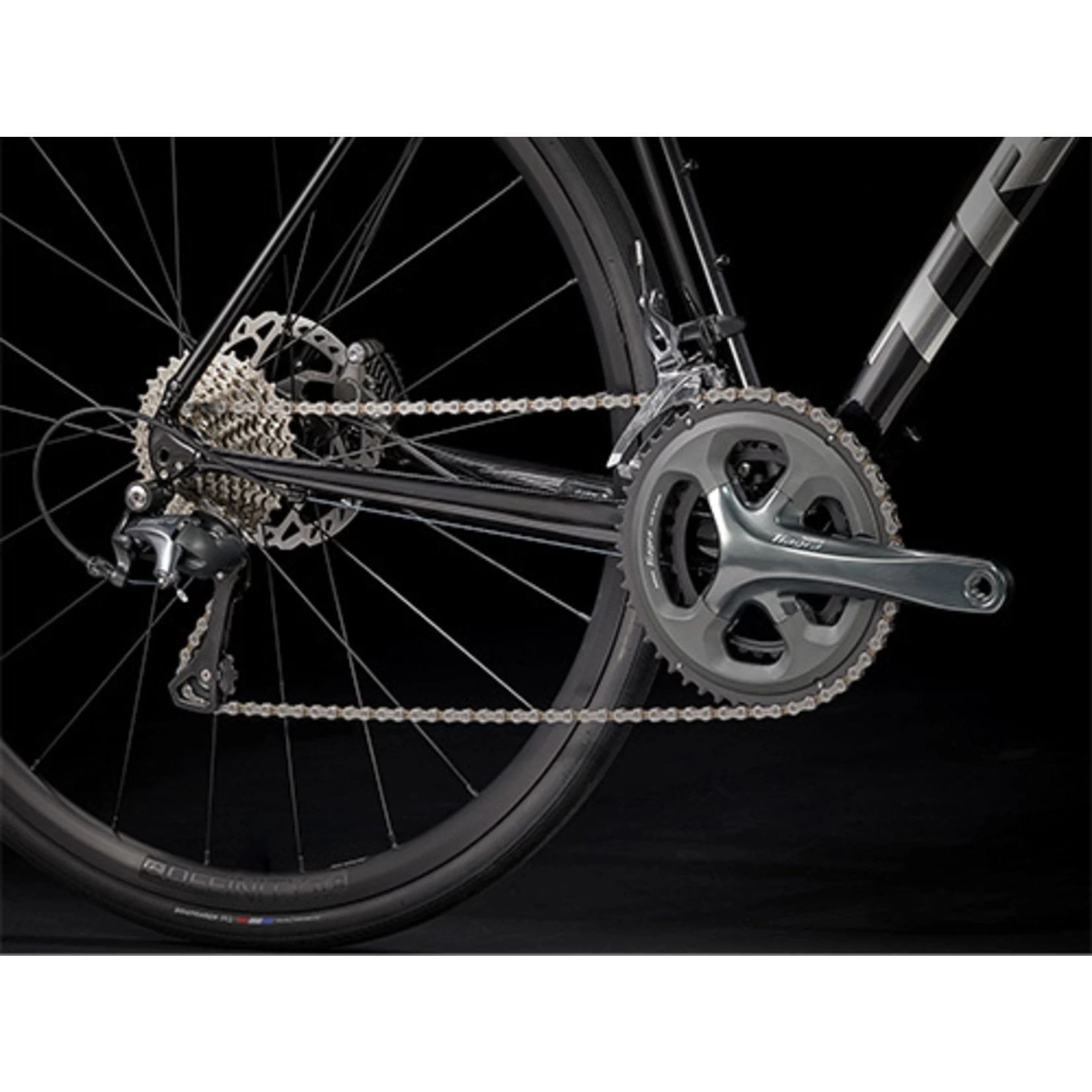

A 2×10 (20 speed) Shimano Tiagra drive train has a wide range of gears for riding on any terrain. The lightweight aluminium frame has mudguard mounts and a stable Endurance Geometry for a confident ride and a carbon fork that absorbs road vibration. Plus, tubeless-ready rims and hydraulic disc brakes for stopping power in any conditions.

A solid, comfort-first road bike with upgrades on the parts that matter – like the drive train and brakes. Domane AL 4 Disc is built for miles of fun, fast riding on the road and even light gravel.

A light, comfortable frame and quality parts make it an amazing platform for long, fast group rides
The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won’t fatigue as quickly
Hydraulic disc brakes give you more precise and consistent stopping power in any conditions
Bigger tyre clearance lets you run wider tyres for more traction and stability on rail trails and other light gravel roads

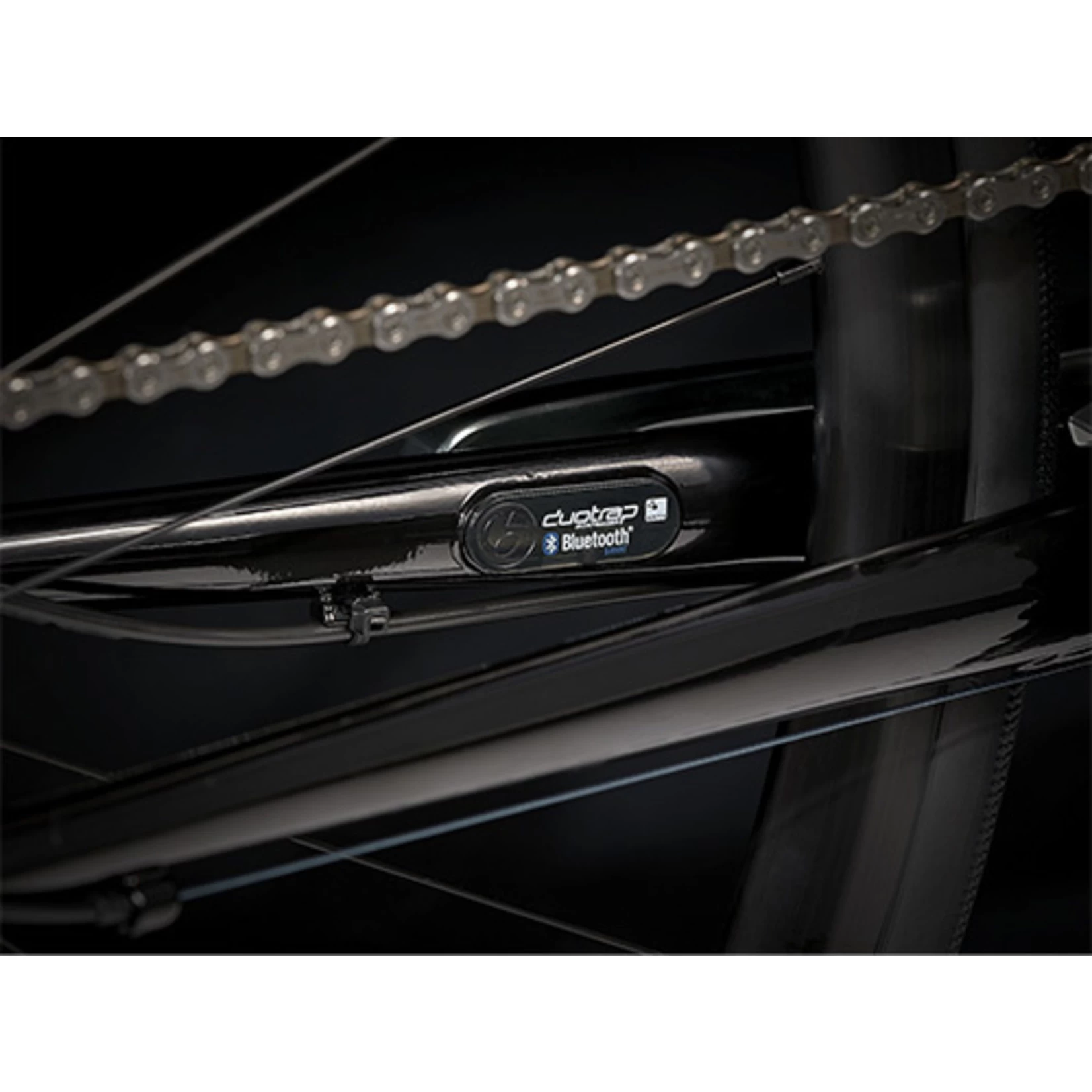

DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them

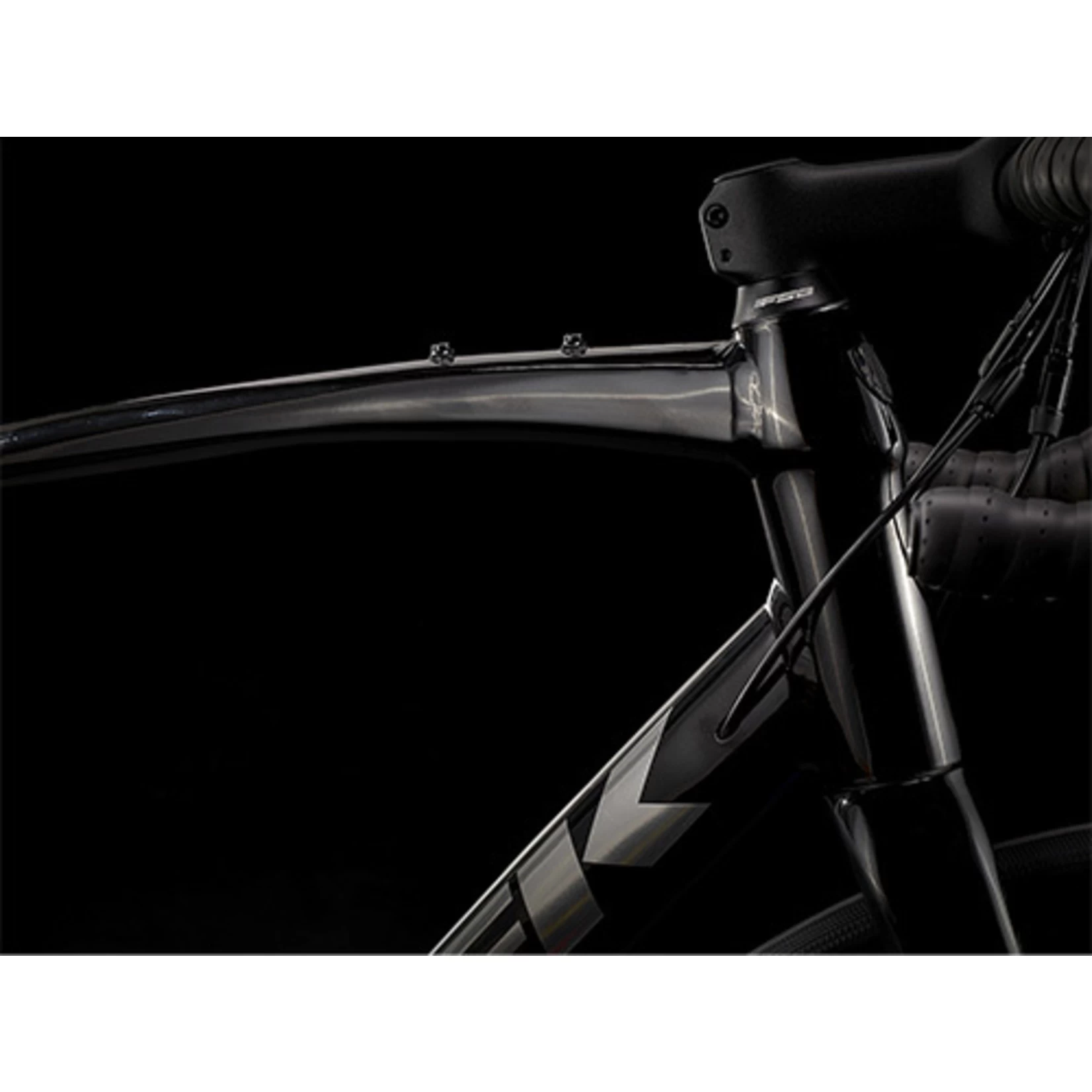

Every Domane AL Disc has a lightweight aluminium frame with internal cable routing and smooth welds for race-ready looks and performance.

The endurance geometry, wide tyres and carbon fork keep you comfortable when you’re setting distance records.

The Domane AL Disc is built in Trek’s road racing heritage, which means it’s a road bike you won’t outgrow as your rides get longer and faster.

Disc brakes, extra tyre clearance and mounts for a rack and mudguards give it the versatility for any all-road adventure.

SPECIFICATIONS:

Frame	100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142×12 mm thru axle
Fork	Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12×100 mm thru axle
Frame fit	Endurance
Hub front	Formula RX-512 alloy, 6-bolt, 100×12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142×12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×32 c
Max tyre size	35c without fenders, 32c with fenders
Shifter	Shimano Tiagra R4720, 10-speed
Front derailleur	Shimano Tiagra 4700, 31.8 mm clamp
Rear derailleur	Shimano Tiagra 4700, long cage, 34T max cog
*Crank	Size: 44 Shimano Tiagra 4700, 50/34, 165 mm length
	Size: 49, 52 Shimano Tiagra 4700, 50/34, 170 mm length
	Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5 mm length
	Size: 58, 61 Shimano Tiagra 4700, 50/34, 175 mm length
Bottom bracket	Prowheel PW-BB73+, 68/73 mm, threaded external
Cassette	Shimano 10-speed, 11-32T
Chain	Shimano Tiagra HG54, 10-speed
*Saddle	Size: 44, 49, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
*Saddle	Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145 mm width
*Seatpost	Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
*Seatpost	Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

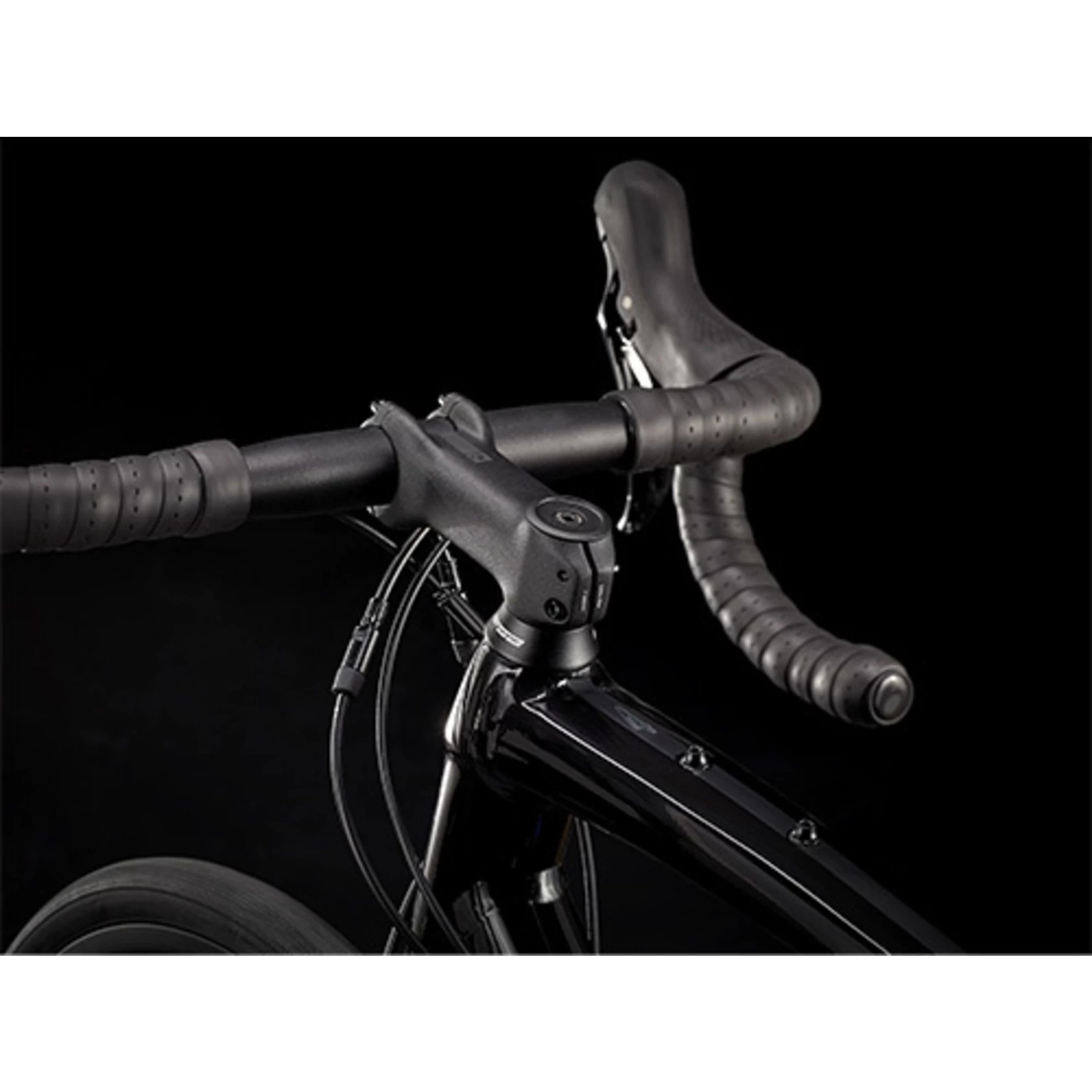

*Handlebar	Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
	Size: 52 Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
	Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
	Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape

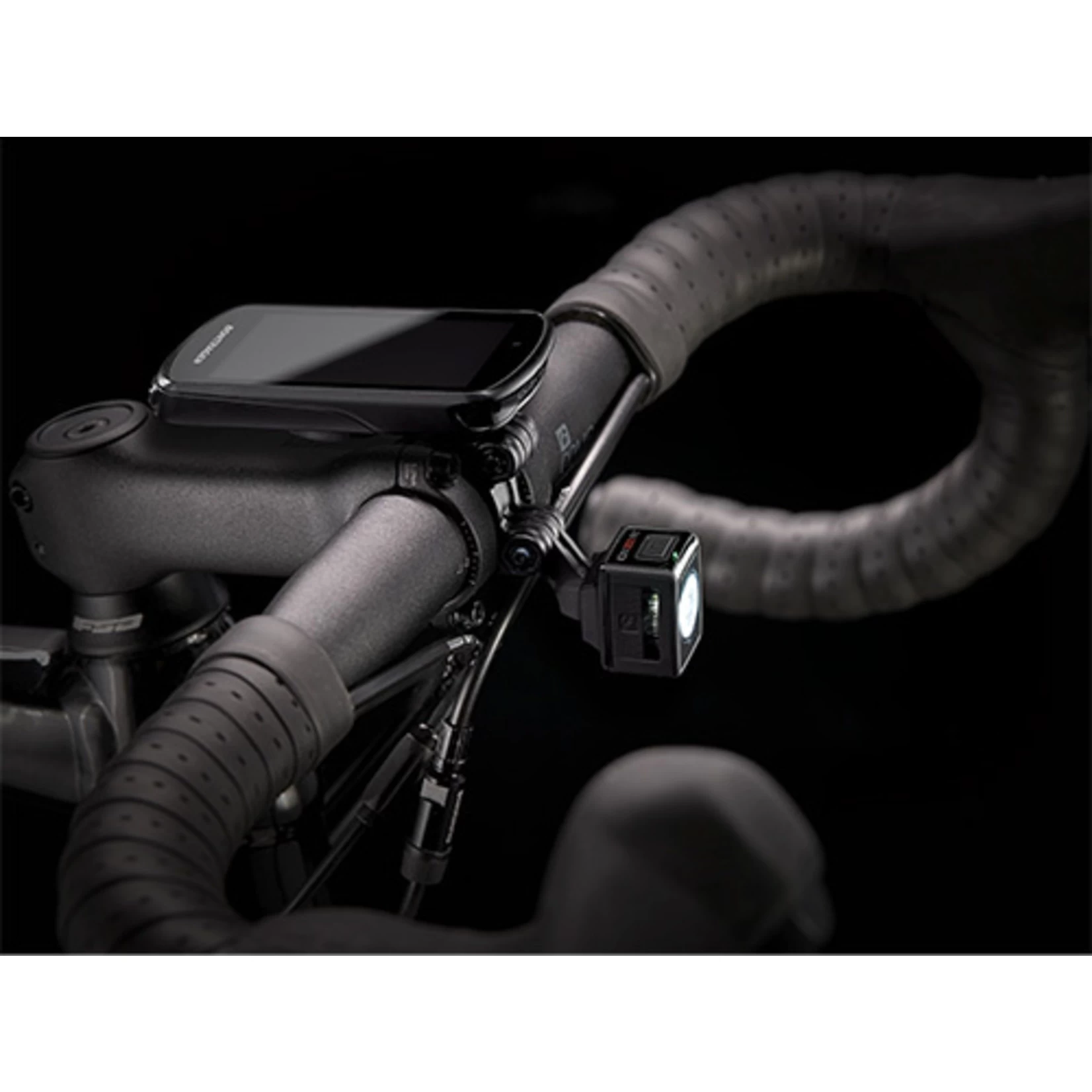

*Stem	Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Head set	FSA Integrated, sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom
Brake	Shimano Tiagra hydraulic disc
*Brake rotor	Size: 44, 49, 52, 54, 56, 58, 61 Shimano RT66, 160 mm, 6-bolt
*Brake rotor	Size: 44, 49, 52, 54, 56, 58, 61 Shimano RT66, 6-bolt, 160 mm
Weight	56 – 10.48 kg / 23.11 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Size	54CM, 56CM, 58CM
