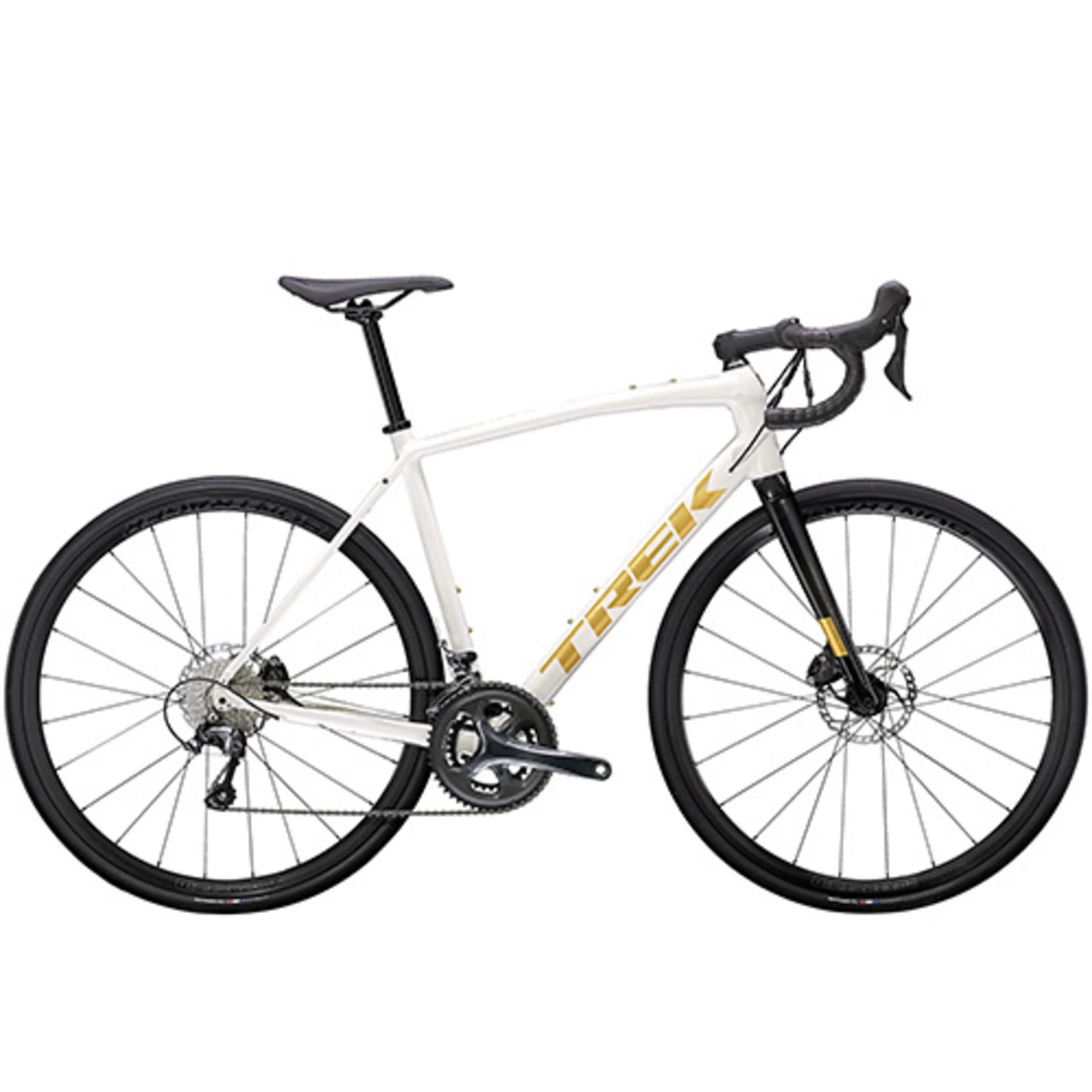

Domane AL 4 Disc combines the smooth, comfortable qualities of an advanced alloy frame with the performance of higher-quality parts. It features an upgraded drive train and crisp hydraulic disc brakes for a fast road bike perfect for competitive group rides and even races.
It’s right for you if…
You plan to hop on your bike as much as possible, and even train for races and long charity rides. You want to invest in higher-quality performance parts that will keep pace with you as you continue to hone your road cycling skills.
The tech you get

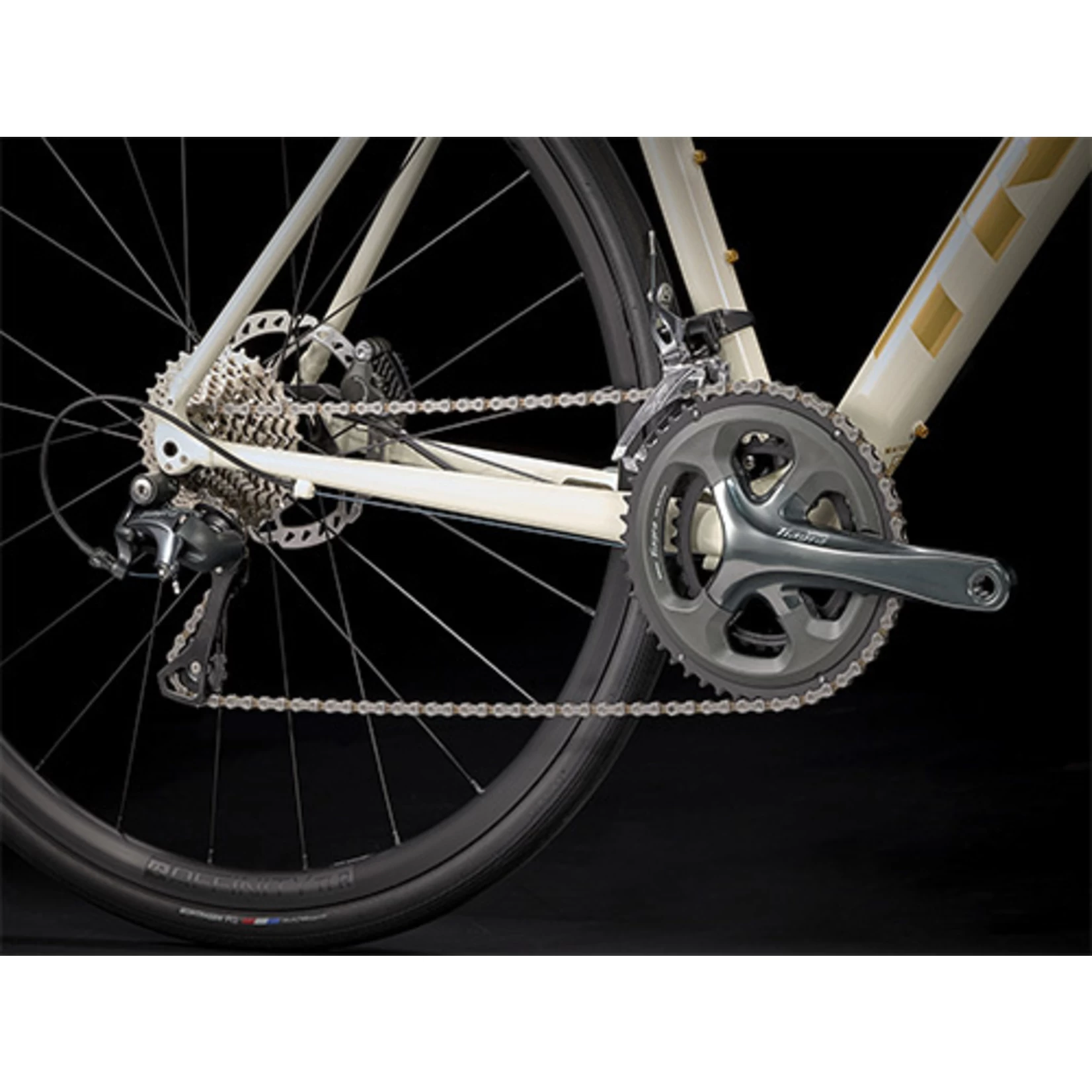

A 2×10 (20 speed) Shimano Tiagra drive train has a wide range of gears for riding on any terrain. The lightweight aluminium frame has mudguard mounts and a stable Endurance Geometry for a confident ride and a carbon fork that absorbs road vibration. Plus, tubeless-ready rims and hydraulic disc brakes for stopping power in any conditions.
The final word
A solid, comfort-first road bike with upgrades on the parts that matter – like the drive train and brakes. Domane AL 4 Disc is built for miles of fun, fast riding on the road and even light gravel.
Why you’ll love it
- A light, comfortable frame and quality parts make it an amazing platform for long, fast group rides
- The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won’t fatigue as quickly
- Hydraulic disc brakes give you more precise and consistent stopping power in any conditions
- Bigger tyre clearance lets you run wider tyres for more traction and stability on rail trails and other light gravel roads
- DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
Â
SPECIFICATIONS

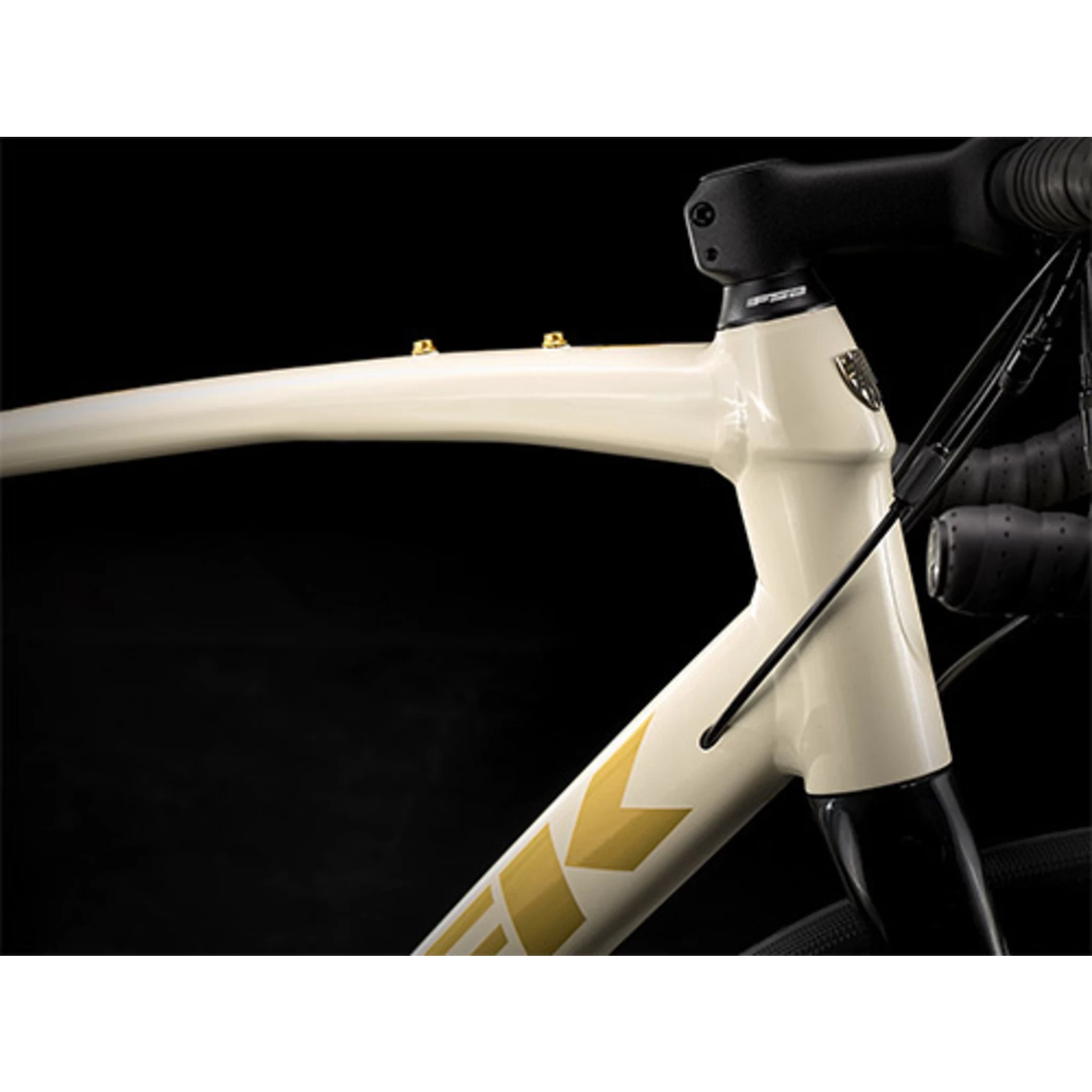

| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142×12 mm thru axle |
|---|---|
| Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12×100 mm thru axle |
| Frame fit | Endurance |
| Hub front | Formula RX-512 alloy, 6-bolt, 100×12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142×12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Rim | Size: 44, 49, 52, 54, 56, 58, 61Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Â | Size: 44, 49, 52, 54, 56, 58, 61Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×32 c |
| Max tyre size | 35c without fenders, 32c with fenders |
| Shifter | Shimano Tiagra R4720, 10-speed |
| Front derailleur | Shimano Tiagra 4700, 31.8 mm clamp |
| Rear derailleur | Shimano Tiagra 4700, long cage, 34T max cog |
| *Crank | Size: 44Shimano Tiagra 4700, 50/34, 165 mm length |
| Â | Size: 49, 52Shimano Tiagra 4700, 50/34, 170 mm length |
| Â | Size: 54, 56Shimano Tiagra 4700, 50/34, 172.5 mm length |
| Â | Size: 58, 61Shimano Tiagra 4700, 50/34, 175 mm length |
| Bottom bracket | Prowheel PW-BB73+, 68/73 mm, threaded external |
| Cassette | Shimano 10-speed, 11-32T |
| Chain | Shimano Tiagra HG54, 10-speed |
| *Saddle | Size: 44, 49, 52Bontrager Verse Comp, steel rails, 155 mm width |
| Â | Size: 54, 56, 58, 61Bontrager Verse Comp, steel rails, 145 mm width |
| *Seatpost | Size: 44, 49Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length |
| Â | Size: 52, 54, 56, 58, 61Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |

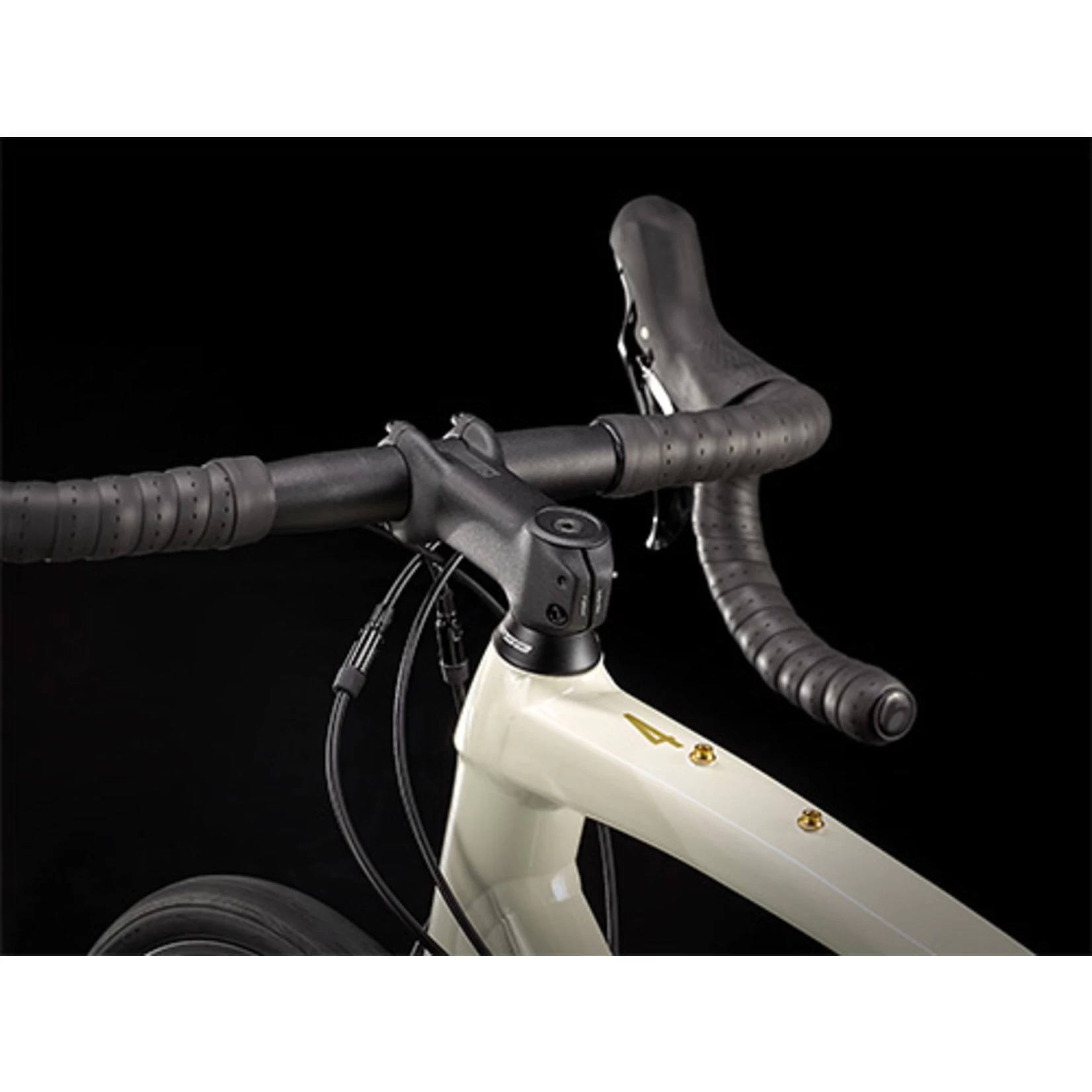

| *Handlebar | Size: 44, 49Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width |
| Â | Size: 52Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width |
| Â | Size: 54, 56Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width |
| Â | Size: 58, 61Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 44Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Â | Size: 49Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
| Â | Size: 52, 54Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Â | Size: 56, 58Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
| Â | Size: 61Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
| Head set | FSA Integrated, sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom |
| Brake | Shimano Tiagra hydraulic disc |
| *Brake rotor | Size: 44, 49, 52, 54, 56, 58, 61Shimano RT66, 160 mm, 6-bolt |
| Â | Size: 44, 49, 52, 54, 56, 58, 61Shimano RT66, 6-bolt, 160 mm |
| Weight | 56 – 10.45 kg / 23.04 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
