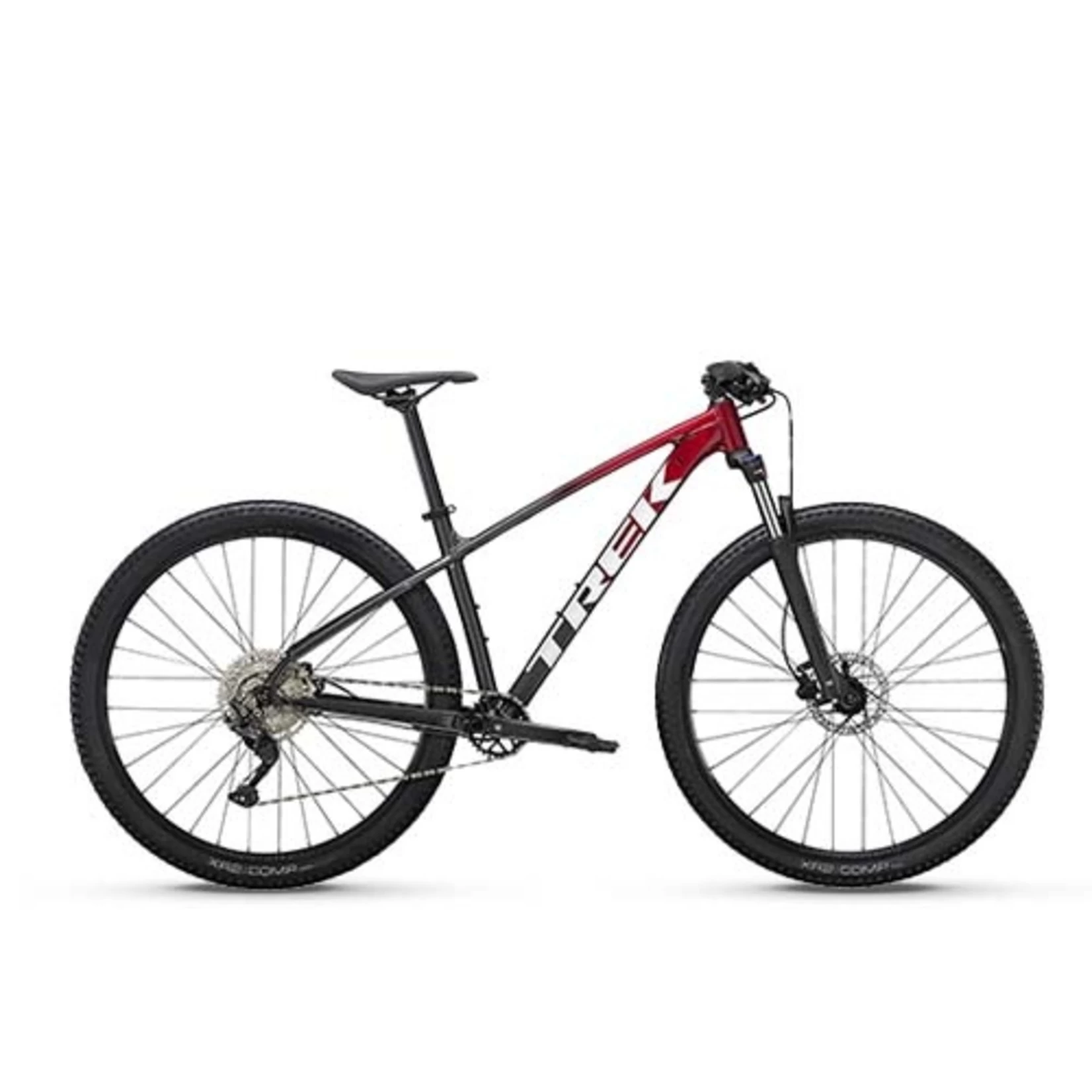

Name: TREK MARLIN 6 29" RAGE RED TO DNISTER BLACK FADE
SKU: SKU-000-654LKbi
Availability: InStock

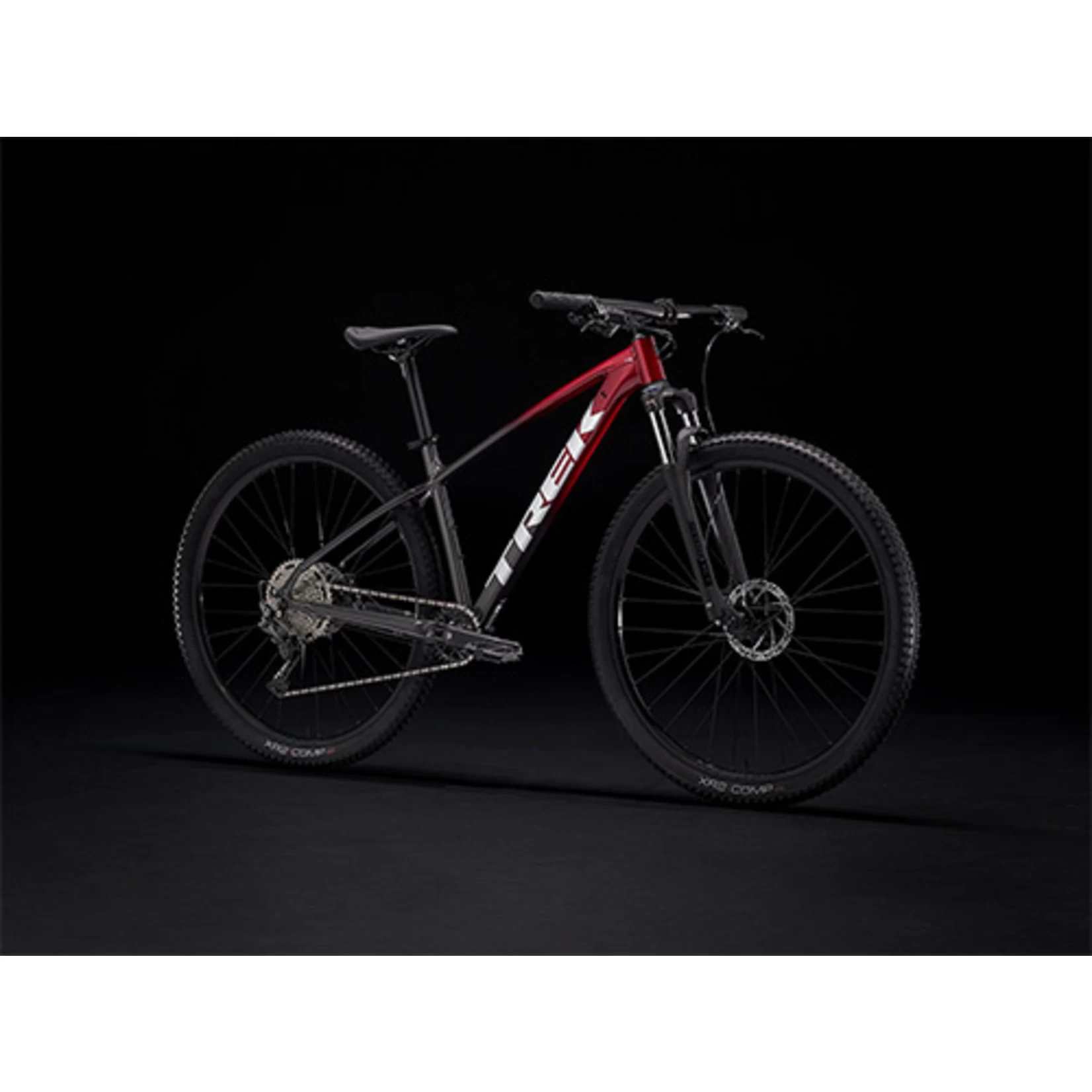

The Marlin 6 is a cross-country mountain bike built to give you an efficient off-road ride with a suspension fork that locks out, and a simple 1x drivetrain. It’s made for mountain biking, but it’s also equipped with features like rack and kickstand mounts that make it a great choice for adventurous daily commutes.

You’re testing the waters of off-road riding, and want a real mountain bike at a great value, with a wide range of gears to cover more ground on the road and trail.

A sturdy aluminium frame with internal routing to protect your cables and add to the bike’s sleek look, powerful hydraulic disc brakes and a simple 1×10 Shimano drivetrain that ditches the front derailleur for less clutter and easier operation. The wide-range cassette still gives you all the gears you need for big climbs and steep descents. Plus a suspension fork with a lever that lets you easily lock the suspension so you don’t waste energy on smooth terrain.

The Marlin 6 gives you upgrades that you’ll notice on every ride, like the smooth, simple shifting Shimano drivetrain. Extra-strong double-walled rims and powerful hydraulic disc brakes give you durability and stopping power for your most rugged adventures on the trail, in town, and everywhere in between.

The 1x drivetrain gives you all the gears you need and none you don’t
Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently

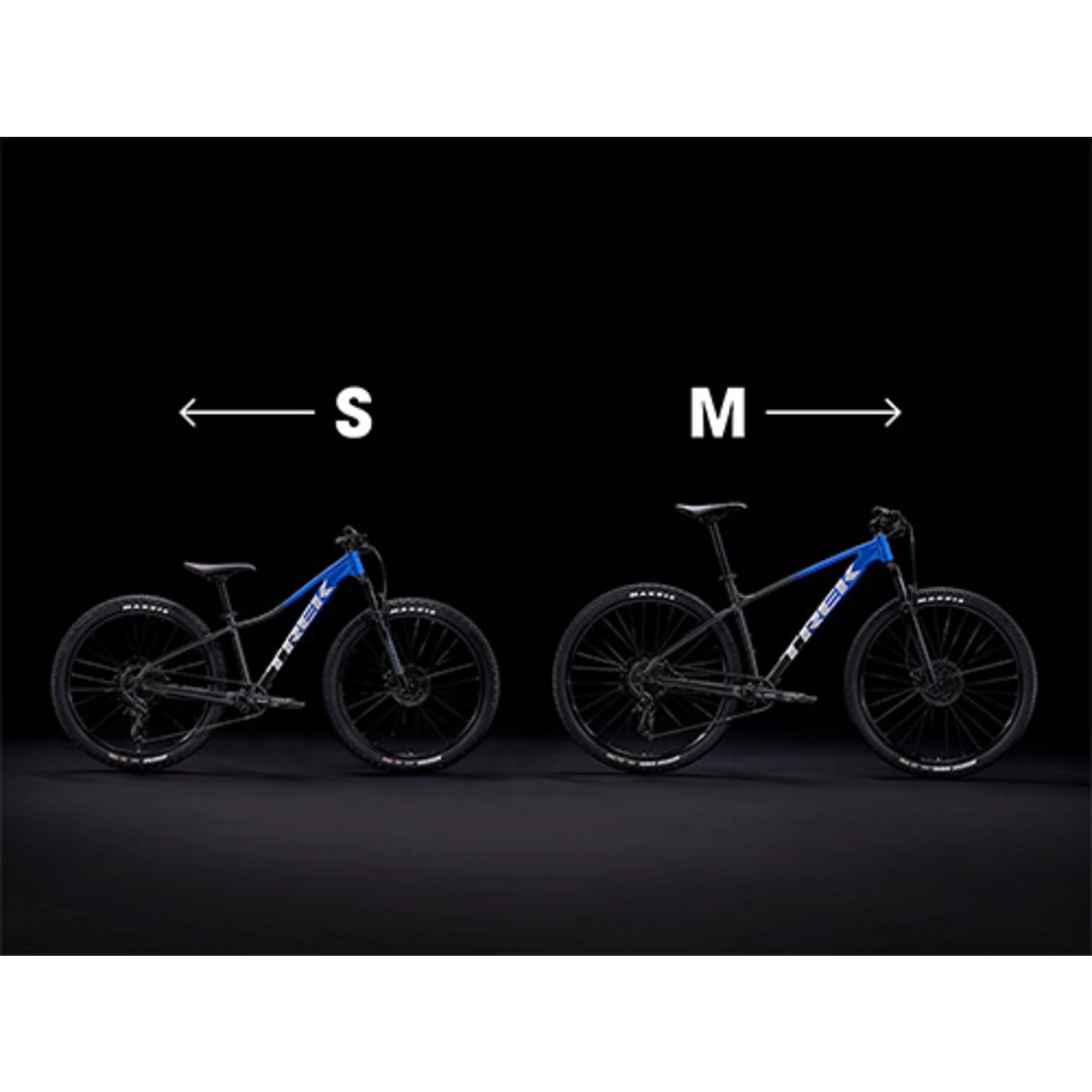

The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount

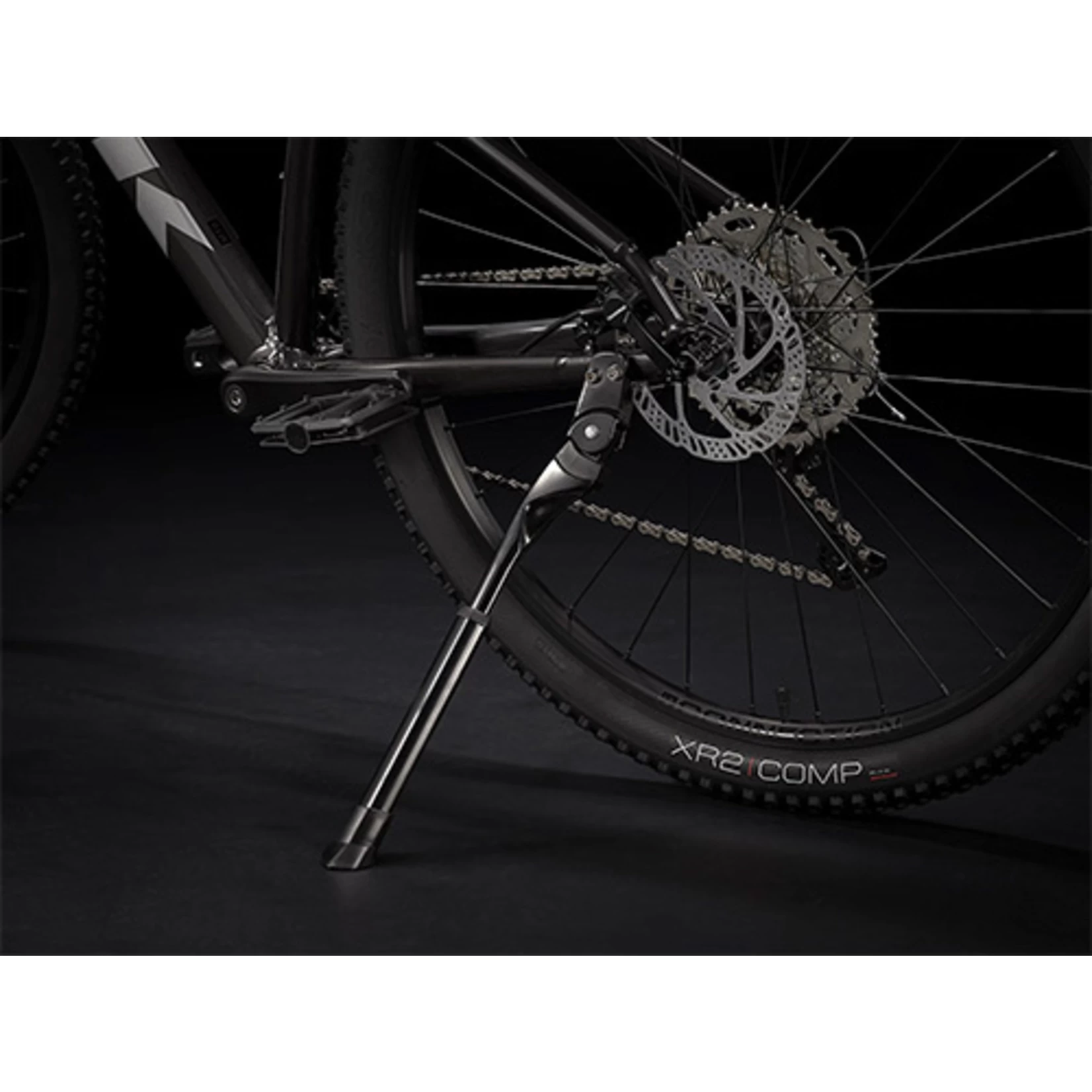

Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
Like every Trek, it’s backed by a lifetime warranty

FRAMESET

FRAME Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR
Fork Size: M , ML , L , XL , XXL

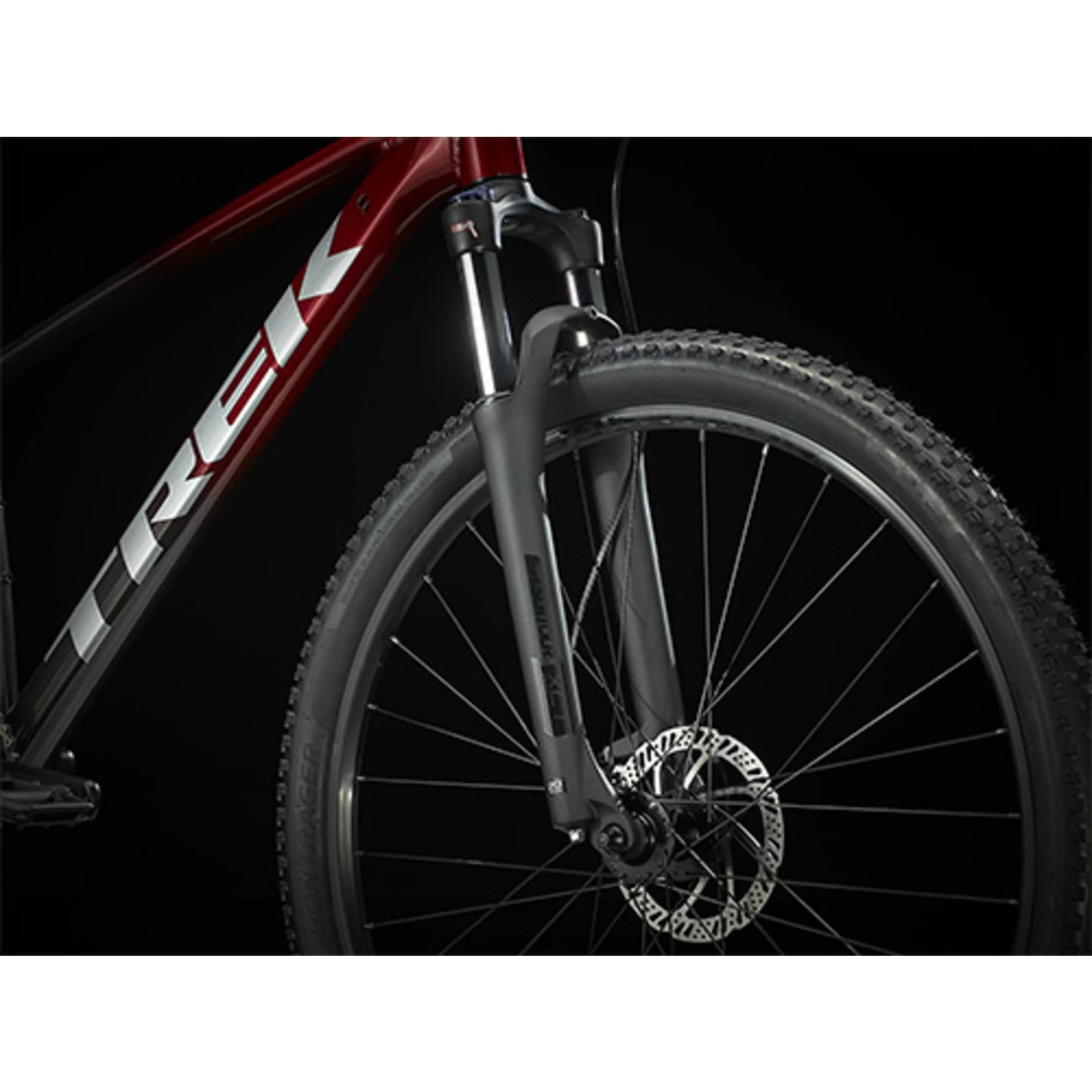

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel
Max compatible fork travel 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

WHEELS

Hub front Formula DC-20, alloy, 6-bolt, 5×100 mm QR
Hub rear Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR

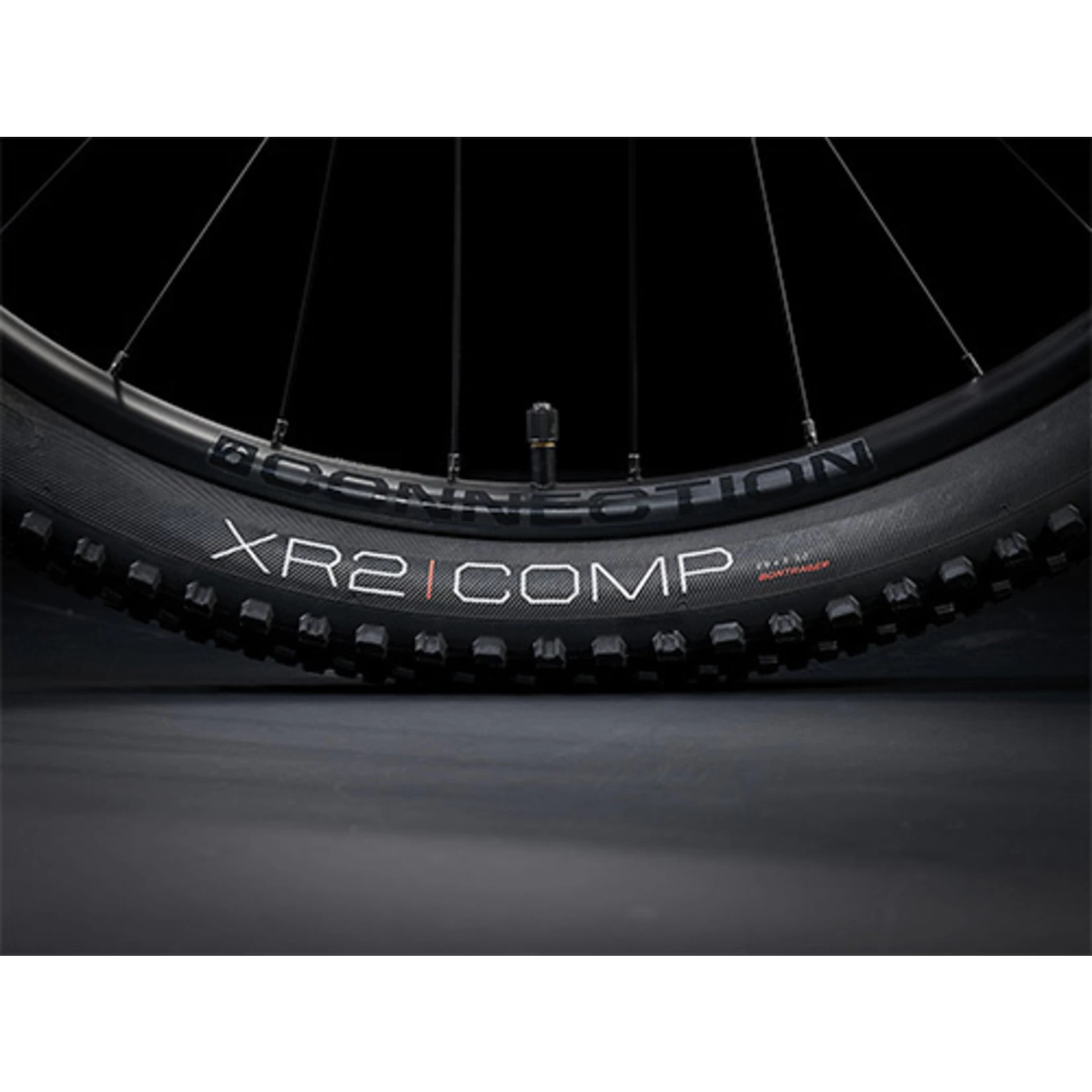

Rim Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Tyre Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29×2.20″
Max tyre size Frame: 29×2.20″ (XS & S: 27.5×2.4″) Fork: See manufacturer

DRIVETRAIN

Shifter Shimano Deore M4100, 10 speed

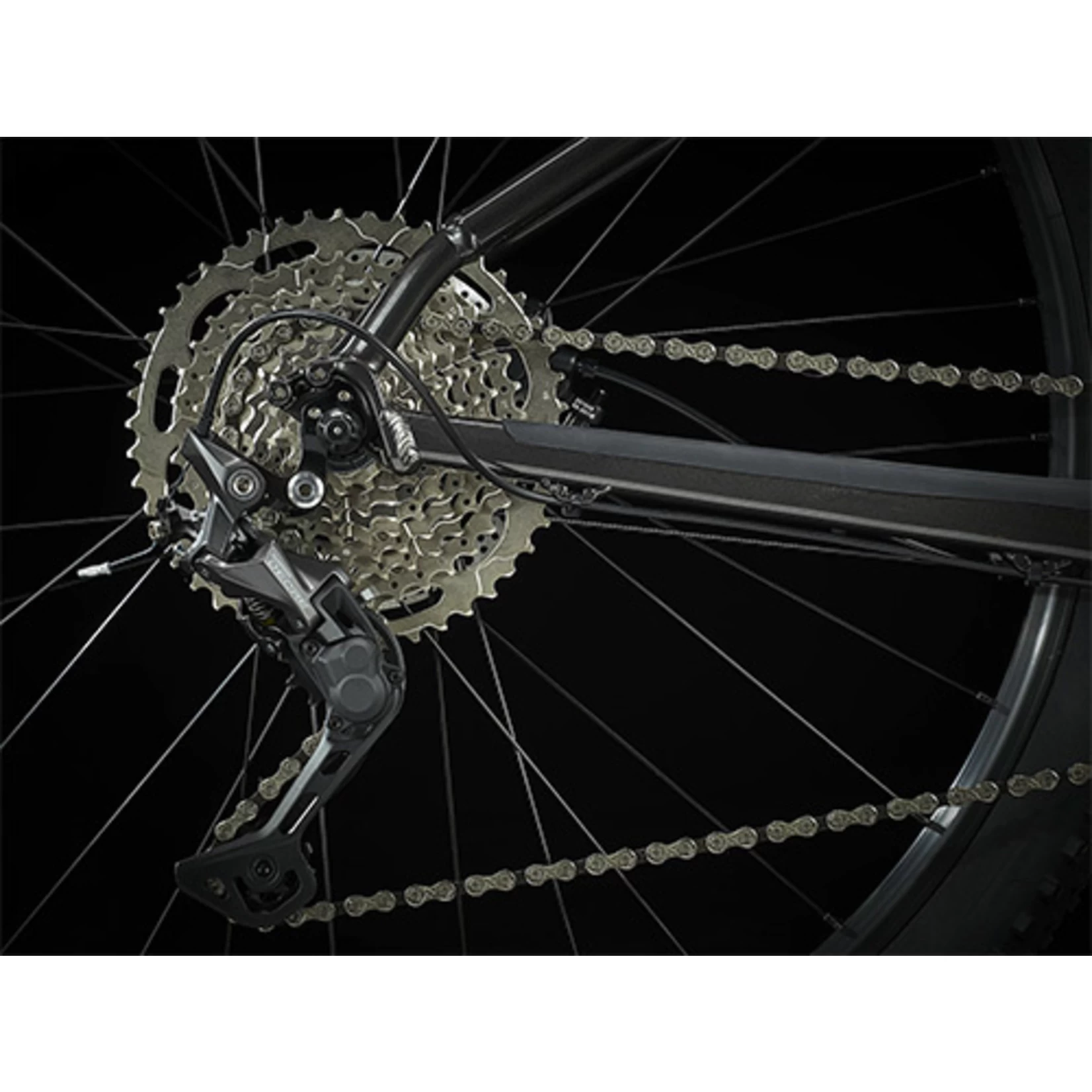

Rear derailleur Shimano Deore M5120, long cage

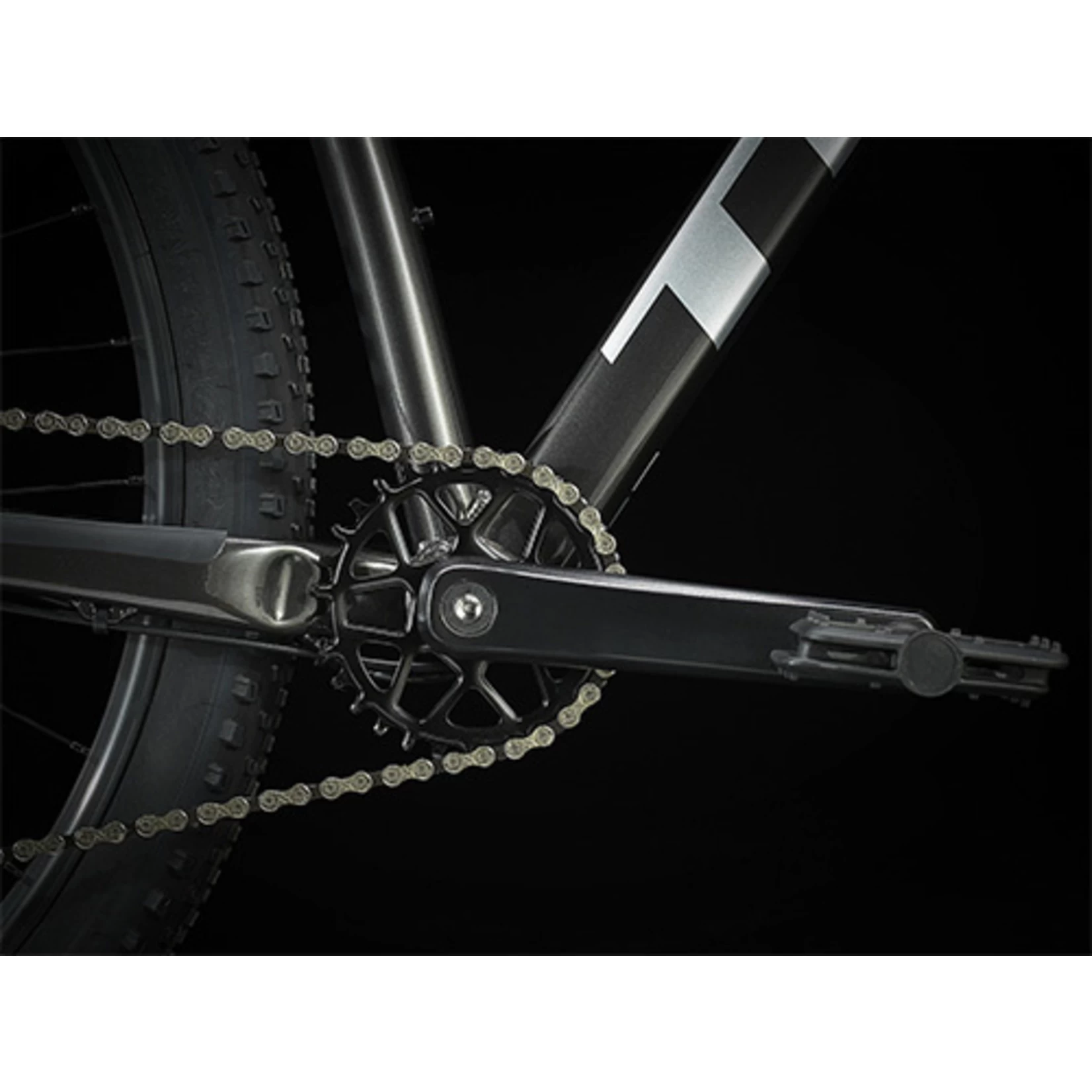

Crank Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
Bottom bracket Sealed cartridge, 73mm
Cassette Shimano Deore M4100, 11-46, 10-speed
Chain KMC X10, 10-speed
Pedal VP-536 nylon platform
Max. chainring size 1x/2x: 34T, 3x: 42T

COMPONENTS

Saddle Bontrager Arvada, steel rails, 138 mm width
Seatpost Size: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
Handlebar Size: XS

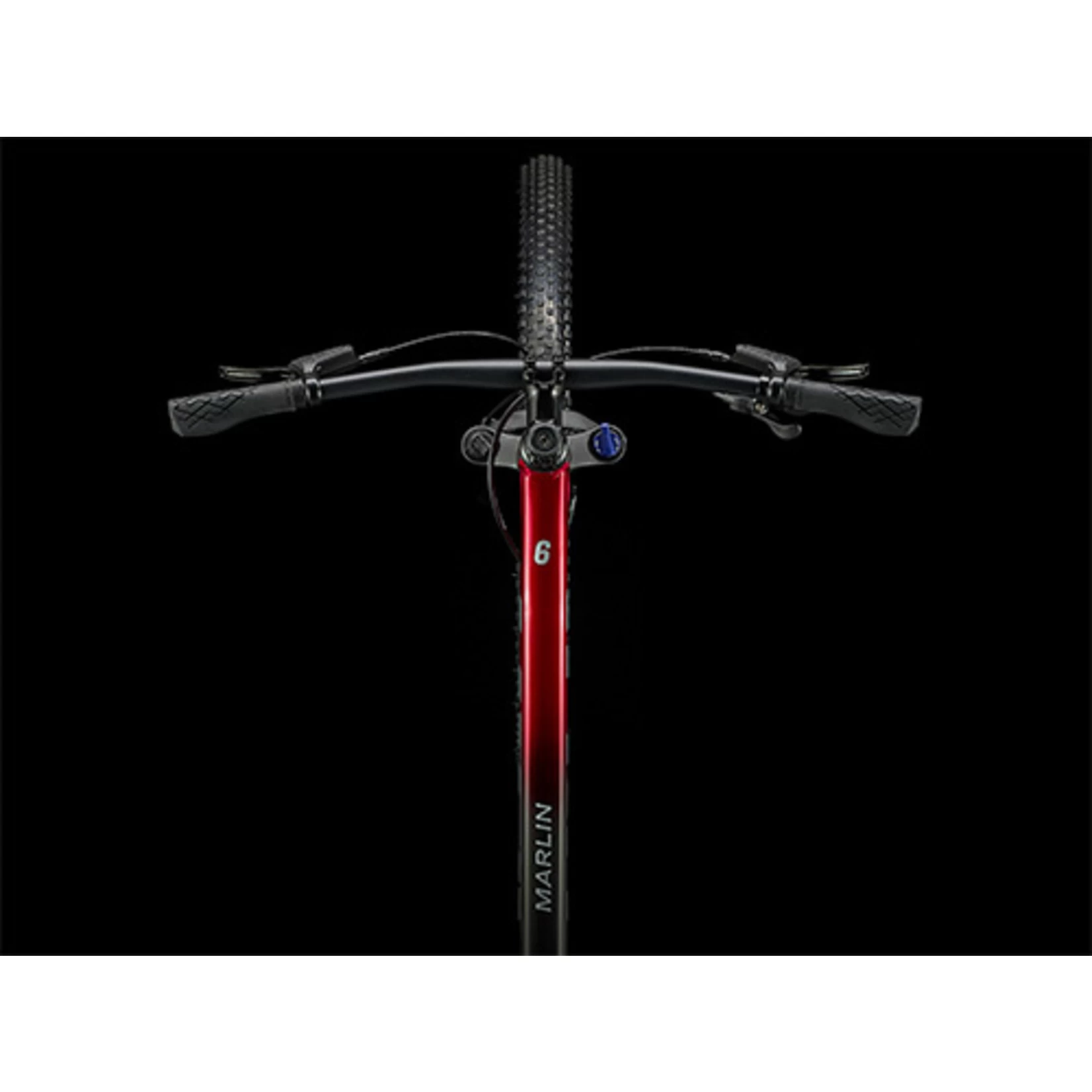

Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips Bontrager XR Endurance Comp
Stem Size: M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Size: ML , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Head set Semi-integrated, 1-1/8″

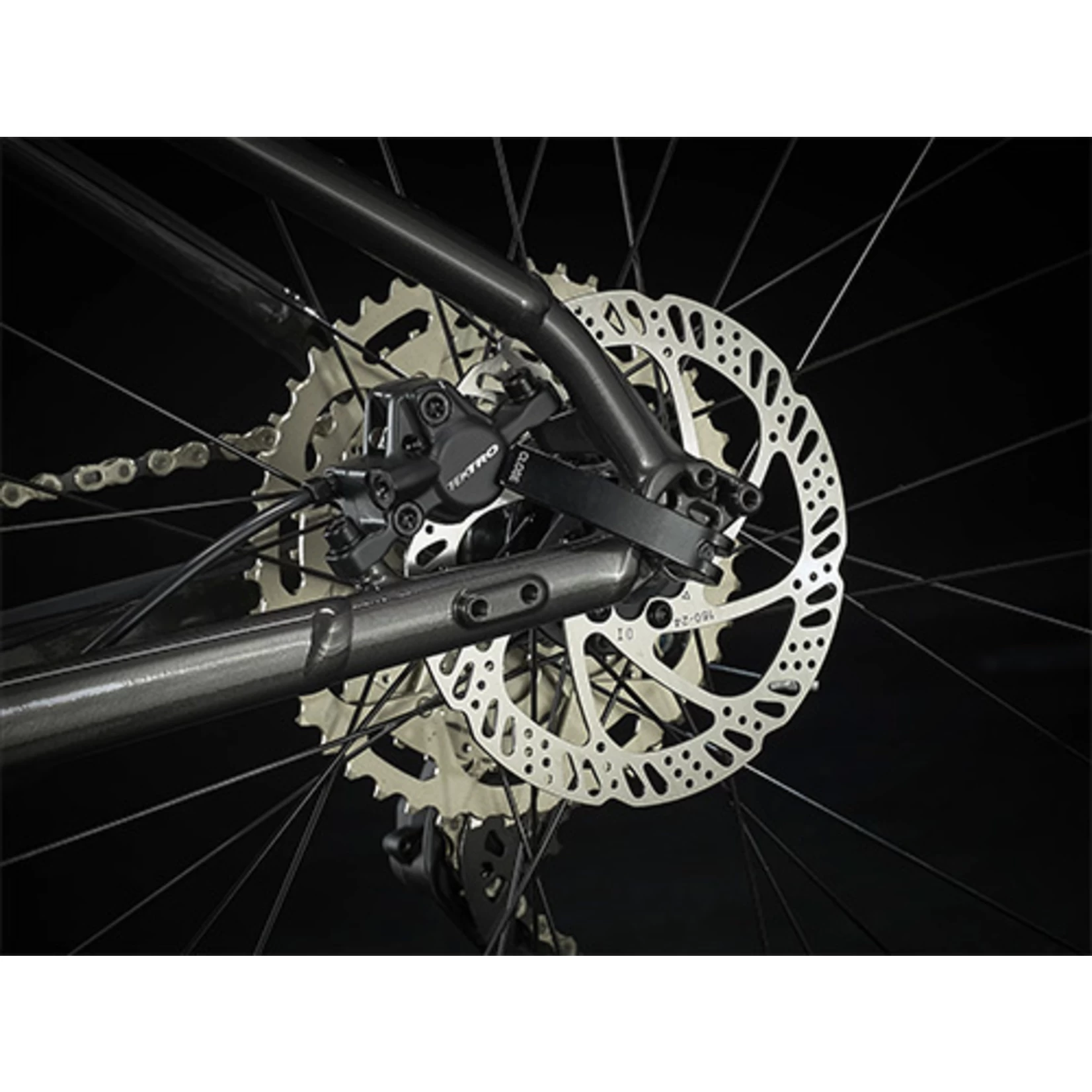

Brake Tektro HD-M275 hydraulic disc, 180 mm rotor
Brake Set Tektro HD-M275 hydraulic disc, 160 mm rotor
